Concrete mixer double horizontal shafts auto concrete mixing machine
- 1000 Set / Sets per Month
- qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Mixer Type: | Screw | Application: | Powder |
Additional Capabilities: | Milling | Place of Origin: | Henan, China | Brand Name: | shuangying |
Model Number: | SYSZ3000*650 | Max. Loading Capacity: | 1200L | Voltage: | 380V |
Power(W): | 22kw | Dimension(L*W*H): | 4700*800*620mm | Certification: | ISO |
Warranty: | 1year | After-sales Service Provided: | Overseas service center available |
Product Description
Introduction:

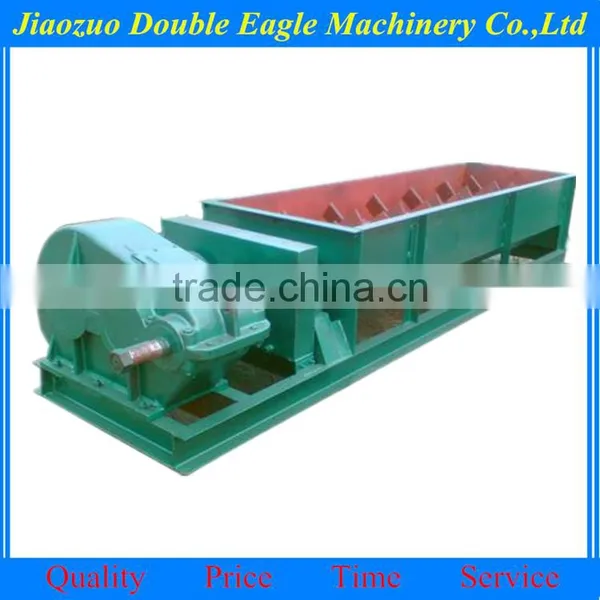

Double-shaft Charcoal mixer mainly consists of casing, spiral shaft assembly, drive equipment, piping, cover plate, chain cover and other parts(see the ramdom for figure), the concrete structure performance characteristics are as follows:
the shell is mainly composed of plates and steel structure, welding forming within the manufacturing plant, and compares with other parts together, dualaxis mixer is supported. Shell sealed tight, there would be no fly ash or ash leakage to the publish, and no ash leakage phenomenon, either.
Technical parameter:
Model | Output | Speed | Motor | Machine size | Machine weight |
SYSZ2000*500 | 10-12T/h | 35r/min | 11KW | 3100*750*500mm | 1600kg |
SYSZ2500*650 | 15-20T/h | 35r/min | 15KW | 4200*800*620mm | 2500kg |
SYSZ3000*650 | 20-25T/h | 35r/min | 22KW | 4700*800*620mm | 3200kg |
SYSZ3500*700 | 25-30T/h | 35r/min | 30KW | 5000*900*620mm | 3600kg |
SYSZ4000*800 | 30-40T/h | 35r/min | 37KW | 5800*970*640mm | 3850kg |
