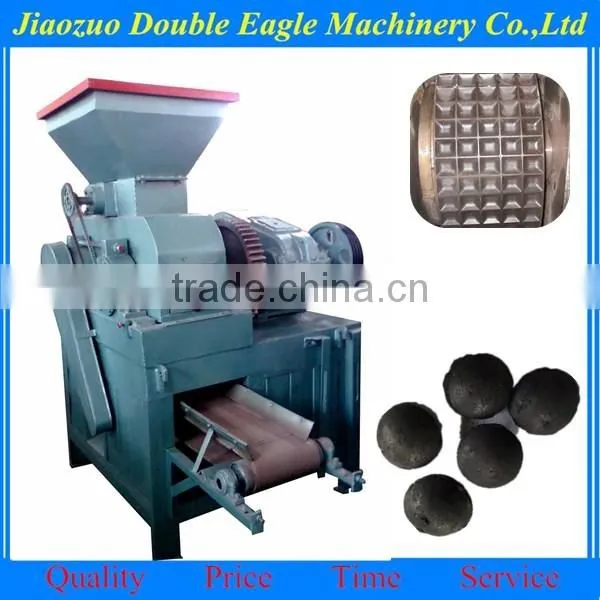

Carbon Powder Ball Press Machine/ Coking Coal Ball Press Machine

Carbon Powder Ball Press Machine/ Coking Coal Ball Press Machine photo-1
US$ 1,000 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
shuangying
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name shuangying
Model Number SYYQ360
Voltage 380V
Power(W) 7.5KW
Weight 1200kg
Dimension(L*W*H) Burner Size
Certification CE ISO
Warranty One Year
After-sales Service Provided Overseas service center available

Introduction:

Coal ball press machine also is called coal powder press ball machine which can press variety powder or particle mineral powder into globular, elliptical, oval shape etc. The powder can be Iron ore powder, iron powder, fluorite powder, silicon powder, aluminum powder, magnesium powder. So this machine is a kind of energy conservation and environmental protection good machine.

The machine’s roll skin uses  65 manganese casting. After special heat treatment hardness can reach more than 58 degrees. Roll skin adopts combined assembly and can be replaced after wear and tear.

Also the machine has a buffer device and can better protect equipment  from hard object impact.



Structure:

1. Feeding part: can reach quantitative feeding to ensure material evenly into the space of rollers.

2. Transmission part: motor-Triangle Strip-reducer-exposed gear-roller

3. Forming part:rollers



Technical parameter:

Model

SYYQ290

SYYQ360

SYYQ400

SYYQ500

SYYQ650

SYYQ750

SYYQ850

Power

5.5-7.5KW

7.5KW

11KW

18.5KW

37-45KW

45-55KW

75KW

Output

1-2T/H

3T/H

4T/H

6-8T/H

22T/H

30T/H

40T/H

Roller diameter

290mm

360mm

400mm

500mm

650mm

750mm

850mm

Weight

1000kg

1200kg

1450kg

2800kg

3700kg

8700kg

9800kg

carbon powder ball press machine/ coking coal ball press machine
carbon powder ball press machine/ coking coal ball press machine

carbon powder ball press machine/ coking coal ball press machine

carbon powder ball press machine/ coking coal ball press machine
