desktop nfc readers1. Power on USB
2.Portable,0.25kg
3. ISO14443A
4. EM-ID 125 KHz/13.56Mhz

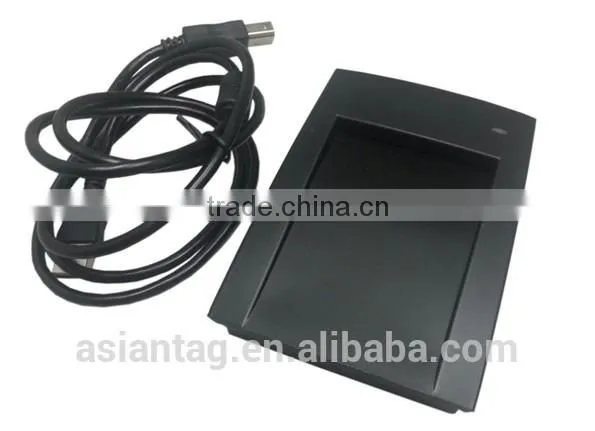

USB portable desktop nfc readers
Product Introduction
l USB-Reader plug & play reader/writer device is one type simple, easy to operate, stable, low cost, and high performance
l 125K/13.56MHz contactless IC card reader/writer, it's able to read and write MifareS50 tag,S70 tag(ISO14443A), 2nd generation identify ID(ISO14443B),TI ICODE2(ISO15693),adopt with advanced plug & play, USB port without driver

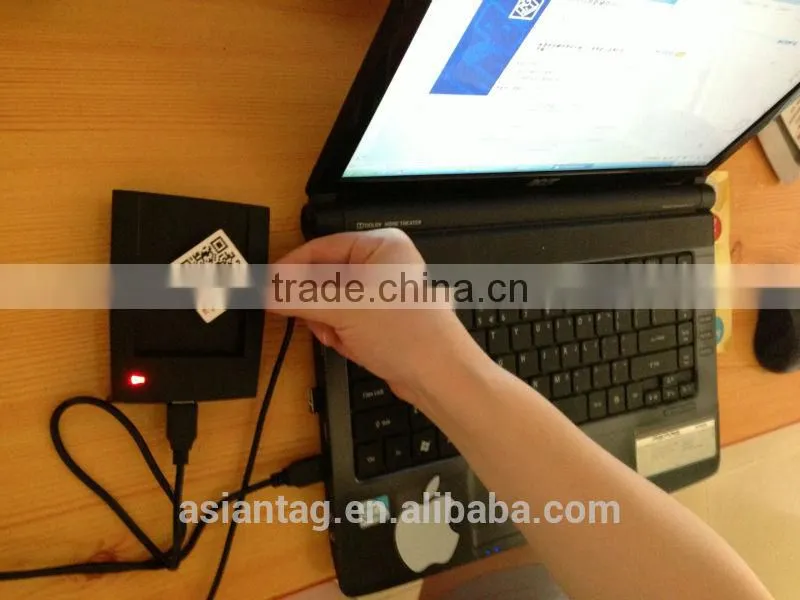

l core technology(HID Protocol). Reader connect with PC through USB port, no USB driver request and easy for user to operate and maintain. Reader embedded with "watchdog" circuit to control the reliable working, this device
l support ISO14443 TYPEA/B ISO15693 protocol contactless IC tag. Reader supply along with many different platforms drive development kit and demo program for operate RF tag all functions. Further more this device has function of automatically detect tag operation. Supply various types of interface DLL (dynamic link library DLL) and development platform drive SDK, Demo Program.
R/W chip |
Mifare S50, Mifare S70,Mifare Ultralight, ICODE SLIE etc. |
Standard |
ISO/IEC 14443-A,ISO/IEC 14443-B,ISO/IEC 15693, |
Frequency |
13.56MHz |
Speed |
106Kbit/s |
Baud Rate |
9600-115200(configurable, default rate 9600) |
Power supply |
DC 5V(±5%) |
Current |
<100Ma |
Operating range |
30-100mm(Depend on Card/Tag shape, manufacturer) |
Interface |
USB/RS232/PS2 |
Expand I/O port |
N/A |
Indication light |
1 DUAL LED,1 BUZ |
Working temperature |
-10 ~ +70 degree |
Storage temperature |
-20 ~ +80 degree |
Max. humidity |
Relative humidity 0 ~ 95% |
Size |
100mm × 100mm × 30mm |
Support |
Provide protocol SDK free,DEMO program |
