USB 13.56mhz nfc reader writer

Specifications

13.56mhz nfc reader writer
1. Power on USB
2.Portable,0.25kg
3. ISO14443A
4. EM-ID 125 KHz/13.56Mhz

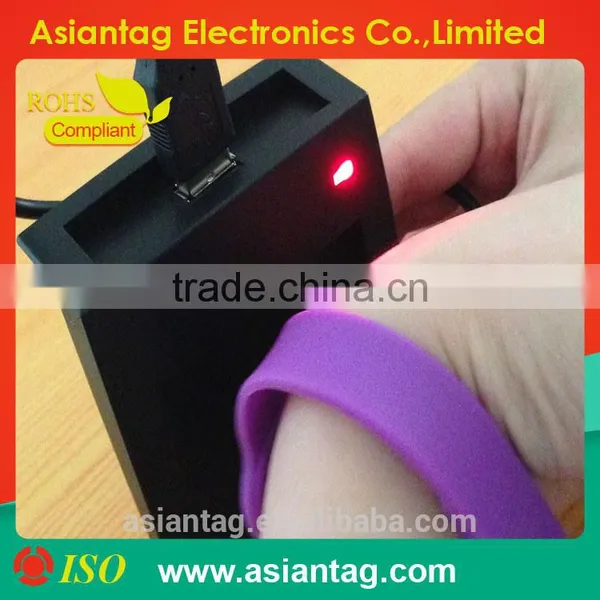

 USB portable 13.56mhz nfc reader writer





Product Introduction



l  USB-Reader plug & play reader/writer device is one type simple, easy to operate, stable, low cost, and high performance



l  125K/13.56MHz contactless IC card reader/writer, it's able to read and write MifareS50 tag,S70 tag(ISO14443A), 2nd generation identify ID(ISO14443B),TI ICODE2(ISO15693),adopt with advanced plug & play, USB port without driver



l  core technology(HID Protocol). Reader connect with PC through USB port, no USB driver request and easy for user to operate and maintain. Reader embedded with "watchdog" circuit to control the reliable working, this device



l  support ISO14443 TYPEA/B ISO15693 protocol contactless IC tag. Reader supply along with many different platforms drive development kit and demo program for operate RF tag all functions. Further more this device has function of automatically detect tag operation. Supply various types of interface DLL (dynamic link library DLL) and development platform drive SDK, Demo Program.



R/W chip	Mifare S50, Mifare S70,Mifare Ultralight, ICODE SLIE etc.
Standard	ISO/IEC 14443-A,ISO/IEC 14443-B,ISO/IEC 15693,
Frequency	13.56MHz
Speed	106Kbit/s
Baud Rate	9600-115200(configurable, default rate 9600)
Power supply	DC 5V(±5%)
Current	<100Ma
Operating range	30-100mm(Depend on Card/Tag shape, manufacturer)
Interface	USB/RS232/PS2
Expand I/O port	N/A
Indication light	1 DUAL LED,1 BUZ
Working temperature	-10  ~ +70 degree
Storage temperature	-20  ~ +80 degree
Max. humidity	Relative humidity 0 ~ 95%
Size	100mm × 100mm × 30mm
Support	Provide protocol SDK free,DEMO program
