New Spiral Dough Mixer

New Spiral Dough Mixer photo-1
New Spiral Dough Mixer photo-2
New Spiral Dough Mixer photo-3
New Spiral Dough Mixer photo-4
New Spiral Dough Mixer photo-5
New Spiral Dough Mixer photo-6
US$ 2,000 - 8,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, gluten, Grain Processing Equipment
Production Capacity:
150kg/h
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Qingdao or according to the customers' request
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other, gluten, Grain Processing Equipment
Production Capacity 150kg/h
Place of Origin Henan, China
Brand Name Fangrui machine
Model Number 200
Voltage 220V
Power(W) 3kw
Dimension(L*W*H) 1300*600*960
Weight 169kg
Certification CE ISO, ISO CE
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas

New spiral dough mixer



Product Description

 1) The dough washing machine is an advanced equipment designed by our factory through constantly researching and improvement.
2) The processed gluten and thin pastry are delicious and convenient to be cooked, so it won the high reputation from customers
3)The dough washing machine combine dough kneading, washing, separate gluten in one, with high efficiency, wash clean, the effect is good such advantage.

New spiral dough mixerNew spiral dough mixerNew spiral dough mixer

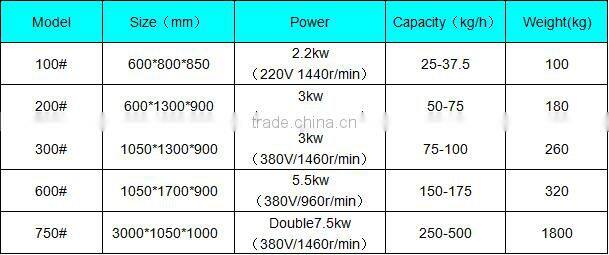

Main Parameter

New spiral dough mixer



Manufacturing processes of the dough washing machine



1.First,put the water into the hopper,then put the suitable flour into the hopper ,mix them together.

The water and flour ratio is 0.6-0.7/1,it means ,if you want to put 25 kg flour,you need put

15kg water.
2.The first mixing time is total 12 mintues,,must be clockwise rotation about 5-6 minutes,

 then reverse about 5minutes, then stop to make the dough keeping a moment with a wet cloth

or plastic wrap if you have





 3.The dough will keep a moment,generally for not less than 12 minutes.





4.After 12 minutes, put 15 kg water into the hopper again,then open the machine to work

about 3 minutes,then stop,let the flour batter flow through the hole of machine.
5.The machine moved to points,connect the filter on the hopper when let the flour batter flow .





6.second washing time will be not more than 5 minutes.As per the 4 and 5,can repeat

 about two or three times ,then can get the gluten finally.Please clean the hopper after get the

gluten out from the hopper.

New spiral dough mixerNew spiral dough mixerNew spiral dough mixerNew spiral dough mixerNew spiral dough mixerNew spiral dough mixer


Packaging & Shipping



Generally,we adopt standard containers, bare main machine, motors and small parts are packed in wooden cases Or depend on your demands.

1. Waterproof packing with the international export standard by 20ft, 40ft, 40hp container. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.

2.The whole plant machinery size are large as normal, so we will use Waterproof cloth to pack all of them. The motor, gear box or other easily damaged parts, we will put them into box. We have a professional shipping department, they will try them best to save your container quantity.

New spiral dough mixer

Our Services



Pre-sale service
Help you to choose gluten machine, design
 gluten machine according to your special requirements, answer your questions timely and effectively.


On-purchase service
We will accompany with you to complete the acceptance of the
 gluten machine, assist to draft the construction scheme and detailed process.


After-sales service

If you have any questions for the machine just let me know feel free, by email, phone, whatsapp etc, we will reply you in shortest time.

New spiral dough mixer
