Specifications
1.High performance quality-ISO 9001;2.Easy operation and maintenance;
3.High recovery rate;
4.Long service life.

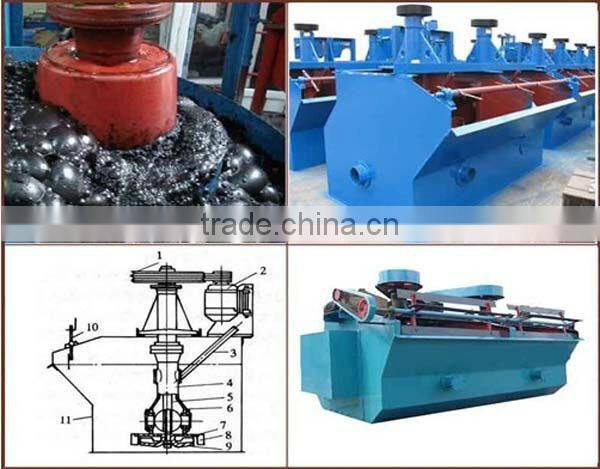

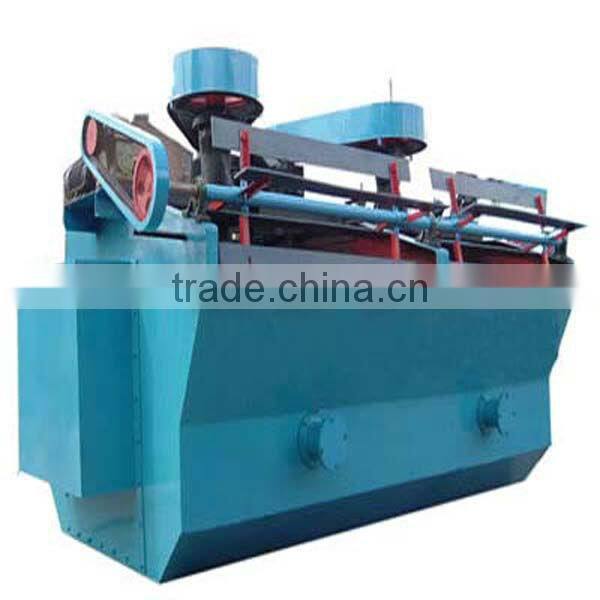

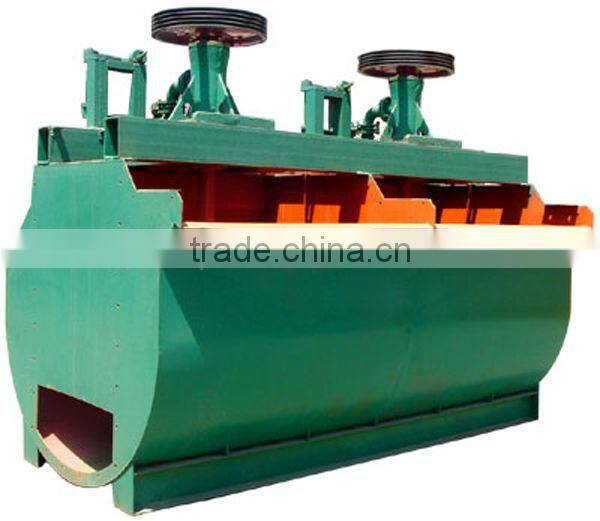

High-efficiency sf flotation machine
Flotation gold mining equipment introduction:
Fotation gold mining eauipment is applicable for the separation of nonferrous metal and ferrous metals, such as fluorite and talc. The impeller is driven by V-belts, which can bring the centrifugal effect to form negative pressure. While extracting sufficient air to mix with ore pulp, the machine stirs ore pulp and mixes it with chemicals to form mineralized froth. By adjusting the height of the flash board to control the liquid level, the useful froth can be scraped from the loam board.
Flotation gold mining equipment working principle:
When the gold mining equipment works, the motor drives the impeller to revolve, so the centrifugal effect and negative pressure are produced. On one hand, ample air is absorbed and mixed with mineral slurry, on the other hand, the mixed mineral slurry is mingled with additive, meanwhile, the foams are thinning, the mineral is bounded with foams, and floats up to the surface of mineral slurry and the mineralized foam is formed.
Features of Yuhong flotation machine:
♣Large inhaling capacity and low consumption.
♣ Reasonable circulation of slurry decreases coarse sand sedimentation.
♣ Automatic controlling device makes adjustment more convenient.
Parameters:
| Model | Single effective volume(m3) | Slot internal size(mm) | Capacity(m3/min) | Motor Power(kw) | Weight(kg) | |
|---|---|---|---|---|---|---|
| Model | Motor Power | |||||
| XJ-1.1 | 1.10 | 1100×1100×1000 | 0.6-1.6 | Y132M2-6 | 5.5 | 1450 |
| XJ-2.8 | 2.80 | 1750×1600×1100 | 1.5-3.5 | Y160L2-6 | 11 | 2340 |
| XJ-5.8 | 5.80 | 2200×2200×1200 | 3.0-7.0 | Y200L2-6 | 22 | 3560 |
| XJ-8 | 8.0 | 2600×2600×1300 | 4.0-8.5 | Y200L2-6/Y250M-8 | 22/30 | 4350 |
| XJ-10 | 10.0 | 2900×2700×1400 | 5.0-10 | Y200L2-6/Y250M-8 | 22/30 | 4960 |
| XJ-16 | 16.0 | 2400×3100×1600 | 8.0-13.5 | Y250M-8 | 30 | 8540 |
| XJ-20 | 20.0 | 3600×3400×1700 | 10.0-17.0 | Y280S-8 | 37 | 8720 |
