Home > Products > Grinding Mill > YUHONG Good quality and low price grinding raymond mill
YUHONG Good quality and low price grinding raymond mill
- 50 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | Type: | Raymond Mill | Motor Type: | AC Motor |
Capacity(t/h): | 2-25T/h | Place of Origin: | Henan, China | Brand Name: | Henan Yuhong |
Model Number: | 3R2615 | Dimension(L*W*H): | 5970*4000*5000 | Weight: | 3800kg |
Certification: | CE certification, ISO9001 | Warranty: | one year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Grinding Raymond Mill:1.fineness adjustable
2.uniform granularities
3.easy to maintain
4.Stable performance
Grinding Raymond mill Introduction:
Granding Mill is used to grind materials in the fields of building materials, mining, metallurgy and chemical industry. The materials must be non-flammable and non-explosive materials such as: limestone, calcite, barite, dolomite, potassium feldspar, marble, talcum, gypsum, kaoline, medical stone, rock phosphate, manganese ore, iron ore, glass, ceram, active carbon, carbon black, fireproof materials, heat preservation materials, chemical materials and so on(300 kinds of materials). The materials should have the hardness less than 7 in Moh's scale and humidity less than 6 percent. The granularity of the end products can be adjusted from 30 to 325 meshes.
Features of raymond mill:
1.widely used for various industries,such as mining, metallurgy, chemical, construction industries
2.fineness of final products,80-425 meshes(Min.1000meshes)
3.being equiped particular parts, it can produce coarse powders from 30-80 meshes
4.high efficiency&low power consumption
5.easy operation&maintenance
6.reliable working condition
Working principle:
Firstly, raw material is crushed by jaw crusher to the size required, and then the crushed materials are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder, evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind.
After this, the ground stuff is carried by the air from the blower into the separator for screening. The fine powers are blow into the cyclone collector and are poured out through the output-powder valve as the final products and the rough stuff after the screening will be recycled back into the grinding chamber for regrinding. The set’s airflow system is closely sealed up and circulated under condition of negative and positive pressure.

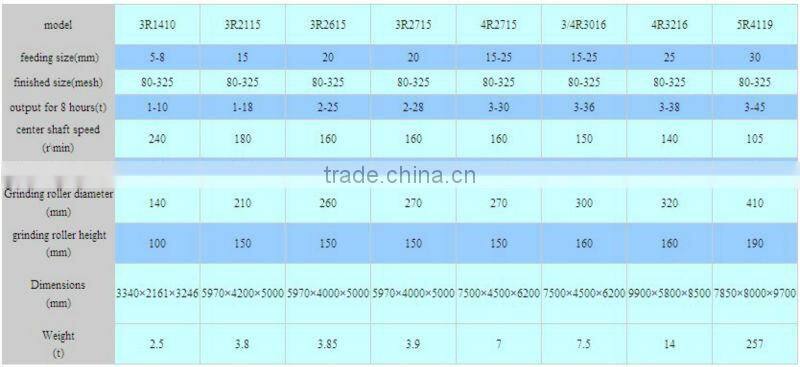

Raymond mill technical parameters:
Contact Us
- Henan Yuhong Heavy Machinery Co., Ltd.
- Contact nametomy feng
- Phone0086-0371-86688302
- AddressNo.97,West Dongqing Road , National High-tech Development Zone Zhengzhou,Henan
