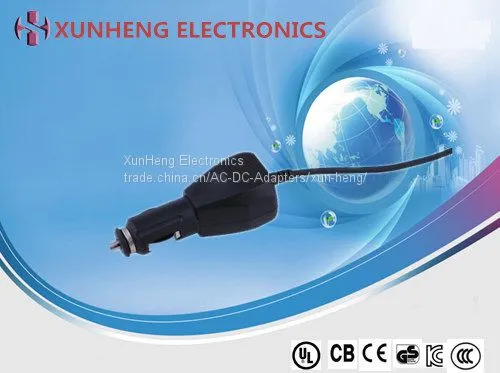

36W OEM/ODM customized design car charger, USB output type or power cord output type

Applications

IC control circuit, apply to the GPS, mobile phone, laptop computers and iPad, game consoles and more

Product characteristics

• Safety approval of CCC, CB, ETL, CE, GS , BS, KC, SAA, PSE

• Low standby power consumption, meet the energy efficiency standards of EU CoC V5 and US DoE VI/CEC VI (6)

• Accept customization of specification, USB output type or power cord output type.



Electrical characteristics

• Input voltage: 12-24V

• Input current:　1.0A Max.

• Output voltage: 3.0-24V

• Output current: 0.1-2.0A

• Efficiency: 87% min

• Ripple & noises: 120mV max

• Line regulation: ± 1%

• Load regulation: ± 5%


Output protections

• Short circuit protection

• Over voltage protection

• Over current protection



Environmental characteristics

• Insulation resistance: 10M Ω min.

• Leakage current: 0.25mA max.

• Operating temperature: 0-40℃

• Storage humidity: 5-95%RH

• Burn-in test: Rate Load, 40±5℃，4 hours
