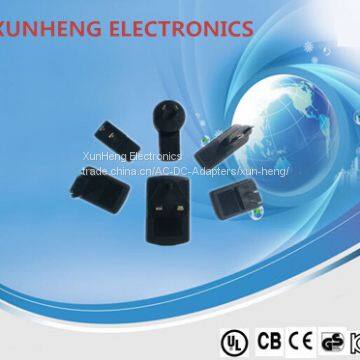

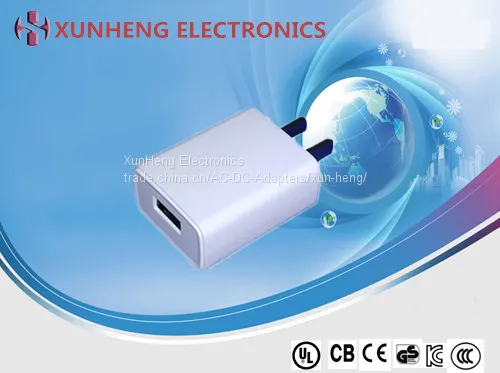

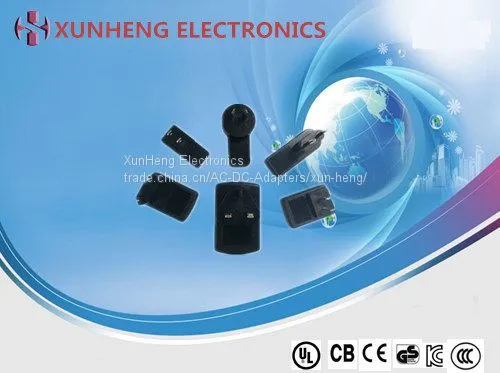

0-6W OEM/ODM Power Supply USB Charger Adapter for Mobile Phone and Other Electronic Products

Applications:

Digital communication products, Bluetooth products, cell phone chargers, battery chargers, electric toys charger, TV box power, CD machine, hub router, communication terminal equipment, testing equipment, portable equipment, LED lighting, instruments and meters, massage beauty equipment, security products, monitoring system, ebooks

Product characteristics:

• Port: USB port (accept customization)

• Colors: black, white (accept customization of other colors)

• Shell materials: PC or PC + ABS (eco-friendly, fireproof, nontoxic)

• Safety approval of CCC, CB, ETL, CE, GS, BS, KC, SAA, PSE

• Low standby power consumption, meets the energy efficiency standards

• of EU CoC V5 and US DoE VI/CEC VI (6)

• Customization: EU standard, American standard, British standard, Australia standard, Korean Standards, Chinese standard


 Electrical characteristics:

• Input voltage: 100-240V AC (90-264V AC)

• No-load power consumption: <0.1W max

• Output voltage: 4.2 to 6.0V DC

• Output power: 0 to 6W

• Constant-current output: constant voltage output or automatic switch between constant voltage and constant current

• Ripple and noises: <200mV max

• Lightning surge: up to 1kV (accept 3kV)

• Common specifications: 5V DC/0.5A, 5V/1.0A, 5V/1.2A

Output protections:

• Short-circuit protection

• Over-voltage protection

• Over-current protection

• Over-temperature protection

 Environmental characteristics:

• Hi-pot test: 3750V AC 60s 5mA max

• Insulation resistance: 100m Ω minute

• Leakage current: 0.25mA max

• Operating temperature: 0 to 40°C

• Storage humidity: 5-95% RH

• Burn-in test: rate load, 40 ±5°C, 4 hours

• EMC standard: EN55022 class B/FCC part 15 class B

• EN55024/A1: 2001/EN61000
