Specifications
Mobile wood pellet line4.5 t/h pellet
6-10 mm
90 kw
High capacity wood pellet making line

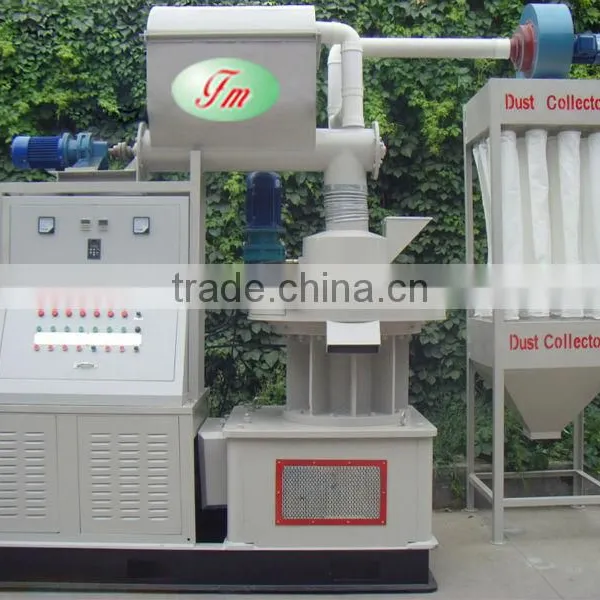

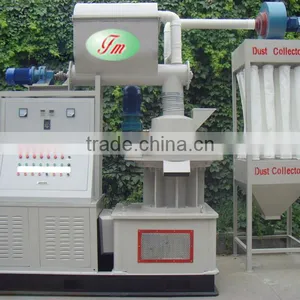

I.Big wood pellet line :
1.Wood pellet machine is an automation equipment,wiith automatic oil -supply device ,which can save a lot maintenance time.

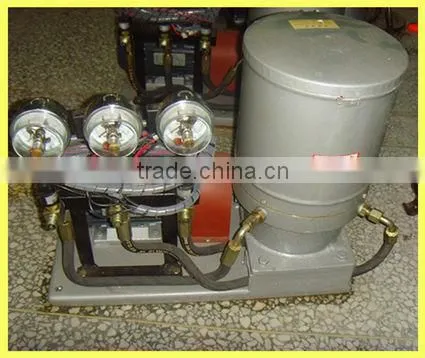

Grease pump
2.Biomass pellet machine can forming with moisture less than 10%.
3.With high accuracy specification,simple structure, easy operation, high automation,save labor,mold and gear are made of stainless steel.
II.Specification of big wood pellet line
Model |
Power |
Automatic device |
Capacity |
Weight |
Dimention |
MXKJ-9S-1 |
55kw |
6.7kw |
0.8-1 t/h |
3t |
2.2*1.2*2.5m |
MXKJ -9S-2 |
75kw |
6.7 kw |
1-1.2 t/h |
3.5t |
2.4*1.2*2.5m |
MXKJ-9S-3 |
90kw |
6.7 kw |
1.2-1.5 t/h |
4t |
2.6*1.3*2.5m |
Spare parts |
Mold and Gear |
||||
Mold |
1.Ring die 2.Stainless steel 3.Two stairs |
Gear |
1.Stainless steel 2.Two pcs |
||
Material |
1.Material ≤6mm 2.Moisture ≤15% |
Pellet |
1.φ8mm, φ9mm or customed 2.Length :Adjusted 3.3500-5500 KC |
||
III.Working principle and process detail:
1.Material come from belt conveyor and then into the storage,screw conveyor feed material automaticllly to the pellet forming chamber
2.In the forming chamber ,two gear and mold help to form and press pellet,Gear rotate to press pellet come out surround.
3.Automatic cutting machine arround the mold ,which can cut pellet automaticly,it can also adjust the length of pellet .
4.During the process ,the oil supply device can lubricate the gear and mold.
IV. Raw material required:
1.All kinds of biomass material,or farm waste ,such as cotton stalk,corn straw,wheat straw,sawdust,peanut shell,rice husk,animal manure.
2.Moisture:10%,6mm
V. Pellet features
1.Pellet is new-style energy which is renewable, environmental protection,it is also clean and low cost.
2.Pellet (biomass briquette,biomass pellet,wood pellet) is widely used in heating, biomass boiler, household gasification furnace, industrial boiler, hotels, restaurants, bath in industries as heat source,instead of coal in boiler burning,avoid the pollution of burning the coal ,also being used as industial fuel.
3.High density from 0.9-1.6g/cm3,easy to store and transportation,Calorific value can be 3500-5500Kilocalorie.
4.Biofuel can instead of coal for biomass power generation.
VI.Detail of Spare parts:
Mold
VII.Our advantage:
1.Long history in wood pellet machine and biofuel briquette machine making,has export to more than 20 countries.
2.Our product with high automation which can save labor,and it is also easy to maintenance ,save a lot of maintenance time.
3.Our machine is flat location stainless steel ring die mold and gear,which is different from Vertical location ring die machine ,which has a good performance.

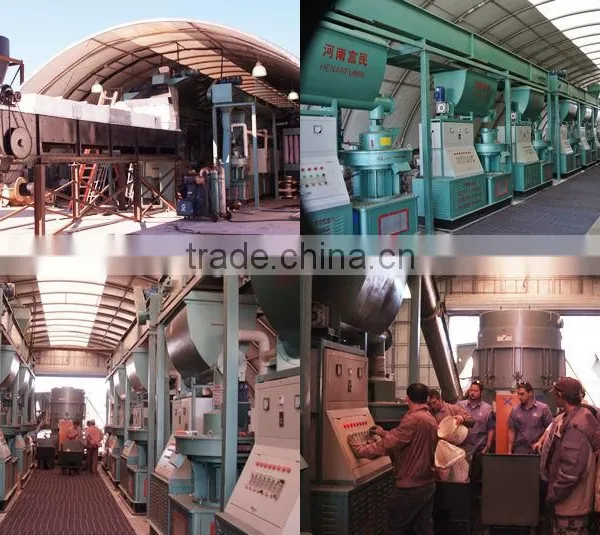

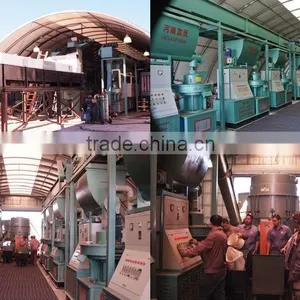

VIII.Complete wood pellet production line
1.Crushing process:
Wood crusher which can crushed the raw material into sawdust shape ,under 6mm,which is suitable for the dryer and pellet machine.It can crush straw,stalk,tree branches,nutshell,wood shavings,wood waste board,leaves,palm fiber ,etc.
2.Dring process
Air flash wood dryer or drum wood dryer which can dry the material under the moisture of 8%,which is suitable for pellet forming.The dryer use hot air accompany with material and evaporated rapidly .
3.Wood pellet maker:
Mobile wood pellet line can convert the biomass material into pellet ,the length can be customed.
4.Cooling process
You can use a cooling fan or cool it by nature about half or one hour,or cooled pellet by cooler machine.
5.Packing and bagger:
After cooling the semi-automatic quantative packing machine can pack the pellet into bag with quantative weight.

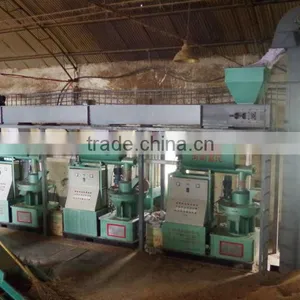

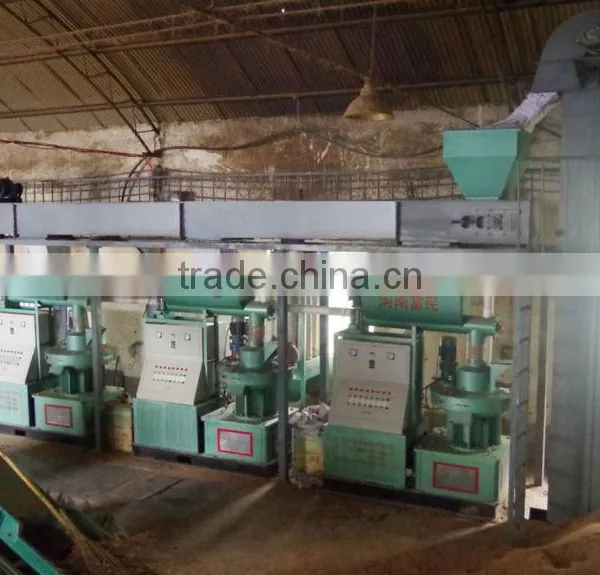

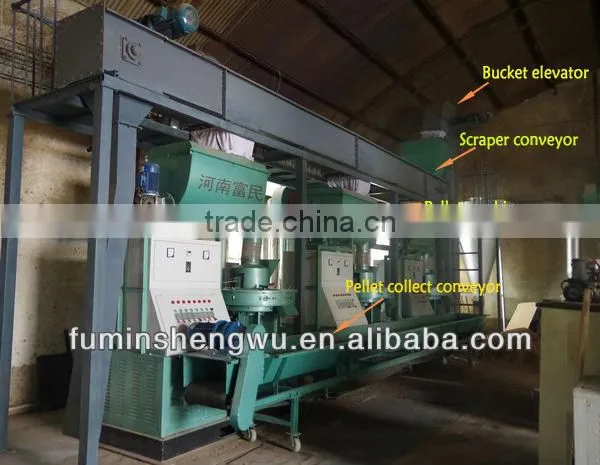

Wood pellet machine line Include :
1.Bucket elevator (Lift the sawdust to the scraper conveyor)
2.Scraper conveyor(Divide the sawdust to three pellet machine)
3.Pellet machine(Produce wood pellet)
4.Collector belt conveyor(Collect the pellet and convey it to storage)
5.Dust collector (Make sure the working condition without dust)
6.Capacity of three MXKJ-9S-3 is 4.5t per hour when produce 8mm pellet
Capacity of three MXKJ-9s-1 is 3t per hour when produce 8mm pellet
America customer visit and India customer
Big wood pellet line is high-tech machine,welcome to have a further understood.
