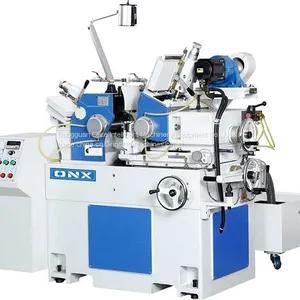

Centerless Grinding Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Brand Name:

ONX

Place of Origin:

China

Model Number:

ONX--12/12NC

Dongguan Olice Intelligent Machinery Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

30 days

Brand Name ONX

Place of Origin China

Model Number ONX--12/12NC

Type Universal

Certification CE

After-sales Service Provided Overseas service center available

Weight 2200kgs

Dimension(L*W*H) 2260*1950*1820MM

Condition New

CNC or Not Normal

Max. Grinding Length 80mm

Max. Grinding Diameter 80mm

SPECIFICATIONS	ONX-12/12NC	ONX-I8/18CNC	ONX-20-20CNC	ONX-24/24CNC
Max grinding diameter （Standard rest）	Ø1-30mm	Ø1 ~ Ø80 mm	Ø1 ~ Ø80 mm	Ø1 ~ Ø80 mm
Max grinding diameter （sepcial rest）	Ø30-50mm	Ø80-100mm	Ø80-120mm	Ø80-150mm
CN speed		0.001-99.999mm
Grinding wheel sie (O.D. x width x I.D.)	Ø305 x 150 x Ø120	Ø455 x(205/255/305) x Ø228.6mm	Ø508 x(205/255/305) x Ø304.8mm	Ø610 x(205-500) x Ø304.8mm
Grinding wheel speed	1900 R.P.M	1520 R.P.M	1350 R.P.M	1050 R.P.M
Trimming wheel speed (min/mm)	0.04mm	0.02/mm/2mm
Regulating wheel size (O.D. x width x I.D.)	Ø205 x 150 x Ø90	Ø225 x( 205/255/305) x Ø112.2mm	Ø305x( 205/255/305) x Ø127mm	Ø305x( 205-500) x Ø127mm
Regulating wheel speed	15~ 310 R.P.M. (Variable)	13~ 308 R.P.M. (Variable)	13~ 308 R.P.M. (Variable)	10~250 R.P.M.(Variable)
handwheel (min/mm)	0.04mm	0.05mm	0.05mm	0.05mm
handwheel speed (mm/min)	4mm	3.5mm	3.5mm	3.5mm
fine-tune handwheel mm		0.001mm	0.001mm	0.001mm
fine-tune handwheel speed mm		3.5mm	3.5mm	3.5mm
wheel swivel angle		±5°
wheel tilt angle （A/P)	0.02mm	±5°~ -3°
Trimming wheel speed (mm)		0.01mm	0.01mm	0.01mm
Trimming wheel speed (min/mm)	0.02mm	2mm
Lower hand feed handwheel （min/mm	7mm	0.05mm	0.05mm	0.05mm
Lower hand feed handwheel speed(mm		9mm	9mm	9mm
Trim feed handwheel(min/mm		0.001mm
Trim feed handwheel speed (mm	7.5HP/10HP	0.2mm
Grinding wheel motor		15HP/20HP	20HP/25HP	20HP/30HP
Hydraulic pump motor	1KW	1HP
Regulating servo motor	1800KG	1.5KW	1.5KW	1.5KW
Net weight	2200KG	3300KG	3400KG	6100KG
	2260x1950x1820mm	2700x2240x1850mm	2700x2240x1850	3060x2240x2070mm
