Computer Control High Speed 2400mm A4 Paper Making Machine/ 12T Per Day Capacity A4 Paper Machine
Skype ID: hwasong03
Technical Specification
Output: A4, A3 paper, writing paper
Paper weight: 50-90gsm
Paper width: 2400mm
Cylinder width: 2800mm
Design speed: 150m/min
Working speed: 60-110m/min
Capacity: 10-12T/D
Gauge: 3400mm
Pressure type: Pneumatic pressure
Sizing method: Pressure type cylinder former machine
Drive way: AC variable frequency control with section drive.
Machine design: Square box with right hand.
1. Cylinder part
2pcs cylinder: Φ1500mmX2800m, stainless steel series type.
2pcs couch roll: Φ450mmX2900m, rubber hardness is SHD38±2°
1pcs return roll: Φ450mmX2900mm, rubber hardness is SHD90±2°
Equipped with 2set pressure type cylinder vat ( made in stainless steel
2. Press part
1ps stone roll: Φ600mmX2900mm
1pcs rubber roll: Φ550mmX2400mm, rubber hardness is SHD90±2°
Pneumatic pressure device.
3. Dryer part
1pcs cylinder dryer: Φ2500mmX2800mm
3pcs cylinder dryer: Φ1500mmX2800mm. Arrangement is ( 1+3 )
1pcs carrier roll: Φ550mmX2900mm
1pcs press roll: Φ400mmX2900mm, rubber hardness is SHD90±2°
Pneumatic pressure device. Multi dryer part set dry screen for up and down.
Pneumatic corrector, electric tensioner, automatic control device.
4. Press polish part
2400mm three roller press polish machine
5. Reeling part
2400mm cylinder type reeling machine
6. Drive and control part
Apply section drive and AC frequency conversion with regulated speed and all-digital closed
loop control system.

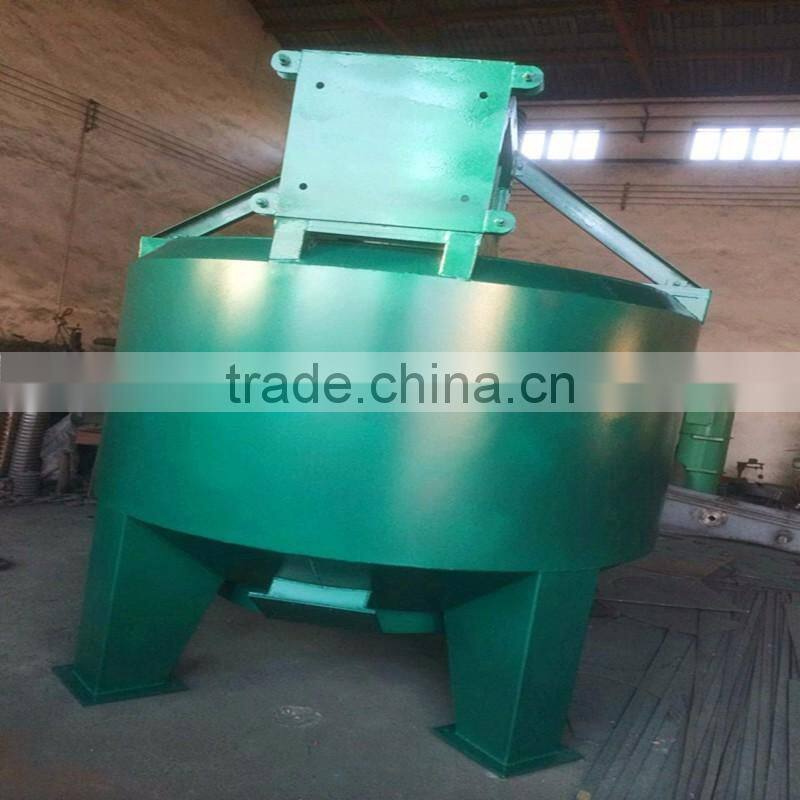

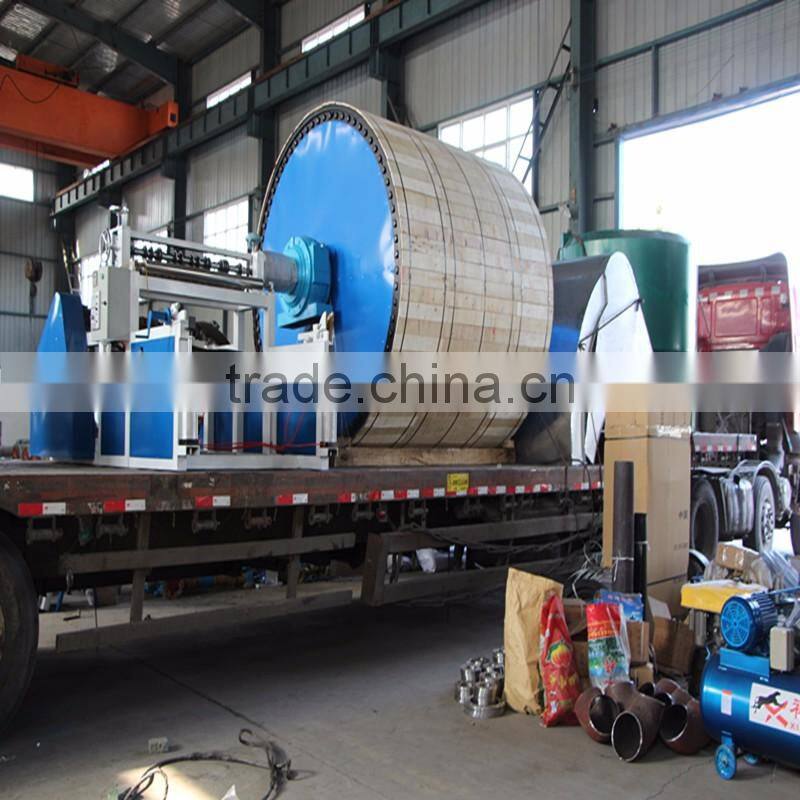

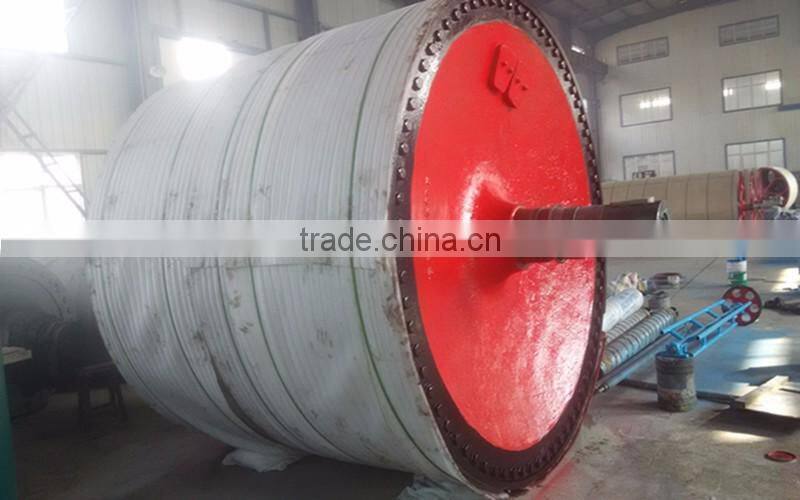

Picture for reference
| FAQ: | ||||||||
| 1. What kind of paper machine your factory produce? | ||||||||
| We produce different kinds of paper machine. such as: | ||||||||
| a.Toilet Paper Machine which can produce toilet paper, tissue paper, napkin paper, handkerchief paper, towel paper and kitchen using paper etc. | ||||||||
| b.Culture paper machine which can produce A4 paper, notebook paper, copy paper, writing paper, printing paper and newsprinting paper etc. | ||||||||
| c.Packing paper machine which can produce kraft paper, fluting paper, corrugated paper, kraft liner paper, carton box paper and packing paper etc | ||||||||
| d.Coating paper machine which can produce coating paper, carbonless copy paper and thermal paper etc. | ||||||||
| 2. Can you make paper mill design for us? | ||||||||
| Yes, we have professional team with rich experience of paper mill design by CAD software. Our engineer will design paper machine suitable for your factory. You only need to tell us your open land dimension, we will make your future paper mill design. | ||||||||
| 3. How about your machine’s quality, we worry about the quality? | ||||||||
| We have more than 30 years manufacturing experience of different kinds of paper machines in China. We strictly manufacture and manage according to IOS9001:2000 System and match all the CE standard or stricter standard. Our paper machine is running well in more than 20 countries. We are gold supplier on alibaba. Our guarantee period is 1 year. If there are any quality problems, We will help you at any time. | ||||||||
| 4. What should I have to know if I want to get the quotation? | ||||||||
| 1.What kind of paper you want to produce(main important) | ||||||||
| 2.What kind of raw material you will use(main important) | ||||||||
| 3.The capacity you want produce per day(main important) | ||||||||
| 4.The paper weight you require. | ||||||||
| 5.The paper width you require. | ||||||||
| 5. Why your price is so high, is there any discount? | ||||||||
The price is matched with the quality of our machine. We can give you some discount if you want to buy our machine sincerely and earnestly. However, if you want a low quality paper machine. I tell you, we don’t produce. Our company’principle is client first, reputation premier. | ||||||||
| 6.Could your engineer teach and train our workers and stay in our factory for long time? | ||||||||
| Yes, we have very large engineer installation team. They can train and teach your workers to operate paper machine, but you should pay them salary. | ||||||||
| 7.How long will it take to get the quotation? | ||||||||
| We usually give reply within 24hours after getting your inquiry. If you are urgent to get the quotation, please tell us by email, then we can reply you as the first priority. | ||||||||
| 8.How we visit your fatory and what will be the proedure? | ||||||||
| Our company located in Zhengzhou city, henan province, if you take plane, it will need about 2 hours from Guangzhou city, 1.5 hours from Shanghai city and 1 hour from Beijing city. We will pick you up from Zhengzhou airport or the train station. We will take you to see our machine running in our chinese clients' paper mill. Welcome you and your team to visit us at any time! |
Welcome to contact with us anytime you need.
Skype Online Talking: hwasong03
