lowest price 1092 model tissue roll paper making machine from manufacturer directly

FOB Price

USD $490,000 - $2,600,000 / Set

1 Set(Min.Order)

Supply Ability 2 Set / Sets per Month
Port Qingdao
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Product Type:	Facial Tissue	Processing Type:	Pulp Molding Machine
Place of Origin:	Henan, China	Brand Name:	HWASONG	Model Number:	1092mm
Voltage:	Custom-made	Power(W):	Undefined	Dimension(LWH):	Undefined
Weight:	Undefined	Certification:	CE	Warranty:	5 years
After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

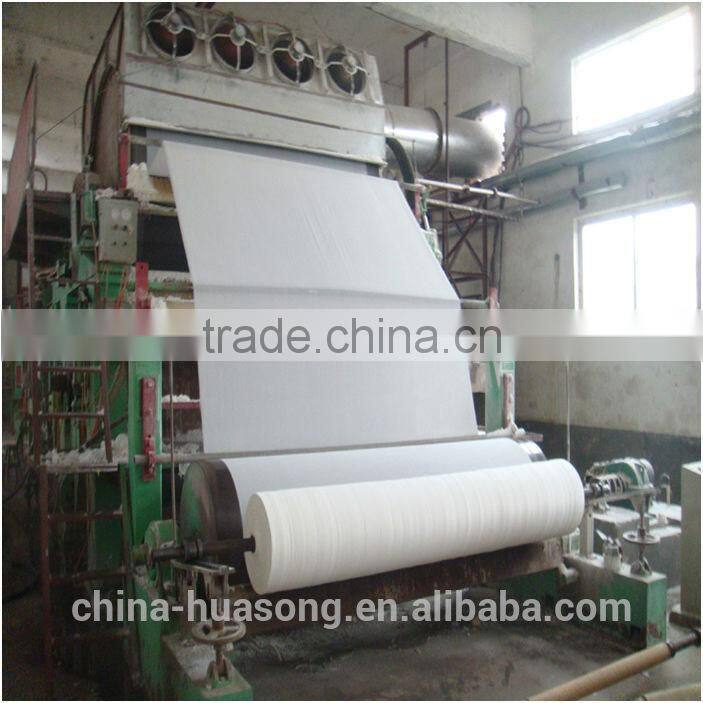

Lowest price 1092 model tissue roll paper making machine from manufacturer directly

Raw material: original pulp,waste paper, old carton,wood pulp,wheat straw, bamboo pulp, etc.

Output paper: Toilet paper/ tissue paper/ facial paper/ napkin paper/kitchen paper

Paper grams: 18--24g/m²

Net paper width: 1092mm

Cylinder mould width: 1000mm

Working capacity: 1~2Ton/Day

The gauge: 1800mm

Pressure type: Pneumatic pressure

Driving type: Frequency control, sub-step driving

Machine shape: square box type

Pulp hanging style: Inversion of hanging pulp

Specfications

No.	Equipment name	Specification	Unit	Quantity
1	Cylinder section	φ1000mm×2300mm	set	1
3	Press roll	φ300mm×1450mm	pcs	2
4	Couch roll	Roll:φ300mm×1450mm	set	1
5	Air pressure net trough	High density plastic plate	set	1
6	Dryer	φ1500mm×1450mm	set	1
7	Bearing shell		set	1
8	Vacuum pump	15 Type	set	1
9	Squeeze roll		pcs	1
10	Felt leading roll	φ108mm×1450mm	pcs	5
11	Spreader roll		pcs	1
12	Corrector	pneumatic	pcs	1
13	tensioner	Electro dynamic type	set	1
14	Tightly blanket		pcs	2
15	Blanket		pcs	2
16	Pneumatic device	Air compressor (air wire, cabinet, jet )	set	1
17	Frequency conversion device	Conversion cabinet, transducer, operation cabinet	set	1
18	Frame, foundation board		set	1
19	Air hood		set	1

Pulp Making Machine Configuration

No.	Equipment Name	Specification	Unit	Quanlity
1	Pulper	1.5 M3	set	1
2	Vibrating screen	0.9	set	1
3	Fiberizer	330	set	1
4	Blender	vertical type	set	1
5	Impeller	#500	set	1
6	Potcher	30 M3	set	1
7	Centrifugal screen	0.35 M3	set	1
8	Pulp pump	4"	set	4

Operation Sketch Map

Workshop & Equipment

Packaging & Shipping

FAQ

1, What kind of paper machines your factory produce?
We produce different kinds of paper machine. such as:
Toilet Paper Machine which can produce toilet paper, tissue paper, napkin paper, handkerchief paper, towel paper and kitchen using paper etc.
Culture paper machine which can produce A4 paper, notebook paper, copy paper, writing paper, printing paper and news printing paper etc.
Kraft paper machine which can produce Kraft paper, fluting paper, corrugated paper, Kraft liner paper, carton box paper and packing paper etc.
Coating paper machine which can produce coating paper, carbonless copy paper and thermal paper etc.
2, Can you make paper mill design for us?
Yes, we have professional team with rich experience of paper mill design by CAD software. Our engineer will design paper machine suitable for your factory. You only need to tell us your open land dimension; we will make your future paper mill design.
3, How about your machine’s quality, we worry about the quality?
We have more than 30 years manufacturing experience of different kinds of paper machines in China. We strictly manufacture and manage according to ISO9001:2000 System and match all the CE standard or stricter standard. Our paper machine is running well in more than 20 countries. We are gold supplier on Alibaba. Our guarantee period is 1 year. If there have any quality problems, We will help you at any time.
4, What should I have to know if I want to get the quotation?
What kind of paper you want to produce(Important)
What kind of raw material you will use(Important)
The capacity you want produce per day(Important)
The paper weight you require.
The paper width you require.
5, Why your price is so high, is there any discount?
The price is matched with the quality of our machine. We can give you some discount if you want to buy our machine sincerely and earnestly. However, if you want a low quality paper machine. I tell you, we don’t produce. Our company’s principle is client first, reputation premier.
6, Could your engineer can teach and train our workers and stay in our factory for long time?
Yes, we have very large engineer installation team. They can train and teach your workers to operate paper machine, but you should pay them salary.
7, How long will it take to get the quotation?
We usually give reply within 24 hours after getting your inquiry. If you are urgent to get the quotation, please tell us by email, then we can reply you as the first priority.
8, How we visit your factory and what will be the procedure?
Our company located in Zhengzhou city, Henan province, if you take plane, it will need about 2 hours from Guangzhou city, 1.5 hours from Shanghai city and 1 hour from Beijing city. We will pick you up from Zhengzhou airport or the train station. We will take you to see our machine running in our Chinese clients' paper mill. Welcome you and your team to visit us at any time!

Our Services

We will provide you all technical consultation, design the drawing and give you constructive proposal.

We will send technicians to install and test the machine for you.

We will train skilled workers for you.

We will supply best after-sale service.

1. The seller should ensure that the products they offer are brand-new and unused. The equipment should be the latest design and made of suitable material. They should design and manufacture the machine strictly abided by the technical requirements signed by two sides and national and industry standards of paper machine.

2. After the production line is installed and debugged under correct guidance of the seller, they should assure that the whole line will produce qualified products 7days after smooth operation and reach the requirements specified by technical standards within 30 days

3. The supplier will appoint 1~2 technicians to install at the spot and ensure the installation safely and duly. The buyer will be responsible for the salary and accommodation of the technicians.

4. The seller should ensure the equipment they offer are safe to use and no hidden dangerous.

5. Quality assurance date: the quality assurance will be carried out based on the contract.

6. The seller need to ensure that they will be responsible for any fault, breakdown, damage of the production line caused by the seller's responsibility of the design, technical craft, manufacturing, installation, debugging, or the fault of material during the quality assurance period set in the contract.

7. During the quality assurance period, the buyer can make request to change the goods once they find that the goods are inconsistent with what described in the contract or they have got the proof of goods’ fault.

8. The seller should ensure that the spare parts of paper machine can be replaced universally and meet the requirements of systematization, standardization, generalization.
