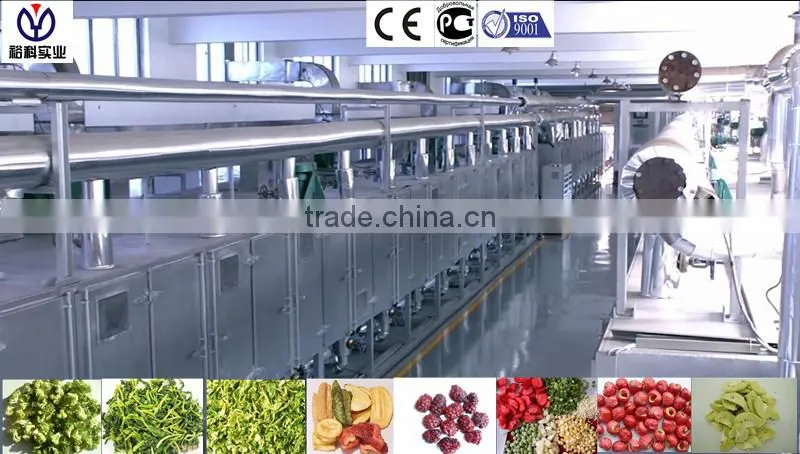

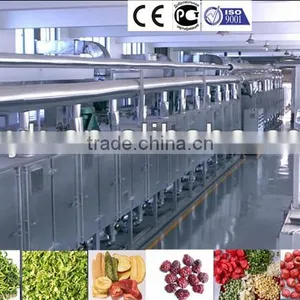

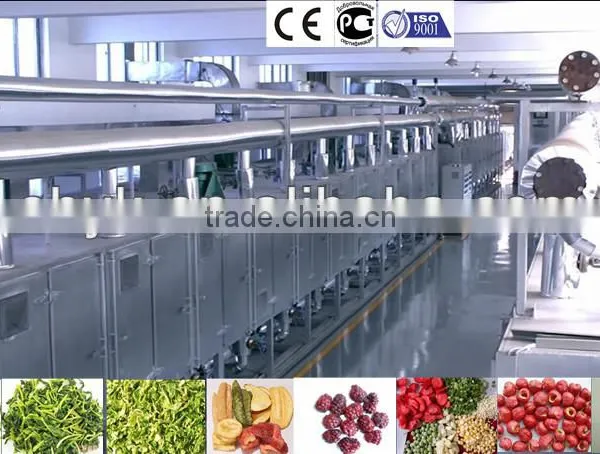

15m stainless steel mesh belt commercial tropical fruits and vegetables dehydrator/drying machine/dryer hot selling in Singapore

Specifications

15m stainless steel mesh belt commercial tropical fruits and vegetables dehydrator/drying machine/dryer hot selling in Singapore



15m stainless steel mesh belt commercial tropical fruits and vegetables dehydrator/drying machine/dryer hot selling in Singapore







Introduction

Mesh belt dryer is a kind of batch, continuous production drying equipment, mainly for better ventilation sheet, strip, granular materials, such as: preserved fruit, pepper, potato chips, cassava chips/slice, briquettes, grain straw, etc., the main heating electric heating, coal fuel heating, hot air heating.

Work Principle

Materials are uniformly put on the mesh-belt by the feeder.

The mesh-belt uses generally 12-60 mesh stainless steel wire net and it is drawn and moved inside the drier by a transmission device.

The drier is composed of several units. For each unit, the hot air is circulated separately. Some exhausted gas is discharged with a special moisture elimination blower. The waste gas is controlled through an adjustment valve. The hot air passes through the mesh-belt covered with the material from the top to the bottom or from the bottom to the top and this will complete the heat and mass transfer process. This process will bring the material water away. The mesh-belt moves slowly, Running speed can be freely adjusted according to the material temperature. The final products after the drying will fall into the material collector continuously. The top and low circulation units can be freely equipped according to the users'demand. The unit number can be selected according to the demand.



Features of mesh belt dryer

small footprint

small investment

high efficiency

high-yield

high evaporation intensity

standardization of production.

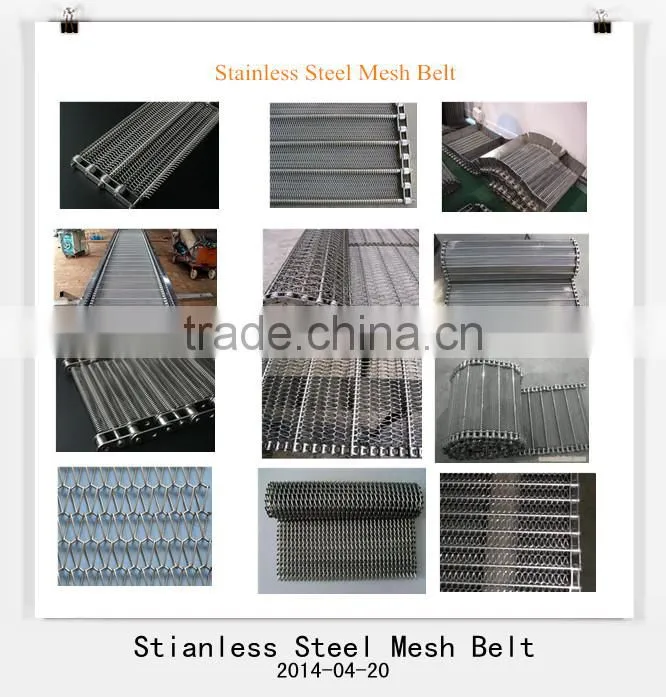

Wear Parts







Final Products











Technical Parameters

Model	KHWD6	KHWD8	KHWD10	KHWD12	KHWD16	KHWD20	KHWD24	KHWD30
Net belt width(mm)	600	800	1000	1200	1600	2000	2400	3000
Drying section length (m)	6-12	6-12	6-16	8-16	8-22	10-26	12-30	12-40
Length of feeding section(m)	1	1	1	1	1	1.5	1.5	2
Transmitting section length (m)	1	1	1	1	1	1.5	1.5	2
Drying area(m2)	3.6-36	4.8-48	6-80	7.2-96	12.8-105.6	20-260	28.8-360	36-600
Unit number	1-5
Interlamellar spacing (mm)	400-600
Carrying capacity	90-200 Kg/m2
Operation temperature (°C)	carbon steel less than or equal to 400 C°,stainless steel less than or equal to 600 C°
Drying strength((kgH2O/h)	5-20kg  H2O/m2.h
heat source	hot wind,electricity,steam
Running speed	0.06-1m/min
Transmission powder(kw)	1.1-2.2	1.1-2.2	1.1-2.2	1.1-3	1.5-3	1.5-4	3-7.5	5-11
Matching equipment	conveying equipment,air heating furnace,dust removing equipment,draught fan etc.

Remarks: Based on different materials, capacity, moisture content, the technical parameter is adjustable.



RFQ

Place order or send inquiry please kindly let us know:

The size of the raw material

The moisture before drying

The final moisture after drying

The capacity you want to drying in one hour.

The heating source of you use,if you use stream we want to know the temperature.



Certificate



Service Advantage

***************************************************************************************

Oversea Instrall:We could dispatch the professional engineer go abroad to instrall the equipment and test the machine.

Instrall Drawing and Technical Gudiance:We could supply the Instrall Drawing and Technical Guidance for you in the beginning you operate the machine

24 hours after-sale service: If you have any question please let us know ,our engineer we help you to solve the problems about the instralling and operation.

***************************************************************************************
