Specifications
Shanghai Yuke Mesh Belt DryerReliable Quality
Energy Saving
Low cost Consumption
Environment Protection

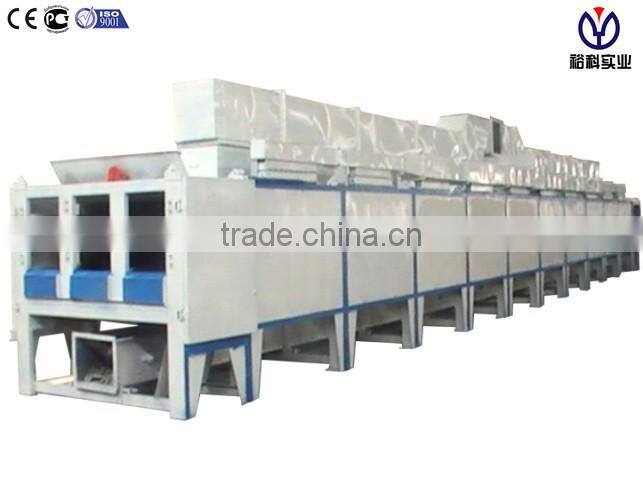

Shanghai Yuke Mesh Belt Dryer
Product Description
Mesh belt dryer is a kind of batch, continuous production drying equipment, mainly for better ventilation sheet, strip, granular materials, such as: preserved fruit, pepper, potato chips, cassava chips/slice, briquettes, grain straw, etc., the main heating electric heating, coal fuel heating, hot air heating.
The Work principle of Mesh Belt Dryer
Materials are uniformly put on the mesh-belt by the feeder.
The mesh-belt uses generally 12-60 mesh stainless steel wire net and it is drawn and moved inside the drier by a transmission device.
The drier is composed of several units.
For each unit, the hot air is circulated separately.
Some exhausted gas is discharged with a special moisture elimination blower.
The waste gas is controlled through an adjustment valve.
The hot air passes through the mesh-belt covered with the material from the top to the bottom or from the bottom to the top and this will complete the heat and mass transfer process.
This process will bring the material water away.
The mesh-belt moves slowly, Running speed can be freely adjusted according to the material temperature. The final products after the drying will fall into the material collector continuously.
The top and low circulation units can be freely equipped according to the users'demand. The unit number can be selected according to the demand.
Features of Mesh Belt Dryer
small footprint
small investment
high efficiency
high-yield
high evaporation intensity
standardization of production
Technical Parameters
Model | KHWD6 | KHWD8 | KHWD10 | KHWD12 | KHWD16 | KHWD20 | KHWD24 | KHWD30 |
Net belt width(mm) | 600 | 800 | 1000 | 1200 | 1600 | 2000 | 2400 | 3000 |
Drying section length (m) | 6-12 | 6-12 | 6-16 | 8-16 | 8-22 | 10-26 | 12-30 | 12-40 |
Length of feeding section(m) | 1 | 1 | 1 | 1 | 1 | 1.5 | 1.5 | 2 |
Transmitting section length (m) | 1 | 1 | 1 | 1 | 1 | 1.5 | 1.5 | 2 |
Drying area(m2) | 3.6-36 | 4.8-48 | 6-80 | 7.2-96 | 12.8-105.6 | 20-260 | 28.8-360 | 36-600 |
Unit number | 1-5 | |||||||
Interlamellar spacing (mm) | 400-600 | |||||||
Carrying capacity | 90-200 Kg/m2 | |||||||
Operation temperature (°C) | carbon steel less than or equal to 400 C°,stainless steel less than or equal to 600 C° | |||||||
Drying strength((kgH2O/h) | 5-20kg H2O/m2.h | |||||||
heat source | hot wind,electricity,steam | |||||||
Running speed | 0.06-1m/min | |||||||
Transmission powder(kw) | 1.1-2.2 | 1.1-2.2 | 1.1-2.2 | 1.1-3 | 1.5-3 | 1.5-4 | 3-7.5 | 5-11 |
Matching equipment | conveying equipment,air heating furnace,dust removing equipment,draught fan etc. | |||||||
Remarks: Based on different materials, capacity, moisture content, the technical parameter is adjustable.
Certificate
Service Advantage
___________________________________________________________________________
Oversea Instrall:We could dispatch the professional engineer go abroad to instrall the equipment and test the machine.
Technical Guidance and Drawing Supply
24 hours after-sale service: If you have any question please let us know ,our engineer we help you to solve the problems about the instralling and operation.
______________________________________________________________________________________
