Help CenterBale Platform T954 5,9t
Related Products

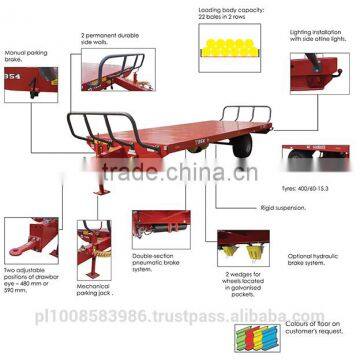

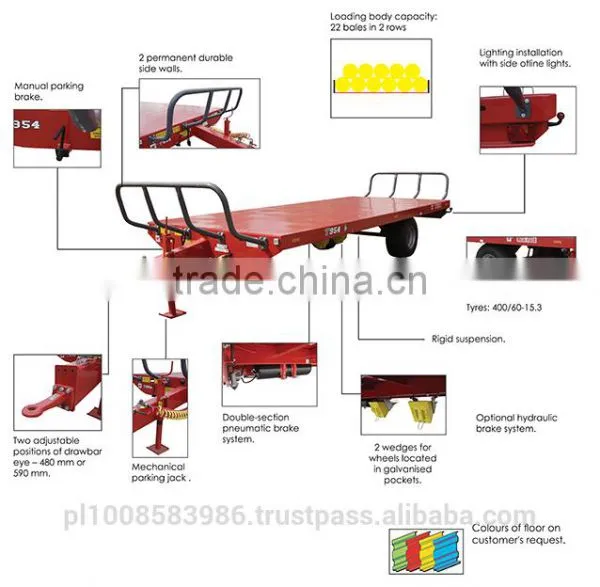

The mono-axle trailer is designed for carrying straw bales. With nearly 6 tonnes of permissible load capacity and a compact size, this is an excellent solution for most farms. The platform has two solid and sturdy walls at the front and rear. It can carry 22 bales in two rows. The road lamps and clearance marker lights improve safety on the road by making the trailer highly visible. The trailer features a rigid suspension system, a hand operated parking brake, and a pneumatic dual-line braking system, or the optional hydraulic brake system. To improve the ease of use, the platform has a mechanically operated support foot and 2 wheel chocks, stowed in zinc-plated holders. There are two adjustable positions for the tow bar hitch rings at 480 mm and 590 mm.
- COMPACT: The best compromise between size and functionality
- ROBUST: The rigid suspension system and two fixed end walls make the platform sturdy and reliable
- SAFE: The trailer has many features that improve the safety of use
- PERSONALIZED: You can choose a custom colour finish
| Item | Type | T954 |
| 1 | Load capacity [kg] | 5900 |
| 2 | Gross combined weight [kg] | 7800 |
| 3 | Weight [kg] | 1900 |
| 4 | Total length / width /height [mm] | 8160/ 2440/ 1630 |
| 5 | Cargo space length/width/height [mm] | 6000/2440/610 |
| 6 | Cargo space height from ground [mm] | 1020 |
| 7 | Body capacity [bale number] | 22 |
| 8 | Support side walls | two, permanent |
| 9 | Parking brake | mechanical, drum-type |
| 10 | Hydraulic brake | optional |
| 11 | Wheel track [mm] | 1700 |
| 12 | 2 wedges for wheels located in galvanised pockets | V |
| 13 | Tyres | 400/60-15.3 |
| 14 | Ø40 mm ring hitch | 40/50 |
| 15 | Two-component chemo-hardenable painting materials of high durability and UV resistance | V |
| 16 | Cataphoretic protection of metal surfaces | V |
| Legend: | ||
| V standard | ||
