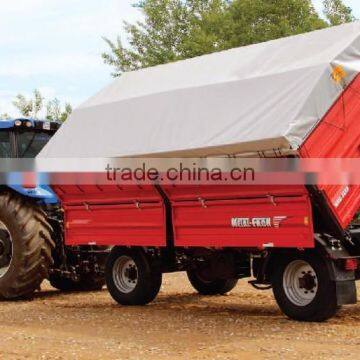

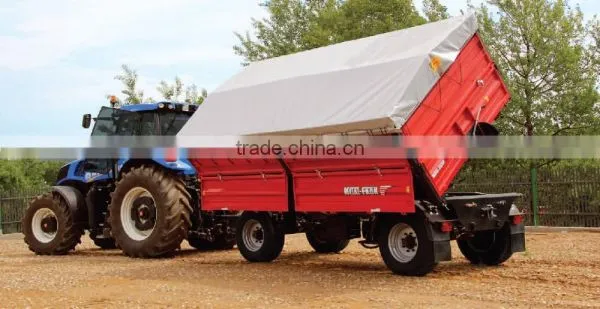

Help CenterTrailer 14t T739
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Poland
Dimension(L*W*H):
7500 mm/ 2550 mm/ 4020 to 45800 mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Gdynia Poland
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Poland
Dimension(L*W*H)
7500 mm/ 2550 mm/ 4020 to 45800 mm
Weight
4300kg
Certification
CE
Warranty
1 year
| I General data | |||
| Vehicle type | farming trailer | ||
| Manufacturer | METAL-FACH COMPANY 16-100 Sokolka, ul. Kresowa 62 |
||
| Type (model) | T739 | ||
| Body type | platform | ||
| Nameplate location | chassis frame front crosspiece | ||
| S/N stamping location | on the nameplate and underneath | ||
| II Dimensions and weight | |||
| Length, mm | 7500 | ||
| Width, mm | 2550 | ||
| Height (w/top section), mm |
3000 | ||
| Number of axles, pcs. | 2 | ||
| Wheel base, mm | 3840 | ||
| Wheel track, mm | 1900 | ||
| Loading space dimensions | |||
| - length, mm | 5385 | ||
| - width, mm | 2410 | ||
| - height (w/top section), mm | 600 (1400) |
||
| Loading surface height, mm | 1373 | ||
| Tow bar oscillation height, mm | - | ||
| Tow bar hitch-ring diameter, mm | 40 | ||
| Vehicle ramp clearance, mm | 490 | ||
| Vehicle kerb weight, kg | 4020-4580 | ||
| Permissible vehicle overall weight, kg | 18000 | ||
| - per axle, kg | 9000 | ||
| Maximum axle load, kN | |||
| - per axle, kN | 88.29 | ||
| Permissible load capacity, kg | 13420-13880 | ||
| III Suspension | |||
| Suspension type | dependent, with springs | ||
| Spring component type and style | longitudinal 2-leaf parabolic springs | ||
| IV Wheels and tyres | |||
| Number of wheels, pcs. | 4 | ||
| Wheel disk size | 11.75x22.5 | ||
| Tyre size and PR number | 385/65 R22.5 | ||
| Manufacturer | Bandemarkt SAWA/KORMORAN/ DEBICA/MICHELIN | ||
| Tyre pressure [bar] | 5 to 9, depending on the manufacturer | ||
| V Braking system | |||
| Service brake | |||
| - type | mechanical, drum-type | ||
| - control | pneumatic, positive pressure, two-line brake system; | ||
| - no. of wheels operated | 4 wheels | ||
| Parking brake | |||
| - type | mechanical, drum-type | ||
| - control | manual, by a screw gear | ||
| - operated components | 2 rear axle wheels | ||
| VI Electrical system | |||
| Voltage rating, V | 12 V, feed by the driving tractor | ||
| VII Operating data | |||
| Maximum speed, km/h | 40 | ||
| Maximum transport speed, km/h | 30 | ||
| VIII Additional Information | |||
| Driving tractor | 100 kW minimum | ||
| Hydraulic oil cleanliness | not less than 9 acc. to WAS 1638 (category 20/18/15 acc. to ISO 4406- 1996) | ||
