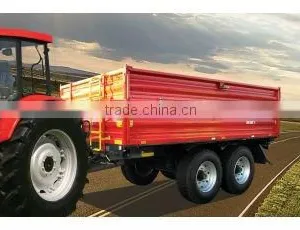

Tandem trailer T730/3

Specifications

Tandem trailer T730/3 with loading capacity of 12 T has a light and tough construction based on closed profiles.

Trailer side wall colours on request. The entire colour palette of popular tractor brands is available.
Dumping on three sides at maximum angle of 50°.
Brake system: Two-line; pneumatic. Optional: Hydraulic brake

Support chocks. Access & service ladder.
Central system for wall locking at floor edge.
Rear damper with chute.
Electrical system.

Wall tie wire. Loading body support.



Optional accessories:
- Top section
- Tarpaulin cover with supports
- Working platform
- Spare wheel with mount under the chassis frame
- Automatic rear hitch





Type	Unit of Measure	T730/3
Loading capacity	kg	12000
Trailer weight	kg	3600
Inside length of loading box	mm	4510
Inside width of loading box	mm	2410
Height of box walls	mm	600+800
Height of box walls with addition	mm	14000
Loading volume with addition	m3	6,5/15,2
Length	mm	6480
Width	mm	2550
Tires	-	385/65R22,5
Suspension frame	-	ladder, closed profile
Hitch	-	drawbar universal with top or bottom hitching
Hitch tie	-	Ø40
Maximum speed	km/hr	40
Brake system	-	2 hose
Lights	-	yes
Hand brake	-	yes
Wheel chocks with pocket	-	yes
