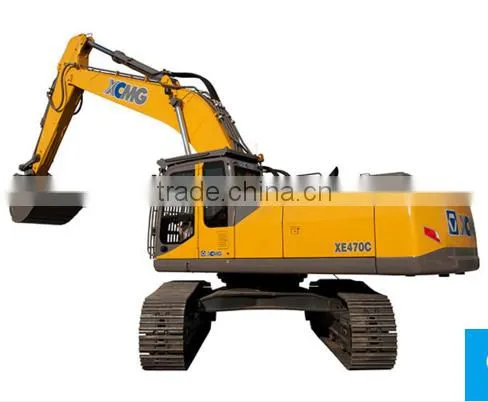

Competitive Price XCMG XE470C Excavator is Available for you
The XE470C hydraulic excavator has used a new generation of independent researched and developed controllers and optimized the matching between the engine power and the pump to make full use of the engine power, improve the working efficiency and effectively reduce the fuel consumption. The optimization of the hydraulic pipelines can improve the oil return pressure loss and system backpressure, effectively reduce the energy loss and ensure the machine operation steadiness and rapidness.
Its solid lower walking mechanism features higher durability, reliability and maneuverability, able to satisfy the demands for heavy-load operations; the reinforced four wheels and tracks configured boast more excellent performance and more reliable quality, able to comprehensively reduce the maintenance costs. Its H-shaped front working mechanism and strengthened key parts have improved the reliability during heavy-load operations.
As one of the large-sized leading models launched by XCMG Excavator Machinery Business Department with no effort spared, the XE470C hydraulic excavator has been adhering to the product design concept of “high efficiency, high-level security, low carbon emissions and environmental protection”. This machine can be widely used in mining and large-scale earthwork projects and applied to the majority of soil geological conditions at home and abroad by virtue of its wide range of applications, sufficient flexibility, high construction efficiency and perfect mining capacity.
| Model | Unit | XE470C | |
|---|---|---|---|
| Operating weight | kg | 46100 | |
| Standard bucket capacity | m³ | 1.9~2.3 | |
| Engine | Engine Model | / | QSM11 |
| Direct injection | / | √ | |
| Four strokes | / | √ | |
| Water cooling | / | √ | |
| Turbo charged | / | √ | |
| Air to air intercooler | / | √ | |
| No. of cylinders | / | 6 | |
| Rated power/speed | kw/rpm | 250/2000 | |
| Max. torque/speed | N.m | 1790/1400 | |
| Displacement | L | 11 | |
| The main performance | Travel speed | km/h | 5.4/3.2 |
| Swing speed | r/min | 9 | |
| Max. gradeability | / | ≥30 | |
| Ground pressure | kPa | 82.7 | |
| Max.Bucket digging force | kN | 271 | |
| Max.arm crowd force | kN | 231 | |
| Max.traction force | kN | 338 | |
| Hydraulic system | Main pump | / | 2 Plunger pump |
| Rate flow of main pump | L/min | 2×360 | |
| Max pressure of prime relief valve | MPa | 31.4/34.3 | |
| Max pressure of travel system | MPa | 34.3 | |
| Max pressure of swing system | MPa | 28.4 | |
| Max pressure of pilot system | MPa | 3.9 | |
| Oil capacity | Fuel tank capacity | L | 650 |
| Hydraulic tank capacity | L | 360 | |
| Engine lubrication | L | 38 | |
| Overall dimensions | A Overall length | 12030MM | |
| B Overall width | 3580MM | ||
| C Overall height | 3842MM | ||
| D Overall width of upperstructure | 2995MM | ||
| E Track length | 5220MM | ||
| F Overall width of undercarriage | 3580MM | ||
| G Crawer width | 600MM | ||
| H Track length on ground | 4180MM | ||
| I Crawer gauge | 2392/2890MM | ||
| J Clearance under counter weight | 1360MM | ||
| K Ground clearance | 703MM | ||
| L Min.tail swing radius | 3665MM | ||
| Working range | A Max. digging height | 10675MM | |
| B Max. dumping height | 7409MM | ||
| C Max. digging depth | 7337MM | ||
| D 8inch horizonal digging depth | 7117MM | ||
| E Max. vertical wall digging depth | 5225MM | ||
| F Max. digging reach | 11631MM | ||
| G Min. swing radius | 4909MM | ||
| Angle of arm deflection | Degree | ||
