Please contact for Competitive Price XCMG XE260CLL Excavator

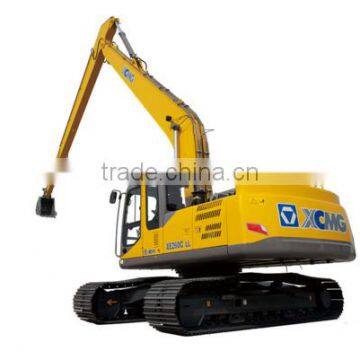

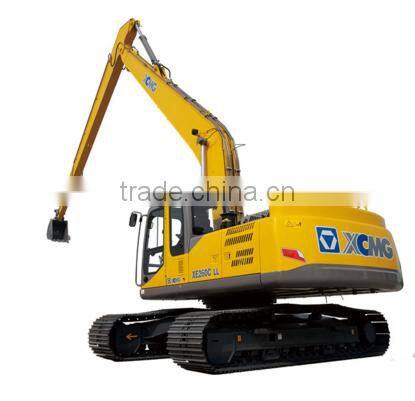

Feature for XCMG 27 ton Crawler Excavator XE260CLL:
1. Imported engine of environment friendly and efficient low-consumptions
2. Complete set of imported hydraulic components, excellent control, smooth operation
3. Imported radiator, adapt super load and continuous operation
4. High quality key parts, the chassis configuration of international quality
5. Powerful digging force, slew force and traction force
6. Completed closed PROS / FOPS cab, good vision and protection structure, import luxury seats, safe and comfortable
7. Fast full-open style hood, easy maintenance
8. Anti-collision structure of cast iron weight, the effective protection of turntable and hood
9. Optional hydraulic breaker piping, to facilitate the crushing operation
10. GPS satellite positioning and remote monitoring system.
Parameter for XCMG 27 ton Crawler Excavator XE260CLL :
| Model | Unit | XE260CLL | |
|---|---|---|---|
| Operating weight | kg | 27500 | |
| Standard bucket capacity | m³ | 0.4 | |
| Engine | Engine Model | / | CC-6BG1TRP |
| Direct injection | / | √ | |
| Four strokes | / | √ | |
| Water cooling | / | √ | |
| Turbo charged | / | √ | |
| Air to air intercooler | / | √ | |
| No. of cylinders | / | 6 | |
| Rated power/speed | kw/rpm | 128.5/2100 | |
| Max. torque/speed | N.m | 637/1800 | |
| Displacement | L | 6.494 | |
| The main performance | Travel speed | km/h | 5.5/3.3 |
| Swing speed | r/min | 12.1 | |
| Max. gradeability | / | ≥30 | |
| Ground pressure | kPa | 40.8 | |
| Max.Bucket digging force | kN | 70.7 | |
| Max.arm crowd force | kN | 41.3 | |
| Max.traction force | kN | 193 | |
| Hydraulic system | Main pump | / | 2 |
| Rate flow of main pump | L/min | 2×231 | |
| Max pressure of prime relief valve | MPa | 32.3/34.4 | |
| Max pressure of travel system | MPa | 34.3 | |
| Max pressure of swing system | MPa | 23 | |
| Max pressure of pilot system | MPa | 3.9 | |
| Oil capacity | Fuel tank capacity | L | 400 |
| Hydraulic tank capacity | L | 240 | |
| Engine lubrication | L | 25 | |
| Overall dimensions | A Overall length | mm | 13900 |
| B Overall width | mm | 3390 | |
| C Overall height | mm | 3360 | |
| D Overall width of upperstructure | mm | 2830 | |
| E Track length | mm | 4640 | |
| F Overall width of undercarriage | mm | 3390 | |
| G Crawer width | mm | 800 | |
| H Track length on ground | mm | 3842 | |
| I Crawer gauge | mm | 2590 | |
| J Clearance under counter weight | mm | 1050 | |
| K Ground clearance | mm | 495 | |
| L Min.tail swing radius | mm | 2985 | |
| Working range | A Max. digging height | mm | 13800 |
| B Max. dumping height | mm | 11414 | |
| C Max. digging depth | mm | 14915 | |
| D 8inch horizonal digging depth | mm | × | |
| E Max. vertical wall digging depth | mm | 13917 | |
| F Max. digging reach | mm | 18258 | |
| G Min. swing radius | mm | 6740 | |
| Angle of arm deflection | Degree | ||
