competitive price crusher machine for pallet with CE
waste wood crusher, wood pallet crusher
Introduction:
One of Kowloon star products, which Kowloon focus to develop and rearch on, specially designed for wood crushing plank/wood board/wood furring.
Structure:
Feeding roller: control feeding speed, avoid materials slipping and provide outlet for feeding material.
Cutter shaft: knives welded in a circular motion, to ensure the stabilityand power equality,.
Features:
1. Conveying, feeding, pressing, crushing at same time automaticlly, ensuring to get chips in uniform size.
2. Feeding roller adopts UCK bearings and spring clamping mechanism, applicatable to different thickness wood boards, feeding roller and crushing roller use differet power system, convience to control.
3. Compact design, safety and durable, with high efficiency, get good feedback, easpcially on big capacity and good at finish product.
Application:
Wood processing factory, power station, wood board, wood furring and wood scraps recycle industry, plywood processing factory….etc. Apply to crushing wood boards or wood offcut materials, which width less than 1.3m, thickness 3-15mm
Waste Wood Crusher Machine
Model |
500 |
650 |
800 |
1000 |
1200 |
Conveyor width(mm) |
500 |
650 |
800 |
1000 |
1200 |
Feed port size(mm) |
50 *100 |
650*100 |
800*120 |
1000*150 |
1200*200 |
Host motor(kw) |
22 |
42 |
37 |
45 |
55 |
Roll feed motor(kw) |
4 |
4 |
4 |
4 |
5.5 |
Feed speed(m/s) |
0.45 |
0.55 |
0.65 |
0.75 |
0.80 |
Conveyor rotate speed(r/m) |
650 |
650 |
650 |
650 |
650 |
Crusher rotate speed(r/m) |
680 |
680 |
680 |
680 |
680 |
Capacity(t/h) |
1-3 |
2-5 |
3-8 |
5-10 |
7-15 |
Weight(t) |
3 |
4.5 |
5.5 |
6 |
7 |

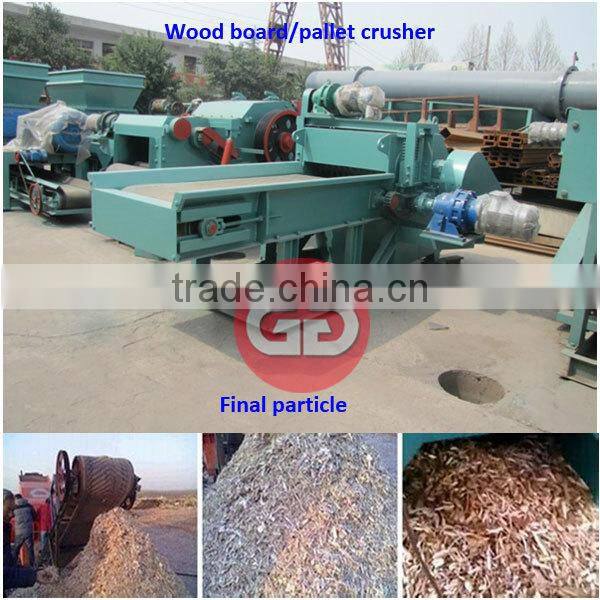

Photos for working system:
|

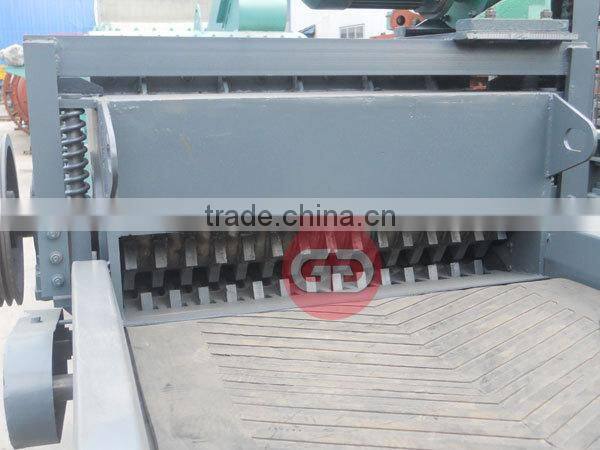

Lightspot: With Mesh type blades, it crushes completely. 1.Special blades with high hardness 2.With Strong structure and close-set strengthened plates, the assemblies box is enough solid. 3.Automatic button control, safe and convenient 4.With safety logo and warning marks to ensure safe operation. |

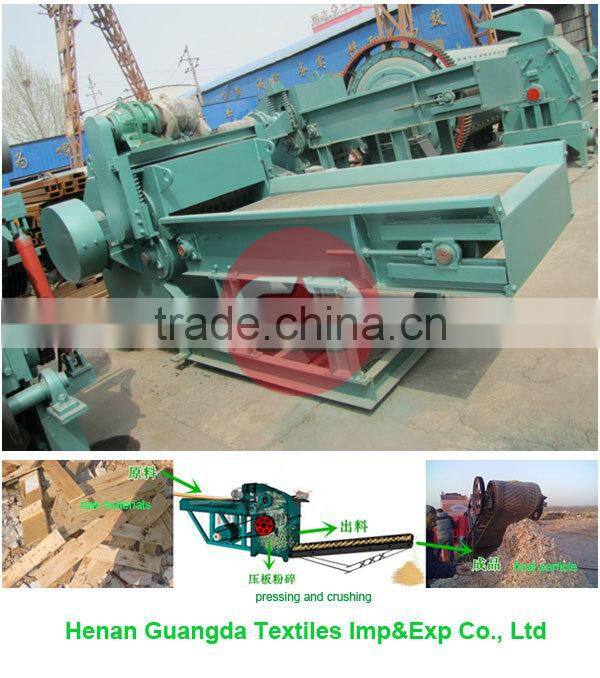

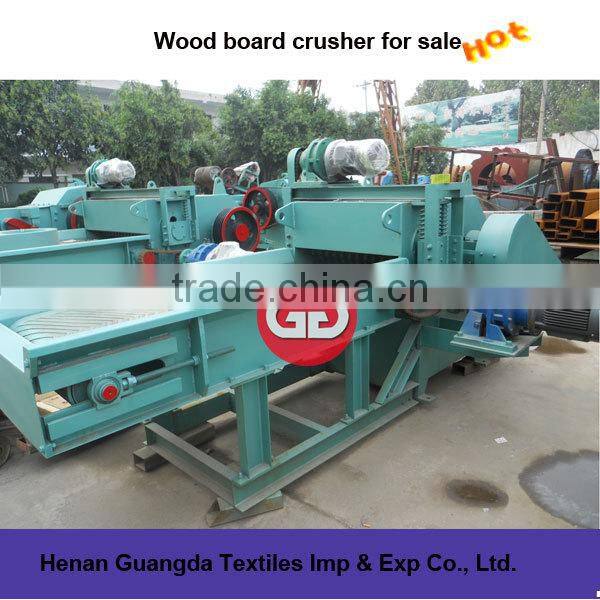

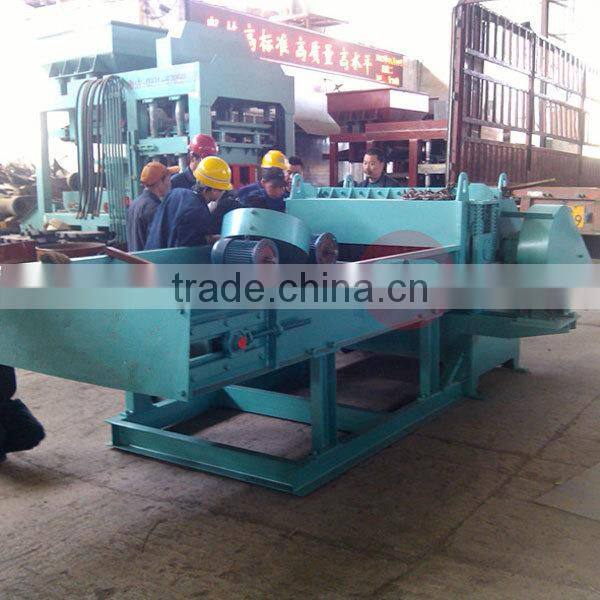

Whole machine:
Raw materials:

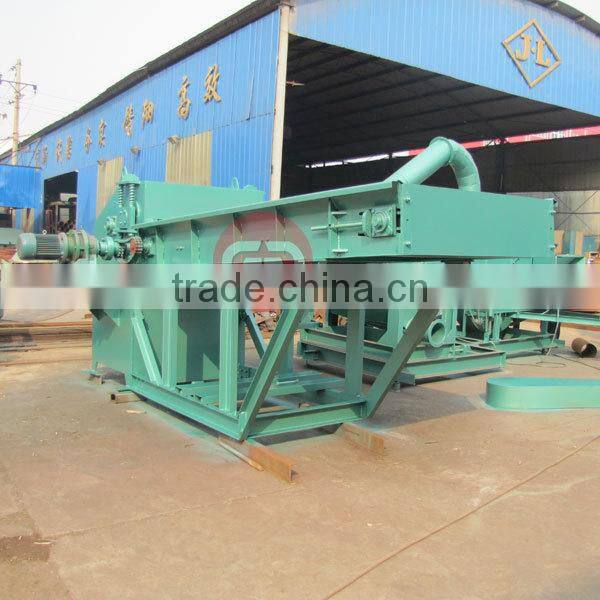

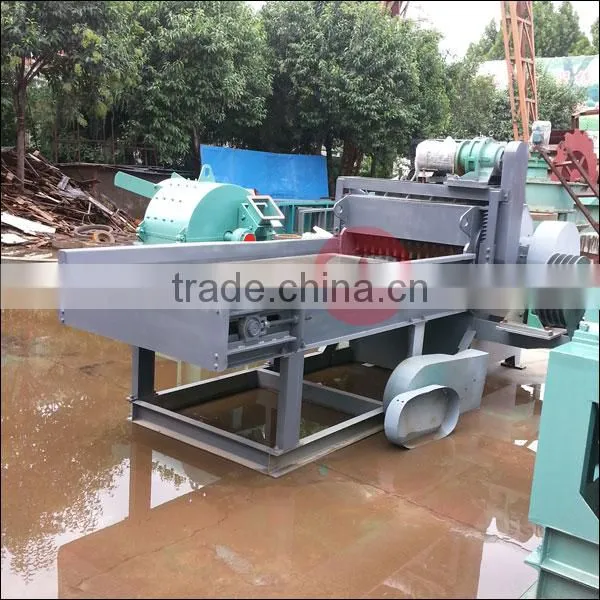

Before painting:

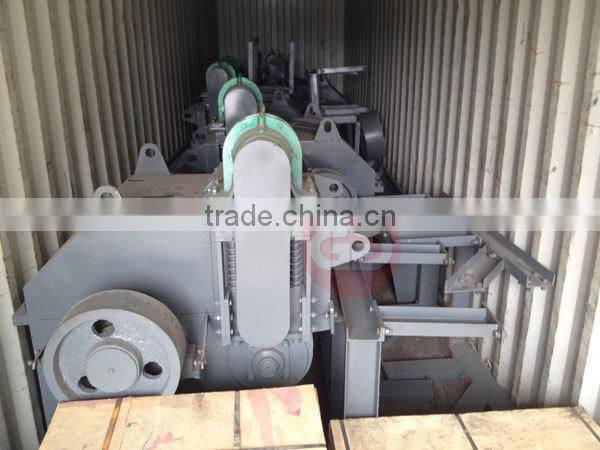

Packing:
Photos for Blades:
[Step 1] Send a inquiry by email or trademanager.
[Step 2] We proivide you the offer.
[Step 3] Confirm delivery time and freight operation.
[Step 4] Arrange production after 30% deposit received by T/T.
[Step 5] Confirm consignee and notify party information.
[Step 6] Balance payment received and book ship arranges shipping.
[Step 7] Performa invoice, packing list and copy bill of lading sent to you.
[Step 8] Product received.
12 months warranty except for wear parts
broken spare parts (except for wear parts) will be sent for free due to quality problems
In time response to customers technical problems
New products update for customers' reference
Good quality, mature technology, competitive price and good after-sales service.
If you want a competitive price and more details, pls kindly contact us, we will try our best to satisfy you!
