World popular TOP sale small wood pelletizer pellet mill
The wood pellet mill, also called ring die wood pellet machine, is suitable for making the biomass materials like corn stalks, straw, rice bran, wood sawdust and other agricultural wastes into pellets shape biomass fuel for burning, the pellets can be used for stove, boiler, gasifier, power stations and so on ; big ring die pellet machine producing fuel are suitable for large enterprises with large-scale production line, with high energy efficiency ,clean and environment protected.
It has many advantages than flat die pellet mill, such as less wear and tear, more energy efficiency, steady performance, larger capacity etc. It also popular used in the light industry and large pellet plant.
Raw materials:
1.wood waste, scobs, branch, palm tree;
2.bean straw, wheat straw, corn straw, cotton straw, rice straw,rice husk
tton shell, peanut shell, rice shell, palm tree, coconut shell;
wood pellet making machine
Model |
MZLH250 |
MZLH320 |
MZLH350 |
MZLH400 |
MZLH420 |
MZLH508 |
Main motor power(kw) |
22 |
37 |
55 |
90 |
110 |
160 |
Conditioner power(kw) |
1.5 |
2.2 |
2.2 |
3 |
5.5 |
7.5 |
Diameter of ring die(mm) |
250 |
320 |
350 |
400 |
420 |
508 |
Feeder power(kw) |
0.75 |
1.5 |
1.5 |
1.5 |
1.5 |
2.2 |
Size of finished pellets(mm) |
1.5-12 |
1.5-12 |
1.5-12 |
1.5-18 |
1.5-18 |
2-18 |
Yield(t/h) |
0.2 |
0.3 |
0.5 |
0.8 |
1 |
2 |
Structure feature:
This wood pellet mill mainly consists of feeding device, hardening and tempering device, face plate, press chamber transmission system, overload protection and electrical control system. And our machine uses the thicken steel plate which is thicker than the industrial standard. This design can help the machine work for a long time without maintenance.And the wood pellet making machie has low price.
Highlights of our wood pelletizer:
1)Main engine drives with high precision gear, ring die in quick detaching encircling hoop type, output higher 20% than belt drive.
2)Equipped with steam automatic regulatory system to keep refining temperature constant.
3)The complete machine transmission parts include electric motor with Switzerland “SKF” high quality bearing; ensure high –efficiency, stable and low noise drive.
4)Larger type strengthen feeding conditioner in entire stainless steel with frequency speed control, ensure the high quality of pellet.
5)Adopt international advanced ring die processed by heat treatment vacuum furnace, lengthen useful life and pellet is smooth with high quality.
6)International advanced level compensated serpentine spring coupling, novel and compact structure, safe, low noise and low machinery failure.
7)Adopt international advanced piping system and import pressure regulating value.
8)With full stainless steel door, flume, and pull cutter which is convenient, reliable.
9)Permanent magnet device with high performance.
10)Customize pellet mill with double layers or three layers.
Final wood Pellets:

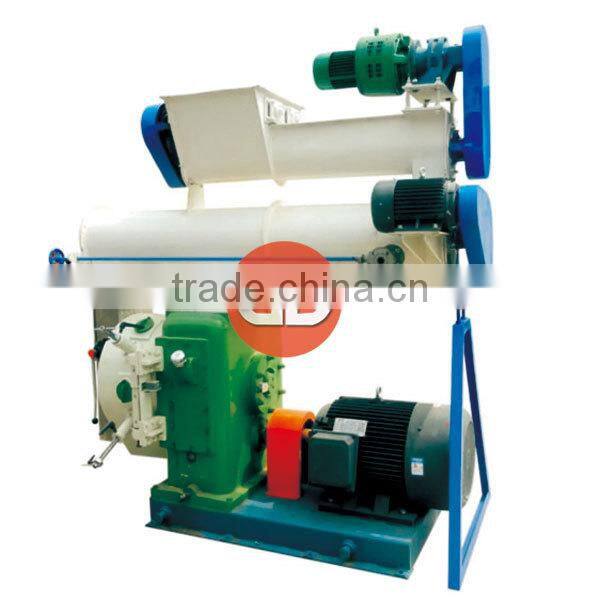

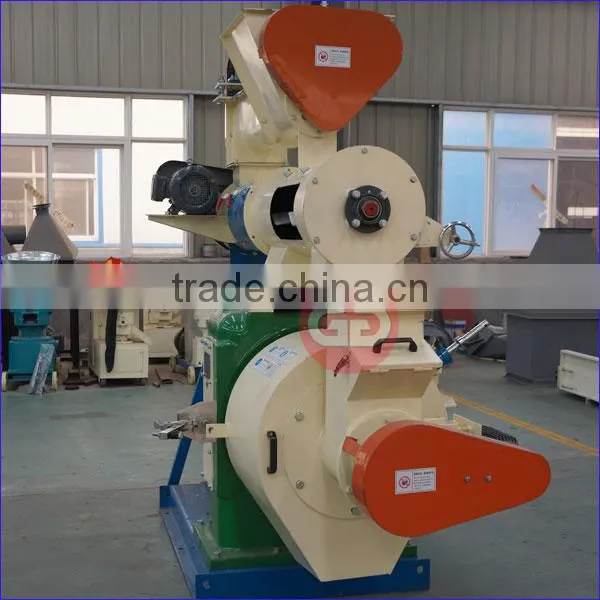

MZLH250 biomass pelletizer:
Shipping & Packaging:
1>.Lead time:Shipping within 15~20 workng days after receiving down payment.
2>.Packaging: Accessories Wrapped with plastic film or wooden case to protect machine, Full container export standard packaging suitable for long distance transport.
Our service:
1) Pre-sale Service:
Design suitable product, offer reasonable consultation and referring documents.
2) After-sale Service:On the spot guidance for installation by our enginee, and the buyer is responsible for the Expense. We have perfect after-sales service system and team with professional advice and guidance for whole using life.
3) All order will be supplied within the stipulated period.

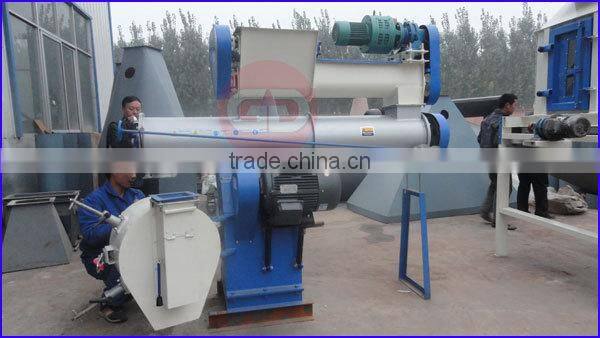

Installation:
We provide technical guidance, and also we can offer our tehnical engineer to buyer's factory for installation If buyers require to large wood pellet produciton line. Ticket, board and lodging and some related local expenses in Buyer's country for buyer's account.
Kindly advise to buyer:
If you are interested in making wood pellet, please kindly tell me:
1.What is your raw material for making wood pellet?
2.What is the size of your raw material?especially the max feeding diameter (mm)
3. What is the moisture content of your raw material?(mm)
4. What is the capcity do you need(kg/h) ?
5. What is the final pellet size do you need (mm)?
Welcome to contact us:
Good quality, mature technology, competitive price and good after-sales service.
If you want a more competitive price and more information about our China biomass pelletizer, welcome to contact us, Thanks.
