Mini Backhoe Loader for Sale

Name: Mini Backhoe Loader for Sale
Brand: GUANGDA
SKU: 139048141

US$ 3,000 - 5,000 MOQ: 1 Set

Key Specifications

Condition:

New

Application:

Farm,garden,lawn

Brand Name:

GUANGDA

Henan Guangda Textiles Imp & Exp Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Farm,garden,lawn

Brand Name GUANGDA

Model Number LW-series

Dimension(L*W*H) 2150X1300X2755

Weight 800kg

Features towable backhoe

Certification CE

Warranty 12 months

After-sales Service Provided No overseas service provided

mini backhoe loader for sale

trailed by car or tractor

3 point linkage backhoe attachment

diesel and gasoline engine for choose

full side shift with independent hydraulic supports

Specification:

• 3 Point fits most tractors with a Category 1 Hitch.

• PTO Pump and gear box.

• Reservoir Tank with Filter is optional for LW tractor backhoe loader.
• Optionable Bucket sizes 10"-22" are all interchangeable for backhoe loader.

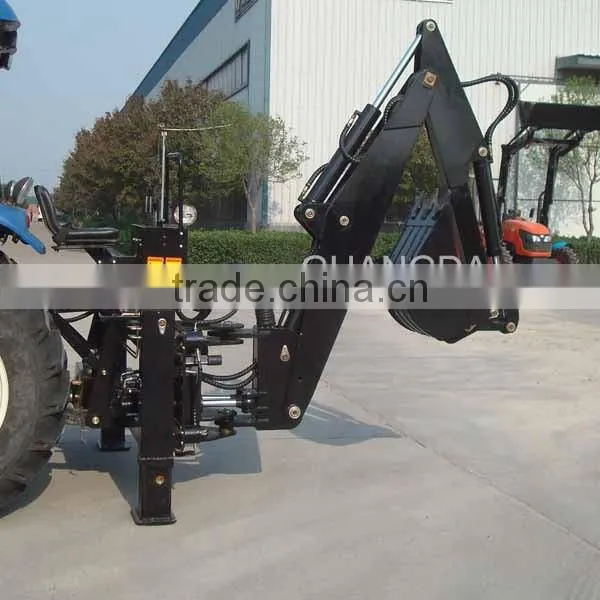

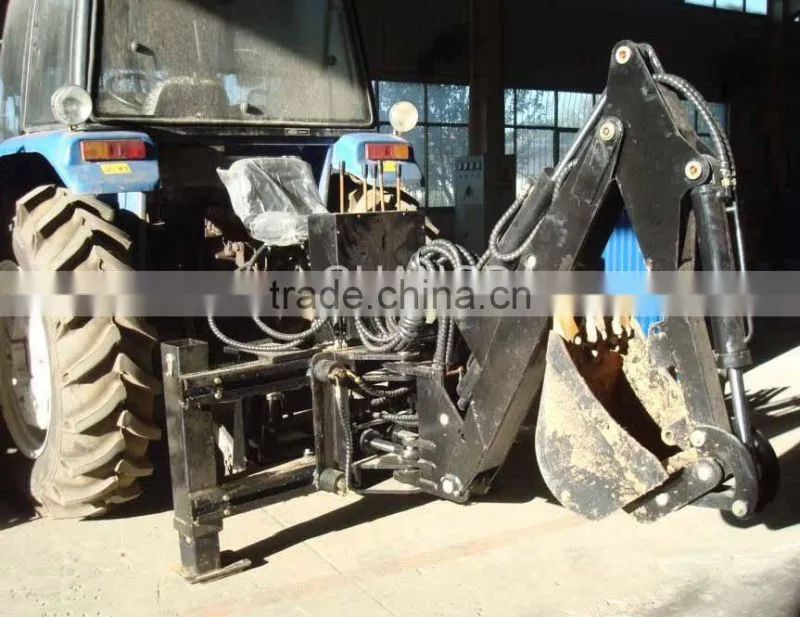

Photos of the Backhoe:

Technical Specification:

BACKHOE MODEL		LW-6	LW-7	LW-8
MATCHING TRACTOR	kw(hp)	14.7~22.1 (20~30)	22.1~36.8 (30~50)	36.8~58.8 (50~80)
MAXIMUM DIGGING DEPTH	mm	1700	2100	2600
MAXIMUM UNLOADING HEIGHT	mm	1700	2300	2500
MAXIMUM DIGGING HEIGHT	mm	2700	3300	3400
MAXIMUM DIGGING DEPTH FLAT BOTTOM	mm	1600	2000	2500
MAXIMUM SWING ANGLE		180°	180°	180°
BUCKET ROTATION ANGLE		160°	160°	160°
BUCKET CAPACITY	CBM	0.03	0.048	0.06
BUCKET WIDTH	MM	340	380	420
WEIGHT	KG	450	500	540

Packing & shipping

Our Services

Pre-sales	Service online for 24hours to wait for your inquiry
Sale tracking	Provide specification, photos, and delivery cost for you. Answer your questions and solve your problems at any time.
After-sale service	12months warranty for the machine without wearing parts. We will deliver damaged parts (except wearing parts) for free based on quality problem within warranty period. Wearing parts are also sold to match your machine if needed.
After-sale service process	If some parts damaged, please take photos and shoot video firstly, please send us in time. We will pass your problems to our after-sale department to deal with. Solution will be provided for you as soon as possible.
