2015 new design rotary dryer for powder and pellet drying :
1. Working Principles of small drum rotary dryer :
The heat source of small drum rotary dryer is from combustion devices. This high efficiency multifunctional small drum rotary dryer adopts direct flow heating method. So the material should be sent to the shell by the feed chamber and feed chute. After that the material will be pushed backward by the spiral shoveling plate. As the machine is located with a tilt, the material flows to the end by the gravity and circumduction meanwhile it is shoveled repeatedly by the shoveling plate to the upper end then comes down constantly, forming an even curtain in the drum and exchanging heat fully with the hot current in the drum. With the material being raised and scattered again and again, the moisture is dried by multifunctional dryer gradually. Finally it is dried totally.
2. Main technology parmeters:
|
Model [diameter*length](mm) |
Gradient (%) |
Rotary speed (r/min) |
Inlet temperature (C) |
power (kw) |
Production capacity (T/hour) |
Weight (T) |
600*6000 |
3-5 |
3-8 |
=<700 |
3 |
0.5-1.5 |
2.9 |
800*8000 |
3-5 |
3-8 |
=<700 |
4 |
0.8*2.0 |
3.5 |
800*1000 |
3-5 |
3-8 |
=<700 |
4 |
0.8-2.5 |
4.5 |
1000*10000 |
3-5 |
3-8 |
=<700 |
5.5 |
1.0-3.5 |
5.6 |
1200*10000 |
3-5 |
3-8 |
=<700 |
7.5 |
1.8-5 |
14.5 |
1200*12000 |
3-5 |
3-8 |
=<700 |
11 |
2-6 |
14.8 |
1500*12000 |
3-5 |
2-6 |
=<800 |
15 |
3.5-9 |
17.8 |
1800*12000 |
3-5 |
2-6 |
=<800 |
18 |
5-12 |
25 |
2200*12000 |
3-5 |
1.5-6 |
=<800 |
18.5 |
6-15 |
33 |
2200*14000 |
3-5 |
1.5-6 |
=<800 |
20 |
8-15 |
41 |
2200*18000 |
3-5 |
1.5-6 |
=<800 |
22 |
10-18 |
53.8 |
2200*20000 |
3-5 |
1.5-6 |
=<800 |
30 |
12-20 |
56 |

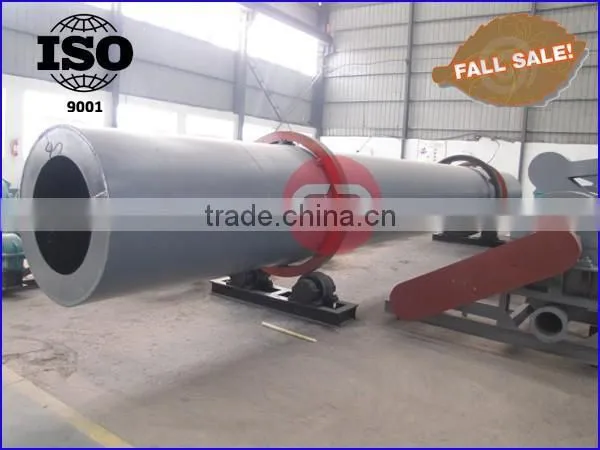

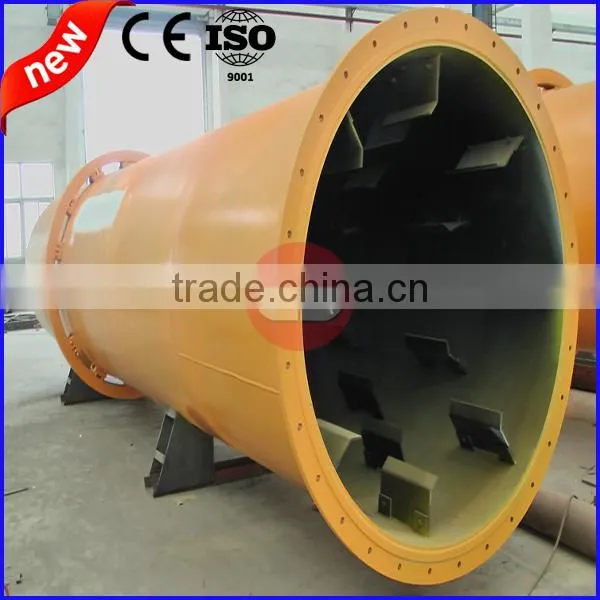

3. The small drum rotary dryer with CE and ISO certification:

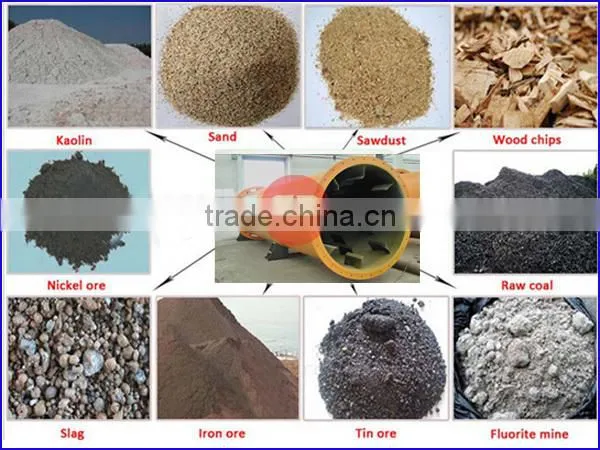

4. Wide application ranges:

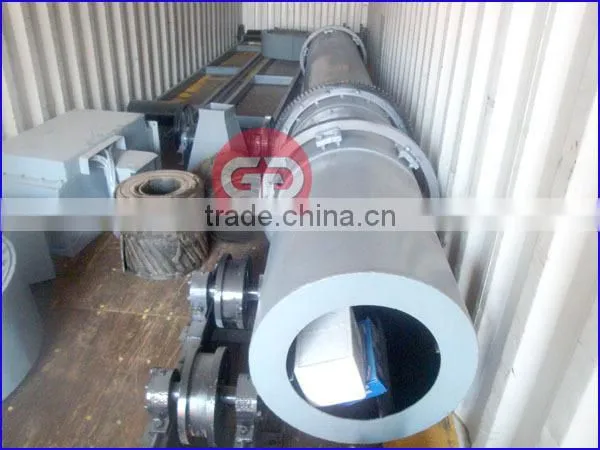

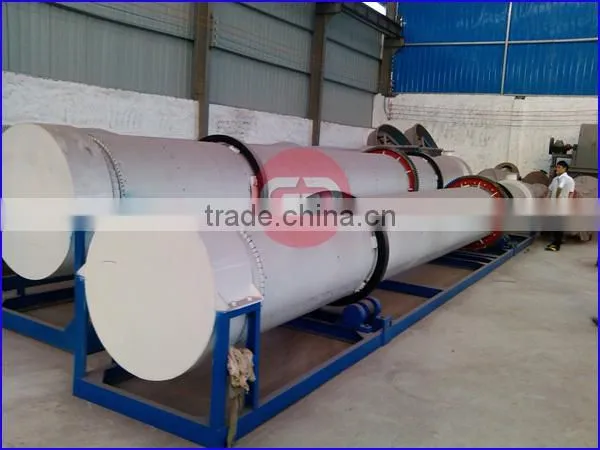

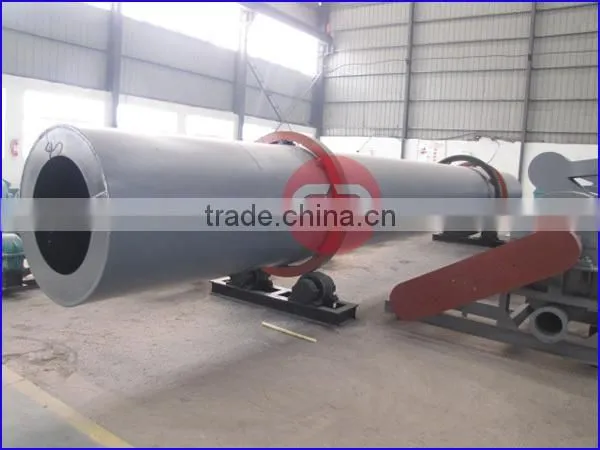

5. Finished products in the warehouse under delivery:

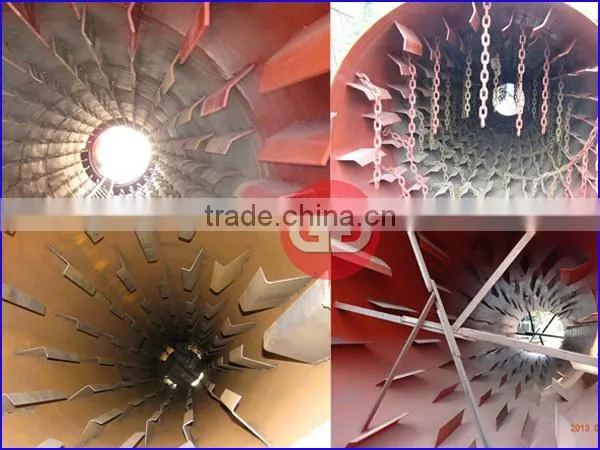

6.Inner structure:

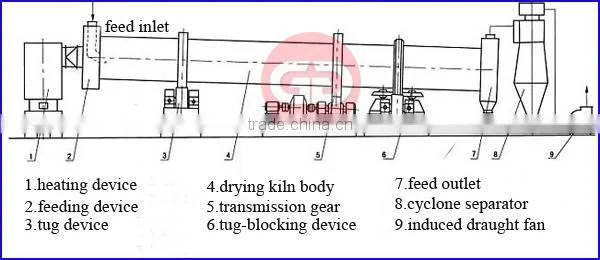

7. Structure of small drum rotary dryer's outline:
The detailed structure shows a clear appearance of itself. It is easy to operate and maintain for the users.The diameter and the capacity of small drum rotary dryer are also can be adjustable according to customers' spesific requirements.
The small drum rotary dryer consists of rotary body, throwing flitch, transmission device,
supporting device ,sealing ring,heat source, beater device, belt loading machine, feeding machine, rotary roller, belt discharger, draft fan, discharger, and switch board.
9. Delivery:
This finished small drum rotary dryer is under delivery to our clients. The color is based on our customers' needs. As this is high efficient and has a wide use, it is a hot selling machine both in China and other countries.
After-sales Service:
1) Highly inspecting equipments in every working procedure, quality comes first;
2) Fast & Safe Delivery the finished rotary dryer that is with standard exporting packages;
3) Assisting our clients for foundation construction of equipments;
4) Dispatching engineers to install and debug equipments;
5) Training the first-line operators to operate small drum rotary dryer on site;
6) Regularly visit clients to solve production problems
7) Providing life-long maintenance service;
8) Providing technical exchanging;
If you have any need or question, please feel freely to contact Dido Fu:
Skype:DidoFu1107 E-mail:xltxc @gdbloc.com
Tel:+86-371-56668520 Fax:+86-371-55989982
Mob:+86-13073797095
or visit our company website:
Looking forward to building the long business relations with you.
