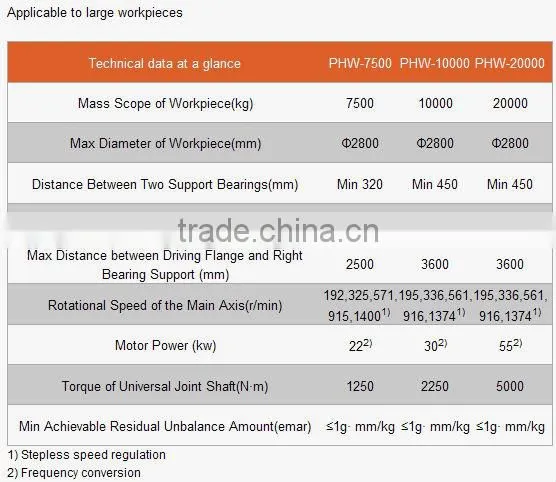

Specifications
Balancing Machine Specs.:Advanced electrical measuring system and friendly man-machine interface

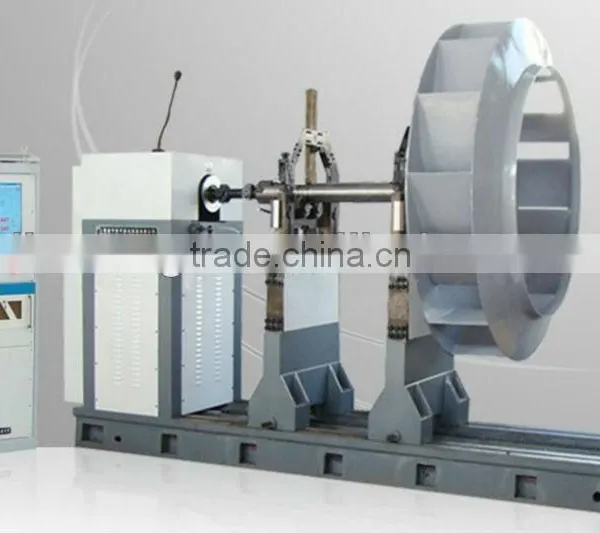

Universal Joint Drive Balancing Machine
We offer a standard range of Universal joint drive balancing machine that cater for rotors from a few kilograms to a maximum weight of 30,000kg and 2800mm diameter. As a specialist manufacturer, they also manufacture custom and special Universal joint drive balancing machine to suit virtually any type of rotor.
SAFETY
Universal joint drive balancing machine are designed, manufactured and tested in the SGS to ISO standards and customer specific standards. Fulfill all current safety and health requirements.They incorporate the latest proven technology and repeatability, and achieve much faster results than comparable machines on the market.
RANGE OF APPLICATION
Mainly used for balancing rotating workpieces, such as medium and large-sized motor rotors balancing, blowers balancing, pump impellers balancing, drying cylinders balancing, centrifugal impeller balancing and rollers balancing etc..Driving by universal joint or gear box universal coupling offers several rotational speeds and stepless speed control , large driving power, high precision and easy operation etc
SPECIAL FEATURES
Three measuring systems are optional,Digital/LCD Display of measured value and angle,direct and easy to read.High Precision: multi-Calibration coefficient combination, automatically adjust the system sensitivity, no shift-skip,dual wave filtration by both hard and soft-ware,high speed data compression, faster,more stable and accurate measurement,DIY unit:Balance unit displayed, angle unit and precision displayed can be defined byuser.A real-time unit conversion is available to meet different requirement .
