Biomass Briquette Machine/Coconut Shell Briquette Machine
Brief introdction:
Our briquette machine can make briquette from sawdust, wood , rice husk, coconut shell , straw and other wood materials. The finished briquette stick can be used as fuel for boiler, stove , BBQ and so on.
Working principle:
uses a large screw to grind, compress and extrude the biomass into briquettes. The natural lignin content in biomass is liberated with wood fiber under high pressure and temperature. In the briquetting process lignin serves as the glue and combines the particles of wood together, thus binding, compressing the biomass to form into various moulds of high density briquette, such as hexagonal, quadrangular, square, etc. During this process, non-binder needs to be used.
The advantage of sawdust briquette machine :
(1) No need binder
(2) High quality propeller
(3) No smoking
(4) High density briquette
(5) Make complete production line
Main data:
Model |
ZBJ-III |
ZBJ-II |
ZBJ-I |
Output (KG/H) |
250-300 |
230-280 |
150-180 |
Power (KW) |
22 |
18.5 |
15 |
Electric Heater (KW) |
3X2.2 |
3X1.5 |
3X1.5 |
|
Output Products Size Diameter(MM) |
70-90 |
50-70 |
50 |
Machine Dimension Size(MM) |
1670X670X1550 |
1700X720X1330 |
1660X745X1250 |
Weight (KG) |
700 |
650 |
550 |
Note : The working principle is by high pressure and high heating temperature ;
The heating temperature is around 300°C to 330°C ;
The screw gap could be the size as 32mm, 36mm, 40mm

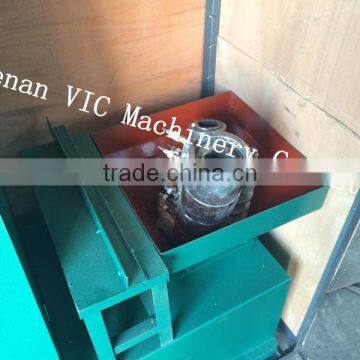

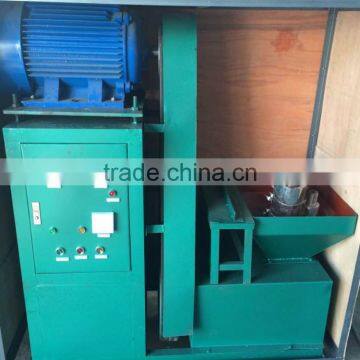

Machine photos :
Innner structure :
1. Electrical control box 2. Motor 3. Under hopper 4. Body 5.Body 6. Propeller 7. Wear sets 8. Forming cones
Photos of spare parts :
Propeller:
Forming cyliner and Mounting Inner-sleeve:
Heating collar:
The raw material of briquette machine :
Wood chips, maize stalks, soybean stalks, broomcorn stalks, cotton stalks, rape stalks,
peanut plants, sunflower stalks, bamboo saw dust, bagasse etc.
The process of briquette making plant :
Wood crusher(Hammer mill)-Sawdust dryer ---Briquette making- charcoal stove
Finished products:
All our package are standard fumigated wooden box, we need around 5 working days to finish the machine and ready to deliver. If want extra spare parts pls notify when place order.
Quality guarantee is one year. Spare parts we supply at factory cost lifetime.
We will be responsible for any broken which are caused by machine-self and quality problem, other situations which are caused by wrong operation, man-made problems etc will be in buyer’s response, and we will help to solve by video asap, if big problem we will send engineer to working site within 1 week.
