Home > Products > Vulcanization equipment > hot vulcanizing machine
hot vulcanizing machine
- 10 Set / Sets per Month
- Qingdao port
- T/T
Product Details
Condition: | New | Type: | Vulcanizer | Place of Origin: | Shandong, China |
Brand Name: | XZD | Model Number: | XLG-1200*4000 | Voltage: | 220V or 380V |
Power(W): | Adjustable | Dimension(L*W*H): | 5000*2000*2400 mm | Weight: | 3.8T |
Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
The features of the conveyor belt hot vulcanizing machine
Conveyor belt hot vulcanizing machine is a pressure vessel with speed open door, the autoclave openings sealed with inflatable silicone ring or internal pressure self-tight rubber pad. Mechanical or manual gearing is used to lock and open the lid, reasonable structure, convenient operation, good sealing performance, the temperature in the tank is uniform, furthermore, complete safety accessories (equipped with safety interlock device).
Electric heating syetem has been equipped in this machine to provide heat for the sterilization. Users can use it without boiler. Especially benefit to the users which has a small capacity.
Picture presentation

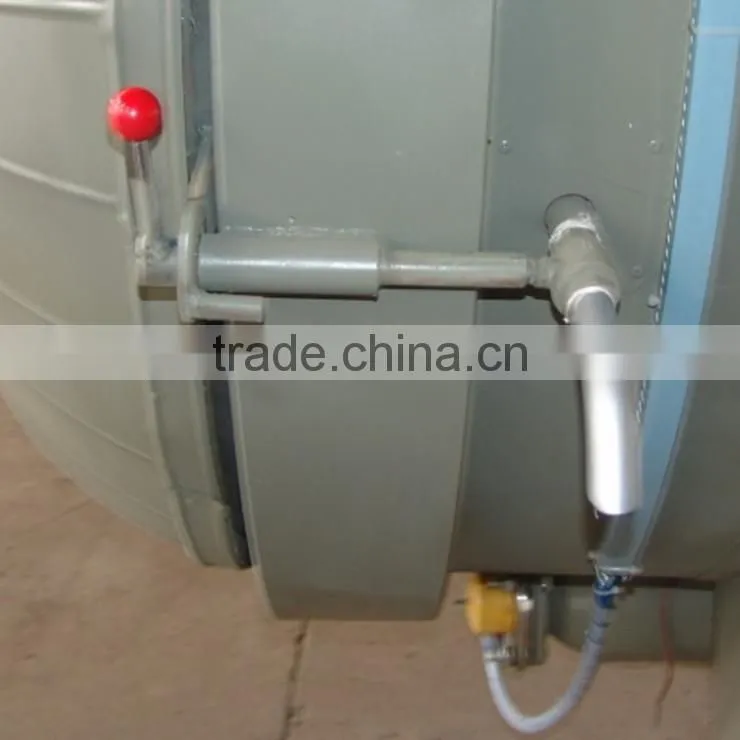

1.Safety interlock (safety interlock system)

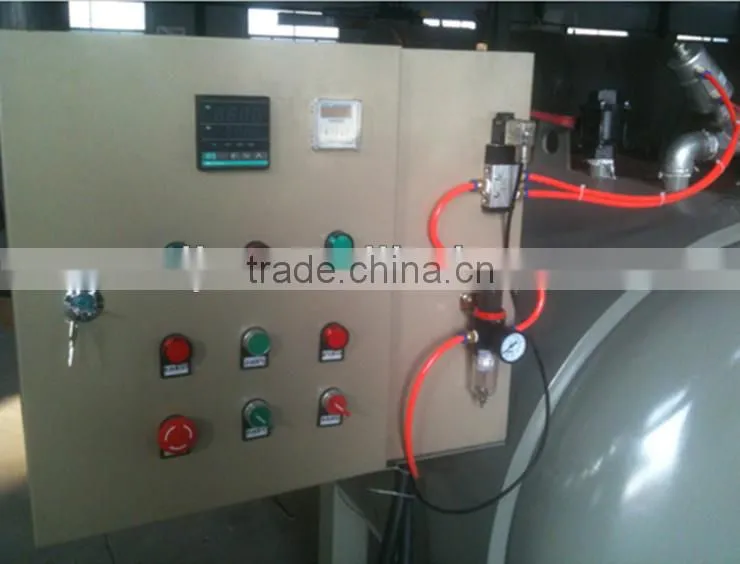

2.Automatic electrical control (semi-automatic control box)

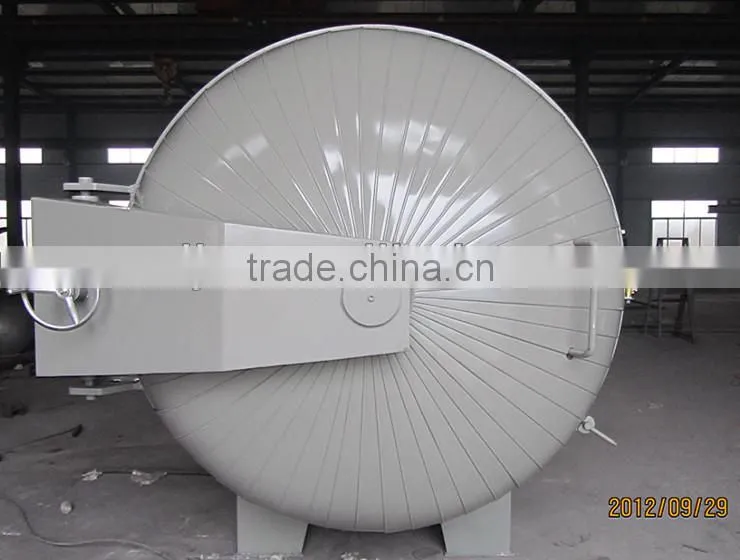

3.Door (with arm and handle wheel)
4.electric heater (steam generated by electric heater in the bottom of the tank)
Technical parameter
Type | XLG-1200*4000 | ||
Volume (m³) | 8 | Steam inlet diameter (mm) | DN40-50 |
Cylindrical body size (mm) | 1200*4000 | Exhaust diameter (mm) | DN32-40 |
Overall dimension (L*W*H)(mm) | 5000*2000*2400 | Water outlet pipe diameter (mm) | DN40-50 |
Design temperature (°C) | 180 | Safe valve diameter (mm) | DN25-50 |
Design pressure (MPA) | 0.8 | Medium | Steam |

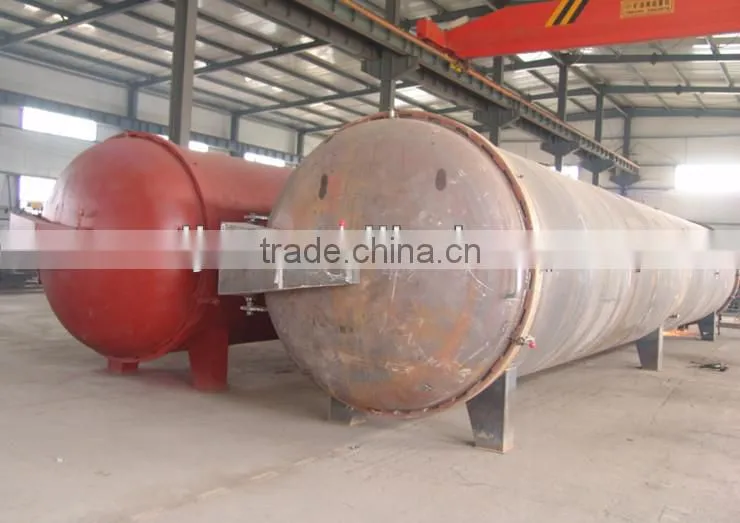

workshop
Ranges of application
It is mainly used for rubber tyre retreading, reclaimed rubber desulphurization, wire, cable, tape, rubber rollers and other rubber products vulcanization. styrene-butadiene rubber thermoplastic refining, drying wood, Chinese medicine sterilization, oxidation of aluminum products, carbonization of bamboo products, Also widely used in the gypsum and its products and other materials autoclaving.
Welcome home and abroad call or visit and agents around the country
are invited to join, and seek common development.
