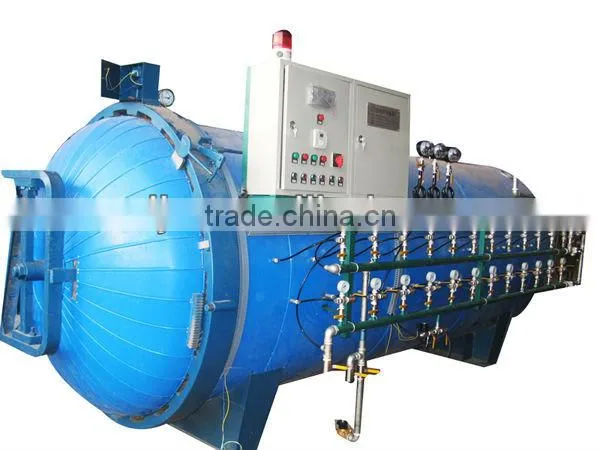

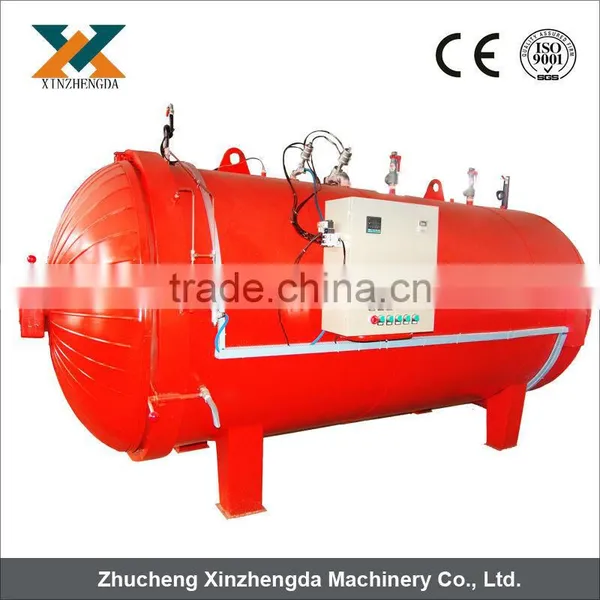

The feature of XZD series Tire Vulcanization equipment
1. Automatic alarm, Automatic timing
2. Optional: electrical oil and steam heating
3. Automatic door system and three t safety interlock
4. Automatic compensation function on temperature, pressure
5. Multifunctional system controls temperature, pressure, curing time
Temperature:100~160°C
Vulcanizing tank pressure:0.5~0.6Mpa
Automatic complete pressure:0.7~0.8Mpa
Packet envelope pressure:0.4Mpa
Working time of the packet envelope:Automatically start when the temperature reach 100°C and the pressure reach 0.48Mpa.
Operation:After manual closed the door,The vulcanization tank’s quick open door motor source is connected,press the door close button,then the vulcanization tank begin to enter the self-control state.

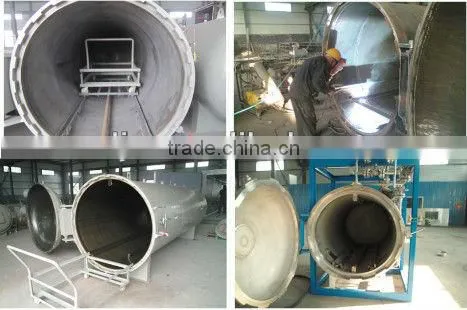

Advanced spare parts
Technical parameter
Item |
800 |
1200 |
1500 |
1700 |
2000 |
2600 |
Inner diameter(mm) |
800 |
1200 |
1500 |
1700 |
2000 |
2600 |
Canister length(mm) |
22000 |
3000 |
3000 |
4000 |
5000 |
10000 |
Number of lid sawtooth |
12 |
12 |
14 |
14 |
16 |
24 |
thickness of lid (mm) |
10 |
10 |
10 |
10 |
16 |
14 |
Thickness of the tank body(mm) |
10 |
10 |
10 |
10 |
12 |
14 |
Working pressure(Mpa) |
0.8 |
0.8 |
0.8 |
0.8 |
0.8 |
0.55 |
|
Dimensions(mm) (length*width*height) |
22766*1445 |
4010*1575 |
3960*2150 |
4925*2162 |
6200*2590 |
11722*3360 |
Weight(Kg) |
5580 |
2017 |
2950 |
3835 |
6500 |
16775 |

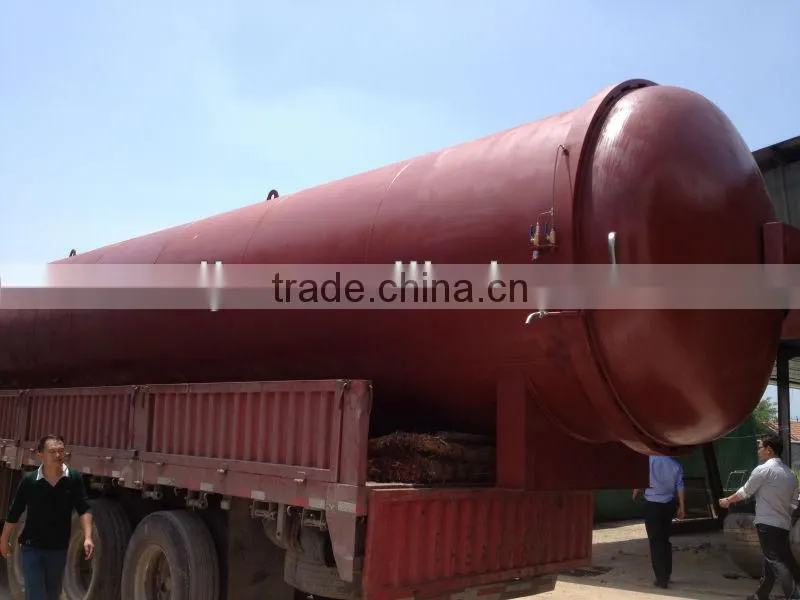

Delivery
Exhibition
Ranges of application
It is mainly used for rubber tyre retreading, reclaimed rubber desulphurization, wire, cable, tape, rubber rollers and other rubber products vulcanization. styrene-butadiene rubber thermoplastic refining, drying wood, Chinese medicine sterilization, oxidation of aluminum products, carbonization of bamboo products, Also widely used in the gypsum and its products and other materials autoclaving.
