Reliable Performance magnetic seperation
Application:
The magnetic drum is usually equipped with two kinds of tanks, which are called down current tank (CTS series) and semi-counter current tank (CTB series).
CTS series down current tank is applicable to rougher flotation and concentration of minerals with size: 0~10 mm.
CTB series semi-counter current tank is applicable to rougher flotation and concentration of minerals with size: 0~1 mm.
Feature:
1. Adopting advanced magnetic circuit design,deep magnetic effective depth and high recovery.
2. Simple and compact structure, low failure rate.
3. Easy to maintain, easy installation, reIiable performance.
4. Stable and reliable driving device, trouble-free operation for a long time.
what is magnetic seperation— Product principle

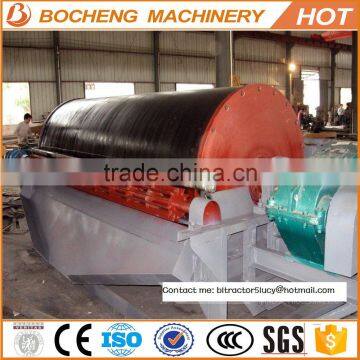

Semi-counter-current wet permanent magnetic drum separator
Working principle: slurry is fed into cavity from the bottom of drum, and the magnetic ores fall into concentrate tank after reaching a certain height, while the non magnetic ores will enter into tailings tank along with slurry in the opposite direction with drum.
Counter-current wet permanent magnetic drum separator
Working principle: slurry flows over against drum, which create great conditions for cleaning of non magnetic ores. The non magnetic ores approach the clean surface of drum and the magnetic ores can be absorbed in the strongest magnetic field.
Fair-current wet permanent magnetic drum separator
Working principle: slurry flows in the same direction with drum.
