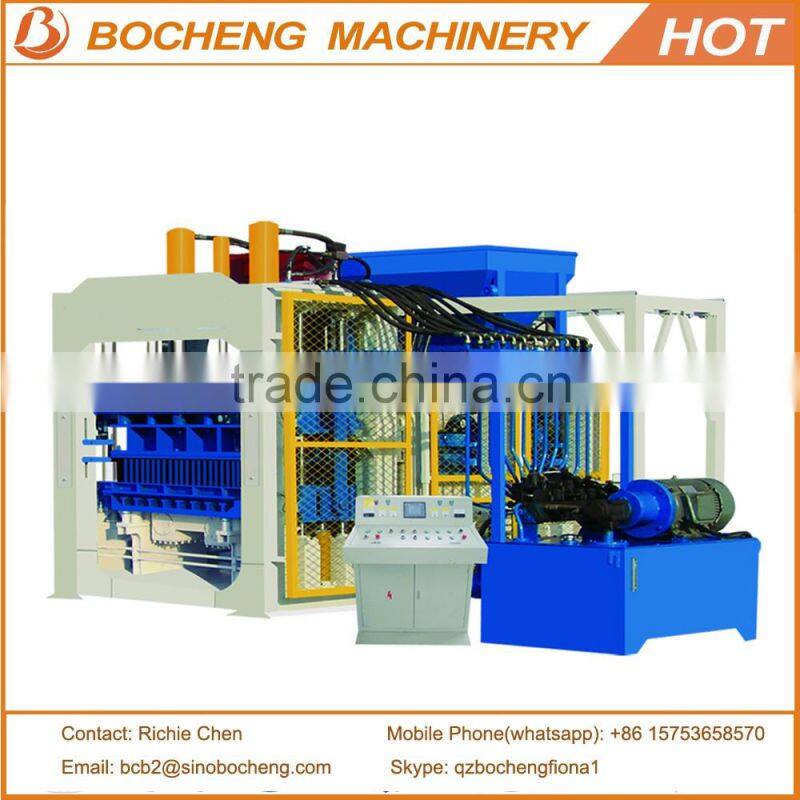

German Technology QT10-15 Concrete Block Making Machine Price in India
1.Brief intruduction :
Particular storage and discription material system insure the feeding accuracy and avoiding the effect of exterior material. So the products have high density.
Adopting synchronization vibration insures the products making average
The frequency can change according to different technics. Low frequency in feeding material, high frequency vibration makes the different material to have a optimal vibration way.
The computer is of fault diagnosis system. Warning signal is propitious to eliminate the fault. Combine with long-distance controlling system, it can achieve scrutiny, controlling, diagnosis.
2.Control system:
PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn’t need a professional person but only need a simple trainning to the operator.
Product scope:
It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.
3. Main technical specifications:
Main Technical Specifications | |
Overall Dimension |
9350×2320×2950(mm) |
Rated pressure |
21MPa |
Main vibration form |
Platform vibration |
Cycle Time |
15-25 seconds |
Vibrating Frequency |
2800-4500 rolls/minute |
Motors Power |
44.58KW |
Pallet Size |
1100*900(mm) |
Raw Materials |
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, pearlite, and other industrial wastes. |
Applied Products |
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc. |

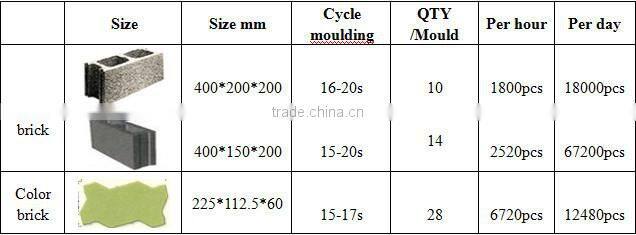

4.Productivity of QT10-15 block making machine
6. Block Moulds:
Nude and package in 40HQ containers.
(1) We can supply our customer for designing, production, installation, commissioning, training and good after-sale service.
(2) The customers should pay for the cost of visa , room and board, and the round-trip tickets for our engineers.
As the honest supplier of construction machines, including:
brick making machine (14.25kw~44.58kw), wheel loader(0.6t~12t), forklift(2t~10t), road roller, motor grader, dump truck, etc.
We take series design & solution for brick making machines, we will take right machines to our customer, creat both successful.
Welcome your contact and visiting.
