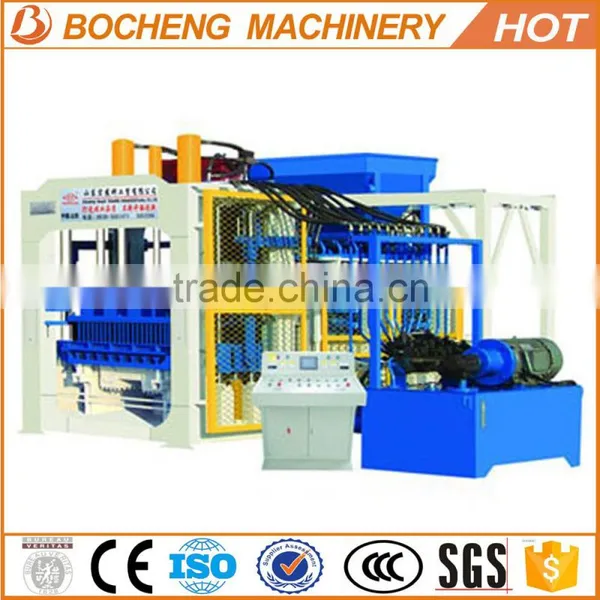

Superb Friendly Reliable Performance Concrete Block Making Machine Price List
US$ 10,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Paving Block Making Machine
Brick Raw Material:
Other, Fly Ash/ Cement/ Gysump/Crush Dust
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QT10-15 Fully Automatic Concrete Cement Brick Block Making Machine PriceUS$ 10,000 - 50,000MOQ: 1 Set -
Superb Friendly Reliable Performance Concrete Hydraform Block Making Machine PriceUS$ 10,000 - 50,000MOQ: 1 Set
-
Superb Friendly Reliable Performance QT12-15 Automatic Concrete Hollow Block MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
Superb Friendly Reliable Performance QT10-15 Moderate Price Concrete Block MachineUS$ 10,000 - 50,000MOQ: 1 Set
-
Superb Friendly Reliable Performance QT12-15 Interlocking Block Making MachineUS$ 10,000 - 50,000MOQ: 1 Set
Condition
New
Type
Paving Block Making Machine
Brick Raw Material
Other, Fly Ash/ Cement/ Gysump/Crush Dust
Processing
Brick Molding Machine
Method
Autoclaved Aerated Concrete
Automatic
Yes
Capacity
Day
Place of Origin
Shandong, China
Brand Name
BOCHENG
Model Number
QT8-15
Voltage
220V/380V/440V
Power
37kw
Dimension(L*W*H)
8400*1700*2950mm
Certification
ISO9001
Warranty
12months
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
ⅠBrief intruduction :
Changing molds can produce various kinds of specification porous bricks, standard bricks, hollow bricks, with a double material-feeding machine can produce all kinds of the colored road bricks,grassland bricks, and slope protection bricks etc.
n It adopts the PLC operating system, and the action procedures lock with each other,which can guarantees the machine safely and dependablely in the operation procedure.
n The unique forcing material-feeding system and a specialized
ⅡControl system:
PLC intelligent control. Man-machine interface, control system equipped with complete logic control, production program, malfunction diagnosis system and remote control function. So it doesn’t need a professional person but only need a simple trainning to the operator.
Product scope:

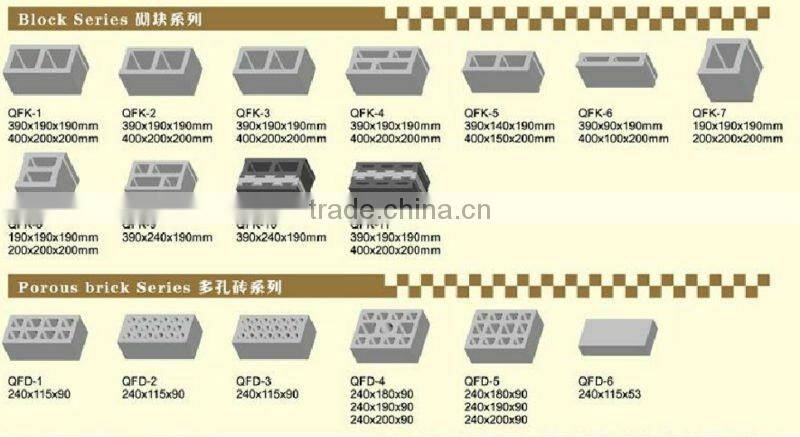

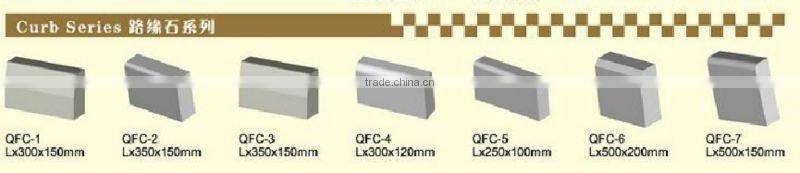

It produces various bricks/blocks including color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.

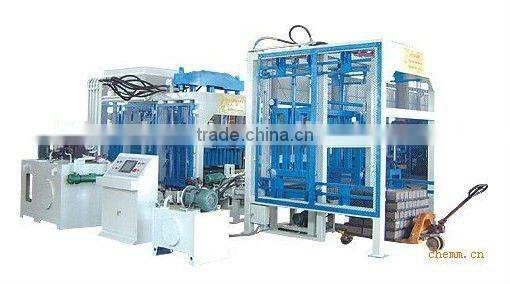

Item: Full Automatic Concrete Paver Stones Making Machine
Germany Technology,Made in China
1. The QT815 hydraulic fly ash brick making machine is excellent in performance, high in efficiency,
1. The QT815 hydraulic fly ash brick making machine is excellent in performance, high in efficiency,
And lower in energy consumption. Since putting into the market, good economic profits
And social benefits have been achieved.
1). Using Germany Siemens Motor, which is the best motor brand in the world. Its lifespan Is 1.3 times than that of common motor.
2). Japan Mitsubishi PLC control system and Omron travel switch, achieving dialogue and Exchange between man and machine. Dozens of mechanical action of different products Could be adjusted through the menu to select the addition and subtraction without needing professionals.
3). As a multipurpose machine, exchangable mold can produce normal bricks, hollow bricks, multi-holes' bricks
4). Scatter material through revolving 360 degree, this process likes to mix the material Again after the mixer, the technology makes the blocks evenly and high density
5). Mould got heat treatment and carburization, making the antiwear ability 1.2 timEs as the other mould
6). When pressing, the excess oil will be turned to Li Zhen-hit, and computer controlled Directional vibration, frequency and brake to cancel the vibration energy
7). Feeding in low-frequency, vibrating in high-frequency, and increasing in Head tanks.
2. Required area of high density blocks hydraulic fly ash brick making machine QT8-15B :
Work area: 150m2-200m2 6-8 workers
Total area: 2000m2(theoretically), you can arrange it with your own situation
3. Scale of raw material of high density concrete blocks hydraulic fly ash brick making machine QT8-15B :
1.8%-10% cement, 30%-40% sand, 50%-60% stone(less than 15mm)
2.8% cement, 60% sand, Fly ash 30%, 2% gypsum.
4. Guarantee of concrete kerb machines hydraulic fly ash brick making machine :We will supply one year guarantee about our interlocking block making machine, when the client have the question
4. Guarantee of concrete kerb machines hydraulic fly ash brick making machine :We will supply one year guarantee about our interlocking block making machine, when the client have the question
They could call our service department number any time, we will supply per day 24 hours service.
Within one year, if the client meet the unsolvable questions, we could fly to client place to help

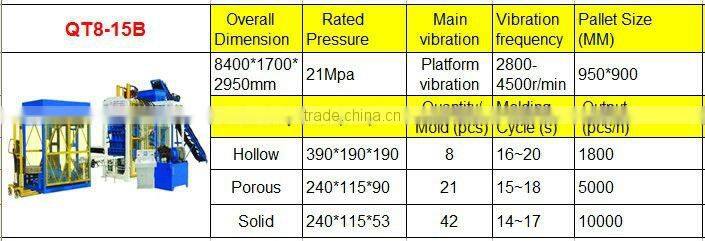

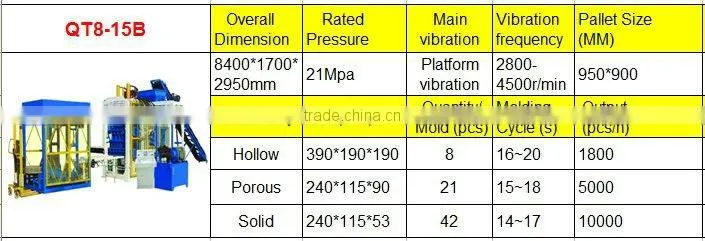

| Size(LxWxH) | Pcs/Mould | Pcs/ Hr | Pcs/ 8 Hr | m3/year |
| 400X100X200 | 14 | 2100-2940 | 16800-23520 | 48384-64512 |
| 400X150X200 | 10 | 1500-2100 | 12000-16800 | 51840-69120 |
| 400X200X200 | 8 | 1200-1680 | 9600-13440 | 55296-73728 |
| 400X250X200 | 6 | 900-1260 | 7200-10100 | 51840-69120 |
| Paver:200X100X60 | 28 | 4200 | 33600 | |
| Paver:200X163X60 | 12 | 1800 | 14400 |
