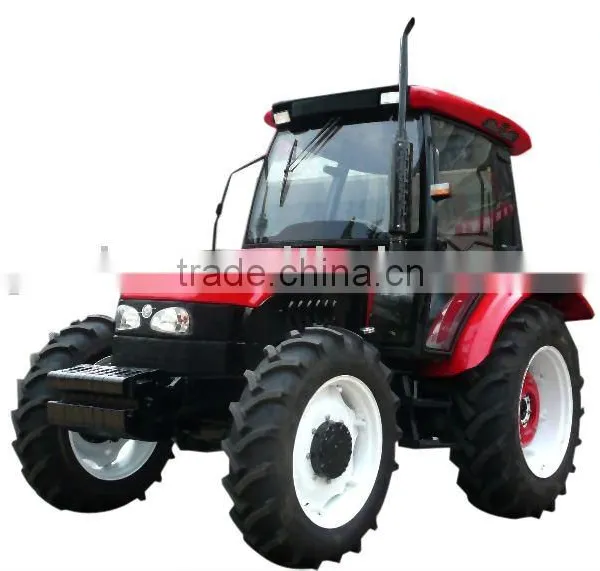

TS1004 Wheeled Tractor with DEUTZ Engine

Main Technical Data of TS 80-100HP Series wheeled Tractor

Model

TS800

TS804

TS900

TS904

TS1004

Engine

Engine type

DEUTZ 226B-4T2

4MC-T61Y

DEUTZ 226B-4T3

Feature

4 cylinder, 4-stroke, water cooling, straight line, direct injection.

Natural aspiration

Pressure increasing

Cylinder number

4

Bore*stroke mm

105*120

108*135

105*120

Rated power (kw)

59

66.2

73.5

Rated revolution (r/min)

2400

2300

2400

Fuel consumption (g/kw.h)

≤230

242

≤225

Speed of max, torque (r/min)

270

≥323

351

Engine oil conditions (g/kw.h)

≤1.36

≤1.63

≤1.36

Lubricating method

Pressure and splash lubricating

Cooling method

Forced circulating water cooling

Transmission

Clutch

LUK Single disk, dry-type, independent operation, two-stage

Transmission box

27 forward gear,9 reverse gear (with creeper)

Brake assembly

Foot controlled, hydraulic operating, single disk
