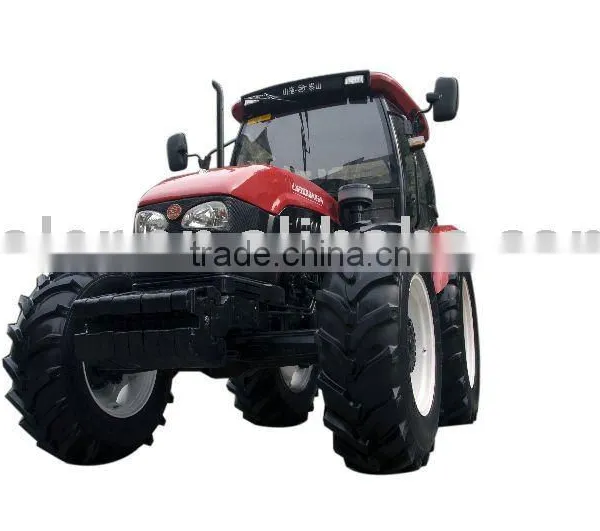

TS1204, 120HP, 4WD big farm Tractor with DEUTZ Engine

Main Technical Data of TS 80-100HP Series Tractor

Model

TS800

TS804

Engine

Engine type

DEUTZ 226B-4T2

Feature

4 cylinder, 4-stroke, water cooling, straight line, direct injection.

Natural aspiration

Cylinder number

4

Bore*stroke mm

105*120

Rated power (kw)

59

Rated revolution (r/min)

2400

Fuel consumption (g/kw.h)

≤230

Speed of max, torque (r/min)

270

Engine oil conditions (g/kw.h)

≤1.36

Lubricating method

Pressure and splash lubricating

Cooling method

Forced circulating water cooling

Transmission

Clutch

LUK Single disk, dry-type, independent operation, two-stage

Transmission box

27 forward gear,9 reverse gear (with creeper)

Brake assembly

Foot controlled, hydraulic operating, single disk
