Specifications
1. Hydraulic transmission2. Adjustable bale density
3. Automatic picking-up&baling
4. Germany imported knotting device
Specifications
1 Longer life span
2 Bale in good solid shape
3 High success rate
4 Knotter is imported from Germany
Square bale bundling machine
Model: FK-2060
Square hay baler/mini square baler/straw baler
ing width:144-188cm
2.hydraulic transmission
3.automatic picking-up&baling
4.adjustable bale density

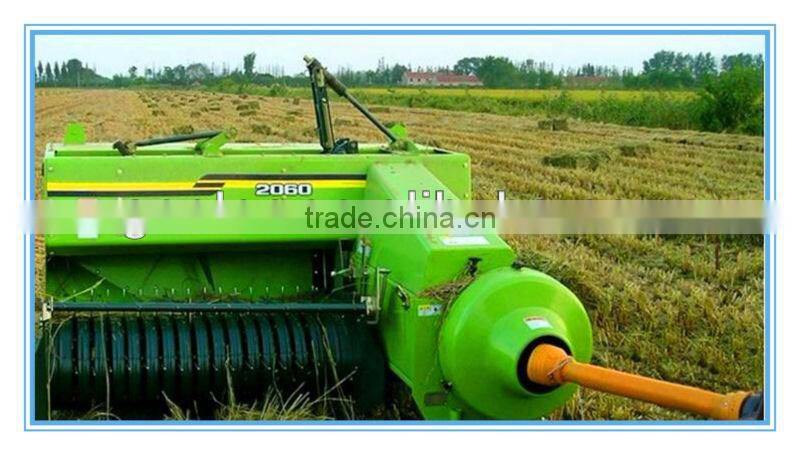

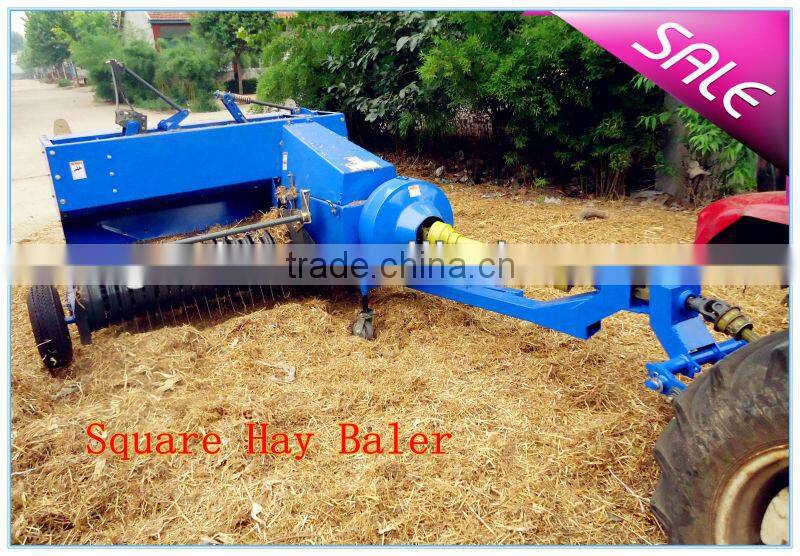

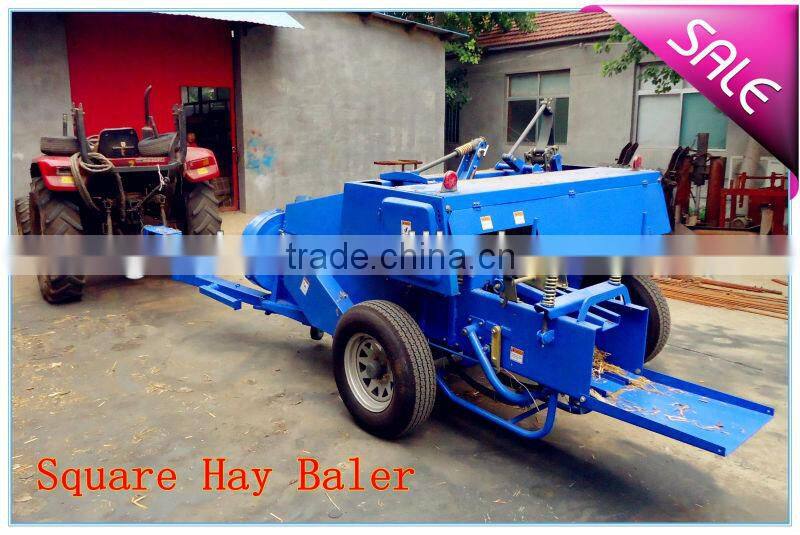

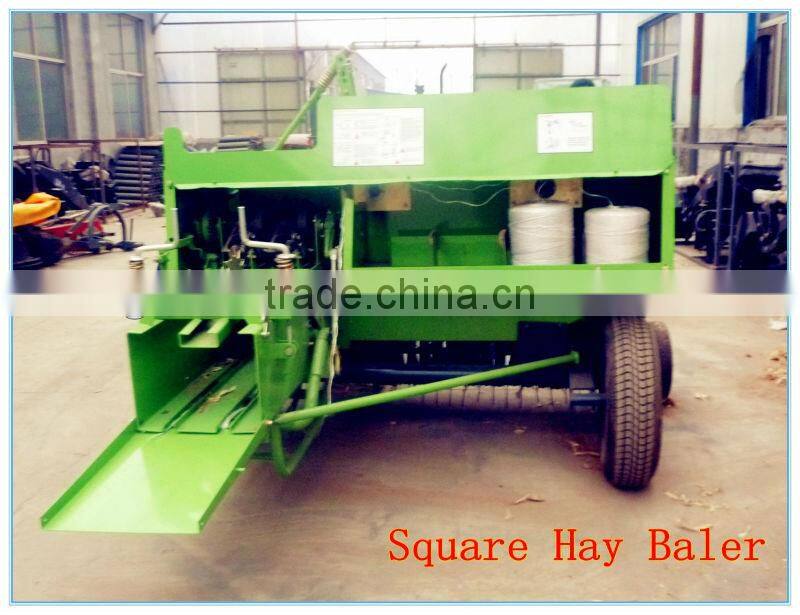

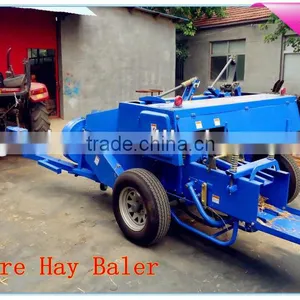

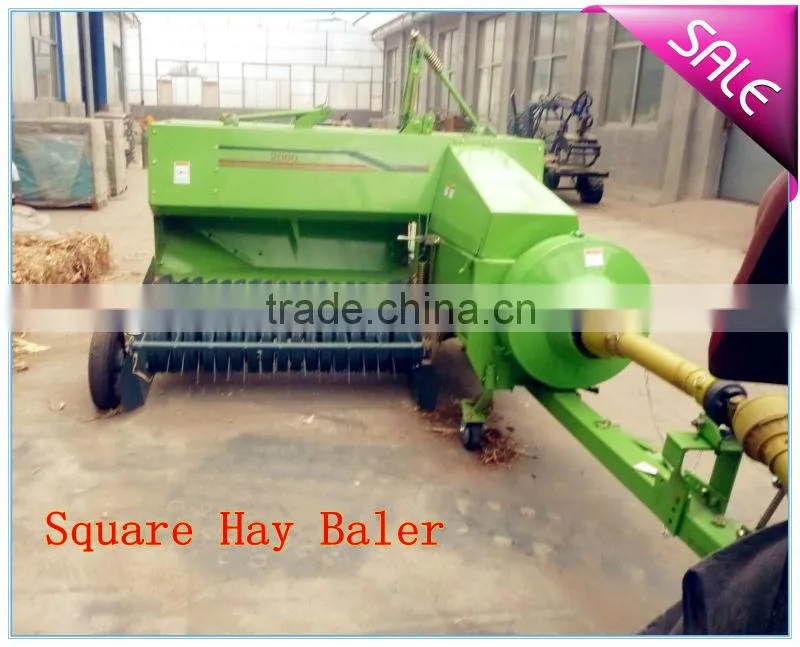

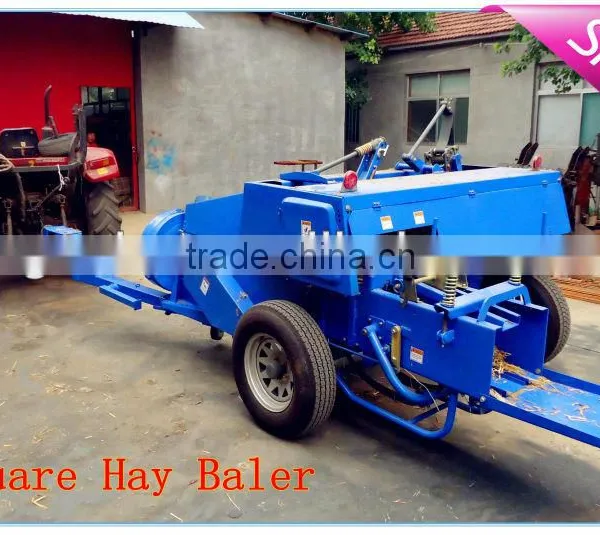

FK self-propelled square hay baler for sale!
A.Main Features of square hay baler:
1.picking-up and baling at one time
2.easy to transport and storage after strapping
3.small volum;light weight;compact structure;easy to operate
4.used along with combine harvester to achieve the best effect,save time and effort
5.auto alarm mechanism and hydraulic operation mechanism
6. automatically loosen ropes, bale and cut ropes when the baling is done
7. the rope circle and baling density can be adjusted to prevent the bundle from scattering
B.Application of square hay baler:
Square hay baler are widely used for collecting and baling alfalfa, hay,silage,wheat,rice straws and crumbled corn stalks,convenient for transportation, preserving and further processing.
Main feature
1- Special designed pick up device.
2- Germany imported knotting device. High success rate, long life span, grass bale uniform, in good shape and solid.
3- Positive traction, total width of the machine is small, so it has wide application and much suitable for small size and irregular land.
Technical data
Model No. |
FK-2060 |
FK-3060 |
Section dimension |
32cm×42cm |
36cm×48cm |
Baler length |
30-100cm(adjustable) |
60-120cm(adjustable) |
Dimension |
410cm×215cm×130cm |
500cm×280cm×140cm |
Weight |
1030kg |
1460kg |
Working width |
144cm |
180cm |
No. of spring teeth |
32 |
44 |
No. of line for spring teeth |
4 |
4 |
Working speed |
4-10km/h |
4-15km/h |
Tire specification |
10/80-12-6PR(left) |
11L-15-8PR(left) |
7.00-12-6PR(right) |
7.00-12-6PR(right) |
|
Matched power |
25-50HP tractor |
30-80HP tractor |
PTO speed |
540rev./min. |
540rev./min. |
Packaging dimension |
2000mmx1120mmx2194mm |
2400mmx1150mmx2580mm |
Packaging quantity |
4sets/20GP, 8sets/40GP |
6sets/40HQ |
Our Advantages:
1. Strong Technical Support:
More than 80 professional and technical personnels;
Top universities and institutes cooperator;
A subordinate to Shandong Agricultural Machinery Research Institute
2. Top Quality Assurance:
Strict control and selection of materials;
Completely self manufactured and installed;
Advanced equipments and first-class production technology;
Sound management system and solid economic strength
3. Advanced Testing Measures:
Exclusive R&D, testing center;
Capable of undertaking national research projects;
Exclusive professional platform
4. Sound after-sale system, sincere and all-aspect service
5. OEM service is acceptable, every products can be customized
