Home > Products > Front End Loader > garden/mini Tractor with front end loader, LZ354,35HP, 4WD fit with TZ03D 4in1 front end loader

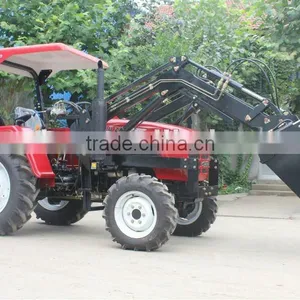

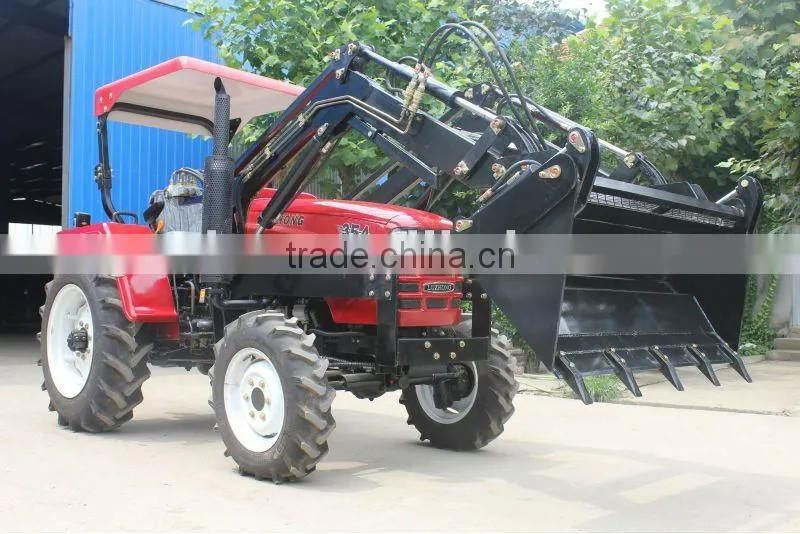

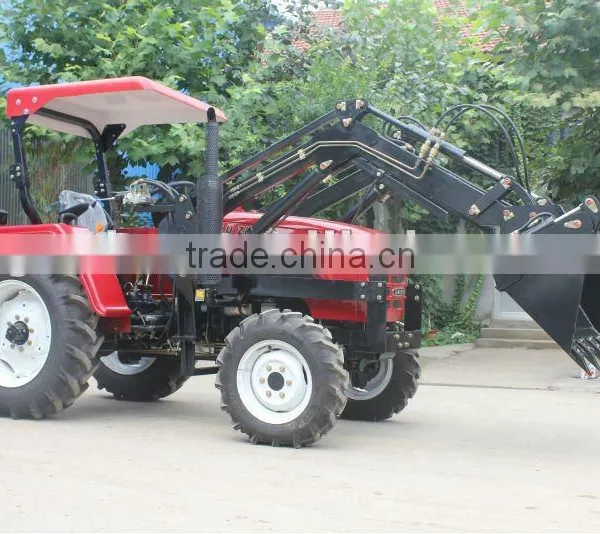

garden/mini Tractor with front end loader, LZ354,35HP, 4WD fit with TZ03D 4in1 front end loader
- 6 Unit / Units per Month
- Qingdao/Shanghai port
- T/T Credit Card PayPal
Product Details
Condition: | New | Type: | Wheel Tractor | By wheel: | 4WD |
Usage: | Farm Tractor | Certificate: | Other, ISO9001 | Brand Name: | LZ brand |
Model Number: | LZ354,TZ03D,LW-6 | Place of Origin: | Shandong, China |
Product Description
Specifications
1.Fit 25-35HP tractor2.all quick-link, flat rise and lower
3.triple link control
4.pallet fork,4in1 bucket,timber grab
Front end loader specifications fit with 25HP to 160HP tractors
-Standard level lift.
-Perfect painting and finishing in details.
-Special requests on the the size of bucket are available
-Quick release bracket and it is very easy for installation.
-Quick release attachment which can work with others Extensive implements
-4 in 1 bucket, pallet fork and wood Grapple are available on it.
-Adopt Germany technical and with CE certificate
Front end loader Main Characters Summary
-Used in Shoveling, stacking or short-distance transportation of loose material like mud, sand, stone or garbage.
-Featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It used hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation and service.
-Different work devices are optional, such as combined buckets, grating cover bucket, pallet handler, timber grab and bale fork, etc, so as to accomplish different kinds of work successfully.
Luzhong 254-304 Tractors Main Techical Specifications | ||||||
Model | LZ254 | LZ284 | LZ304 | |||
Type | 4WD Wheeled Type | |||||
(mm)Dimensions of Tractor | Length (to front ballast) | 3030 | ||||
Width | 1470 | |||||
Height (to the exhaust vent) | 1900 | |||||
Tread | Front Wheel | 1215 Fixed or 1150~1215 Adjusted | ||||
Rear Wheel | 1300 Fixed or 1300~1350 Adjusted | |||||
Axle Base | 1710 | |||||
Min.Ground Clearance | 347.5 | |||||
Structure weight (kg) | 1130 | |||||
Ballast weight | Front ballast | 56 | ||||
Rear ballast | 112 | |||||
Rated traction force (kg) | 551 | 591 | 663 | |||
EPA Engine | Model | 385 | 385 | 390/485 | ||
Type | Vertical,3-Cylinder,Water Cooled and 4-stroke | |||||
Rated Power(kw) | 18.4 | 20.6 | 22 | |||
Rated speed (r/min) | 2400 | |||||
Fuel | Diesel | |||||
Tyre | Front Wheel | 6.00-14 | ||||
Rear Wheel | 9.5-24 | |||||
Clutch | Dual-stage clutch | |||||
Steering | power steering | |||||
Transmission Type | 8+8 with shuttle gearshift | |||||
Suspension Type | 3-point links | |||||
PTO | Type and Rev | Semi-independent Type 540/1000 | ||||
Spline Size | F35 Rectangle Spline with 6 teeth | |||||
|
|
|
Tractor Front end loader Specifications
| Model | TZ02 | TZ02D | TZ03 | TZ03D | TZ04 | TZ04D |
| Tractor model | 254 | 284/304/354 | 404454/504/554 | |||
A | Height–measured at arm pivot point | 2100 | 2360 | 2400 | 2700 | 2500 | 2800 |
C | Max. dump height (mm) | 1700 | 1800 | 2000 | 2000 | 2100 | 2100 |
D | Dump distance (Max. dump height) (mm) | 500 | 600 | 700 | 800 | 800 | 900 |
E | Dump angle (°) (Max. dump height) (mm) | 42 | 45 | 42 | 45 | 42 | 45 |
F | Distance to the centre of front-wheel (mm) | 1550 | 1800 | 1800 | 1900 | 1800 | 1900 |
G | Rollback angle on ground (°) | 26 | 32 | 26 | 32 | 26 | 32 |
H | Max. digging depth (mm) | 100 | 100 | 100 | 140 | 100 | 140 |
| Bucket width (mm) | 1250 | 1250 | 1400 | 1400 | 1500 | 1500 |
| Bucket capacity (m3) | 0.18 | 0.18 | 0.21 | 0.21 | 0.23 | 0.23 |
| Rated lift capacity (Kg) | 200 | 200 | 300 | 300 | 400 | 400 |
