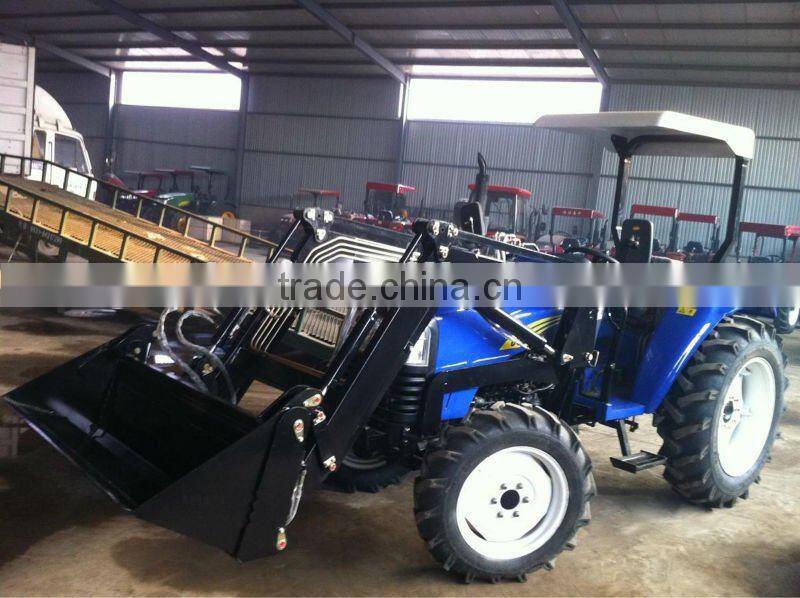

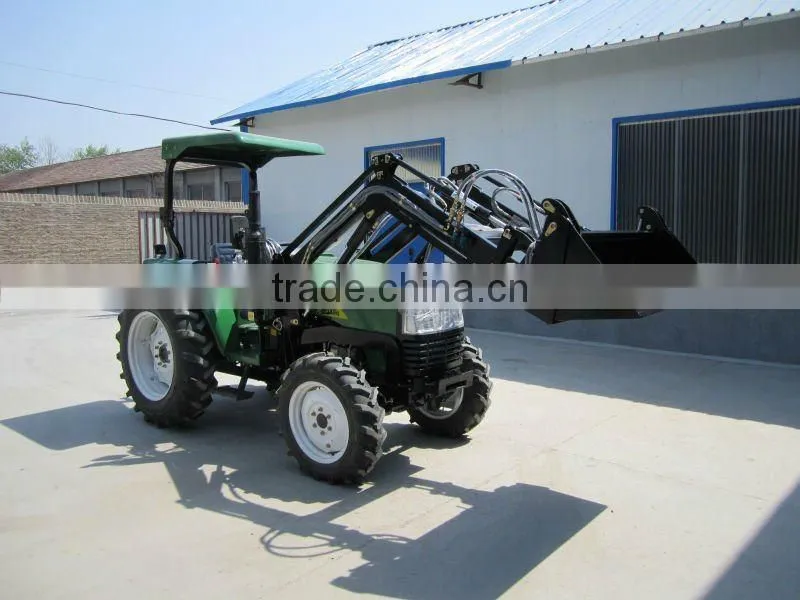

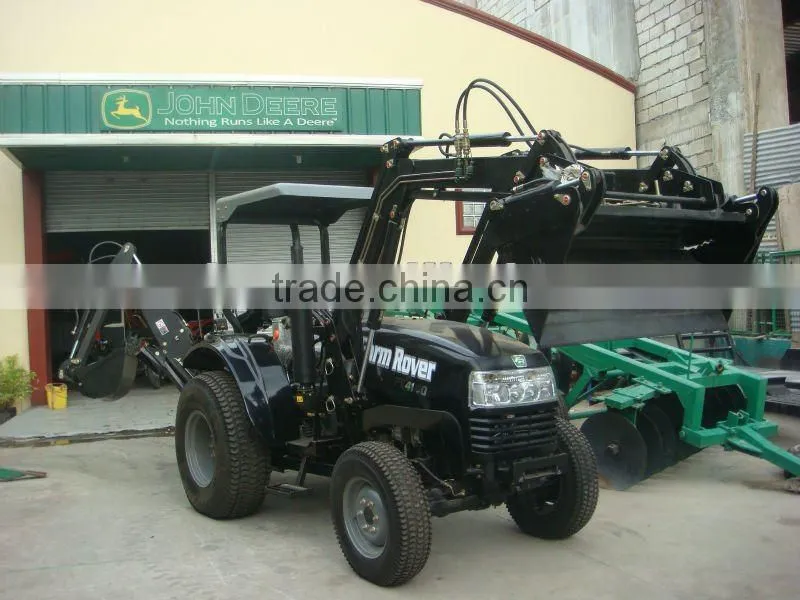

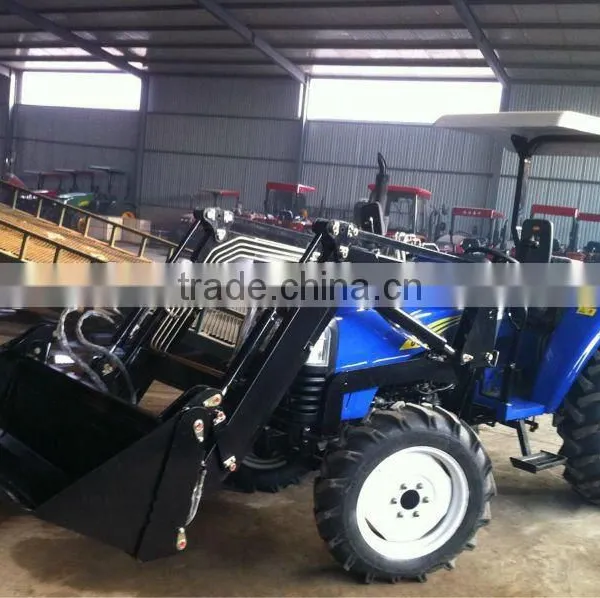

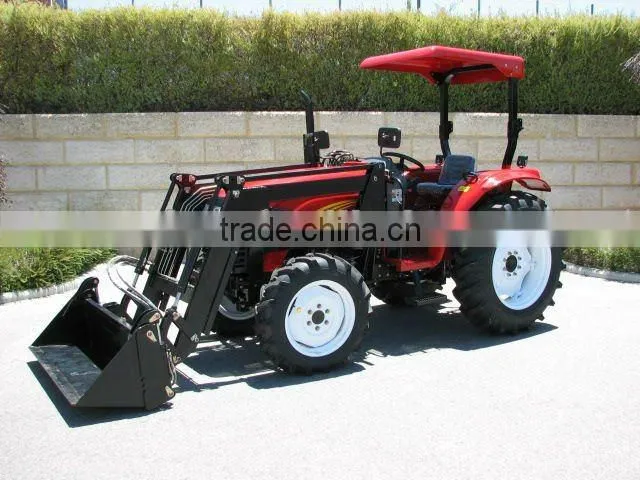

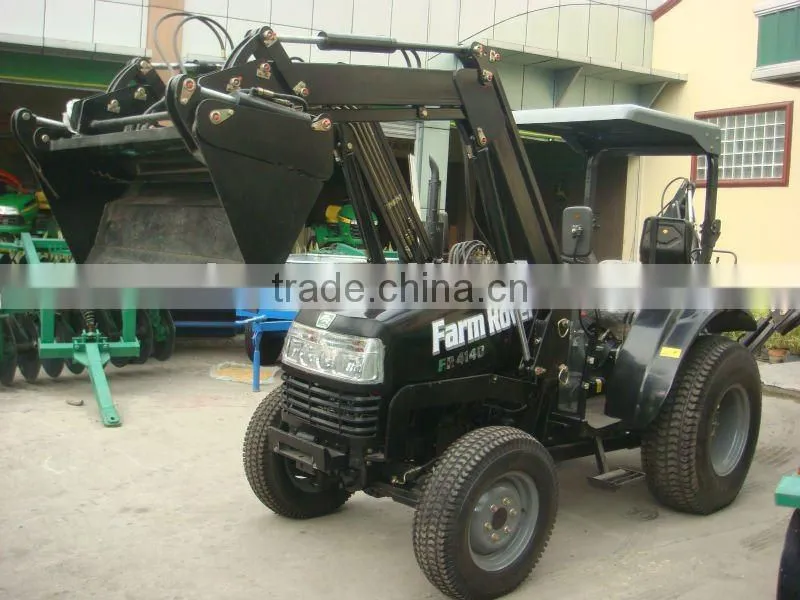

Home > Products > Front End Loader > Hot sale Front end loader for garden tractor 40-55HP, 4in1 assembled bucket, quick linkage, pallet fork, timber grapple.
Hot sale Front end loader for garden tractor 40-55HP, 4in1 assembled bucket, quick linkage, pallet fork, timber grapple.
- 8 Unit / Units per Month
- Qingdao / Shanghai port
- T/T Credit Card PayPal
Product Details
| Condition: | New | Type: | Wheel Tractor | By wheel: | 4WD |
| Usage: | Farm Tractor | Certificate: | EPA | Brand Name: | Enfly |
| Model Number: | DQ554 | Place of Origin: | Shandong, China |
Product Description
Specifications
1. 40HP-55HP, 4WD2.Dual stage cluth,Shuttle gear, luxury chair
3.TZ04D 4in1 loader, quick linkage system
4. LW-7 backhoe

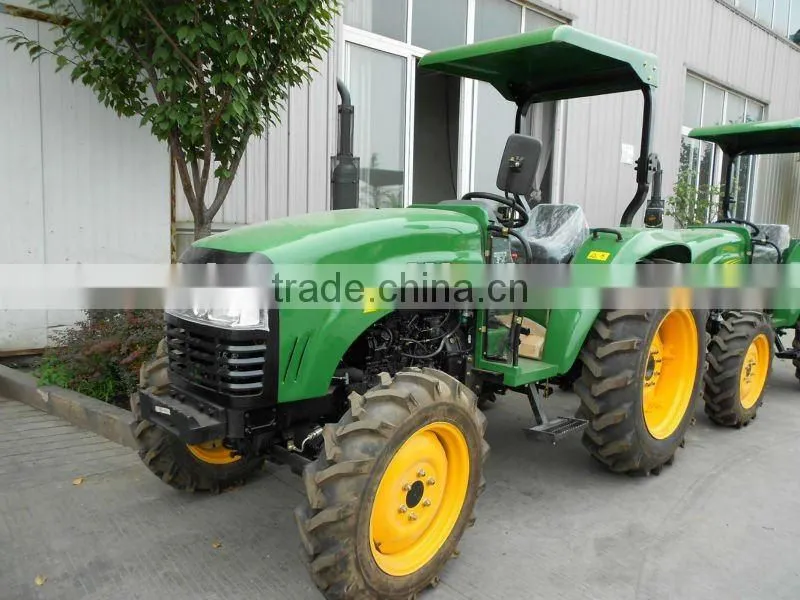

Technical of Farm Tractor DQ404 with froend end loader & backhoe
| DQ40 SERIES SPECIFICATION DQ40 | ||||
| Model | DQ400 | DQ404 | DQ550 | DQ554 |
| Drive type | 4x2 | 4x4 | 4x2 | 4x4 |
| Engine | ||||
| Type of engine | 4-Cylinder | |||
| Capacity of fuel tank(L) | 38L | |||
| Engine power at rated speed | 29.4 | 40.5 | ||
| Rated speed (r/min) | 2400 | |||
| Transmission | ||||
| Clutch | dry,dual-stage type | |||
| PTO speed | 540/760rpm | |||
| Gear shift | 8F+8R(Optional) | |||
| Hydraulic system | ||||
| Hydraulic output valve | 2-Way (optional) | |||
| Three point linkage | ||||
| Category of 3-point link | rear, category I | |||
| Lifting force(at point of 610mm)KN | 11 | 12 | ||
| Technical parameter | ||||
| Overal size(LxWxH)mm | 3513x1750x2130 | |||
| Wheel base(mm) | 1880 | 1924 | 1998 | 2040 |
| The smallest clearance(mm) | 400 | 325 | 400 | 325 |
| Front tire | 6.0-16 | 8.3-20 | 6.0-16 | 8.3-20 |
| Rear tire | 12.4-28/14.9-24(optional) | |||
Tractor Front end loader Specifications
| Model | TZ02 | TZ02D | TZ03 | TZ03D | TZ04 | TZ04D |
| Tractor model | 254 | 284/304/354 | 404/554 | |||
A | Height–measured at arm pivot point | 2100 | 2360 | 2400 | 2700 | 2500 | 2800 |
C | Max. dump height (mm) | 1700 | 1800 | 2000 | 2000 | 2100 | 2100 |
D | Dump distance (Max. dump height) (mm) | 500 | 600 | 700 | 800 | 800 | 900 |
E | Dump angle (°) (Max. dump height) (mm) | 42 | 45 | 42 | 45 | 42 | 45 |
F | Distance to the centre of front-wheel (mm) | 1550 | 1800 | 1800 | 1900 | 1800 | 1900 |
G | Rollback angle on ground (°) | 26 | 32 | 26 | 32 | 26 | 32 |
H | Max. digging depth (mm) | 100 | 100 | 100 | 140 | 100 | 140 |
| Bucket width (mm) | 1250 | 1250 | 1400 | 1400 | 1500 | 1500 |
| Bucket capacity (m3) | 0.18 | 0.18 | 0.21 | 0.21 | 0.23 | 0.23 |
| Rated lift capacity (Kg) | 200 | 200 | 300 | 300 | 400 | 400 |
