Home > Manufacturing & Processing Machinery > Agricultural Machinery > Feed Processing Machinery > 40-60HP 4x4 Tractor With 4in1 Front End Loader

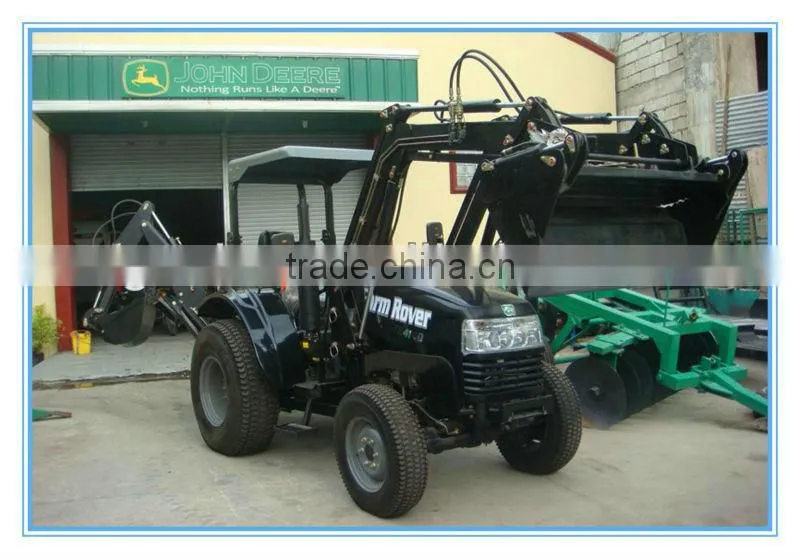

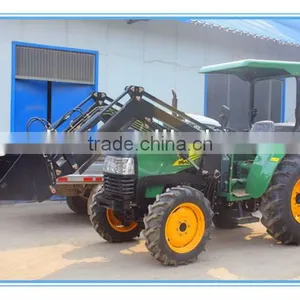

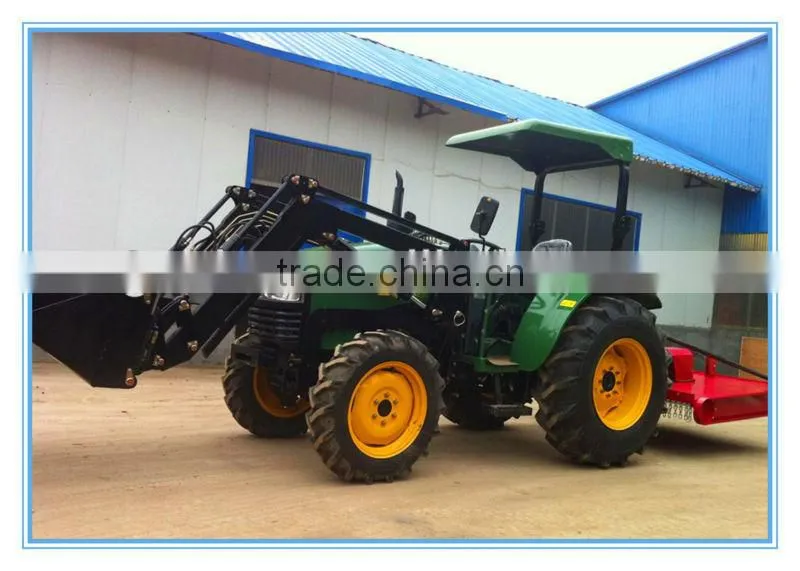

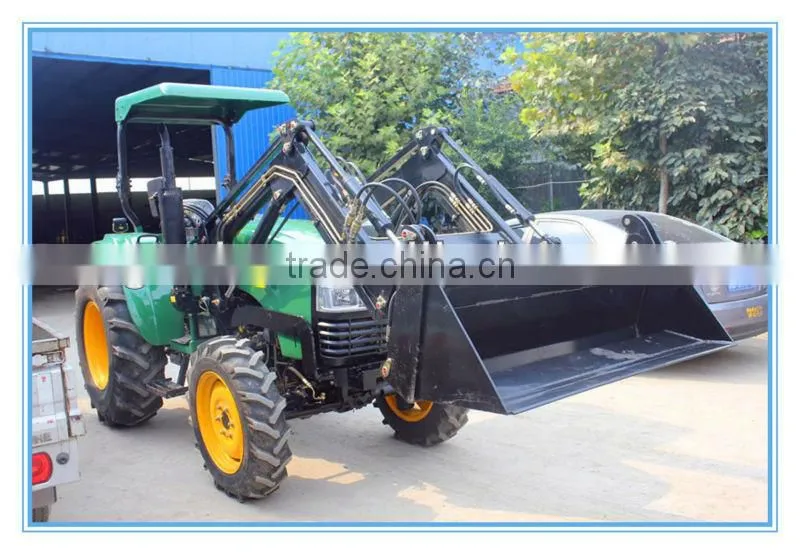

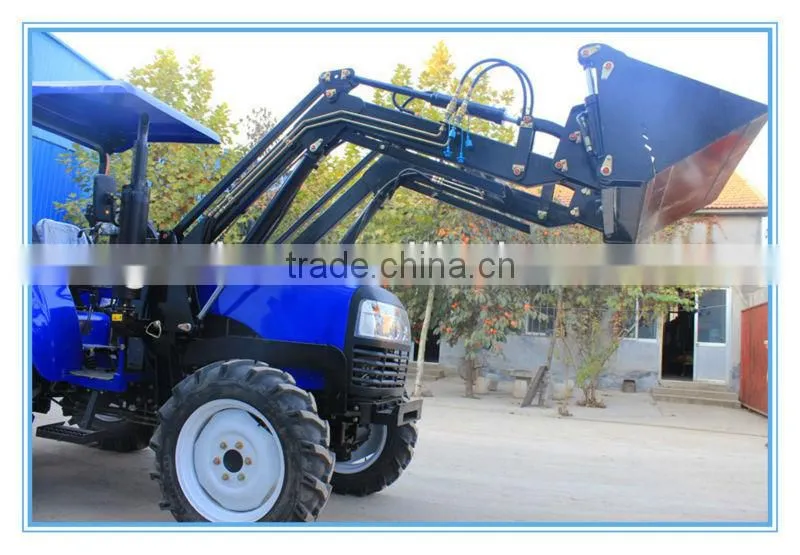

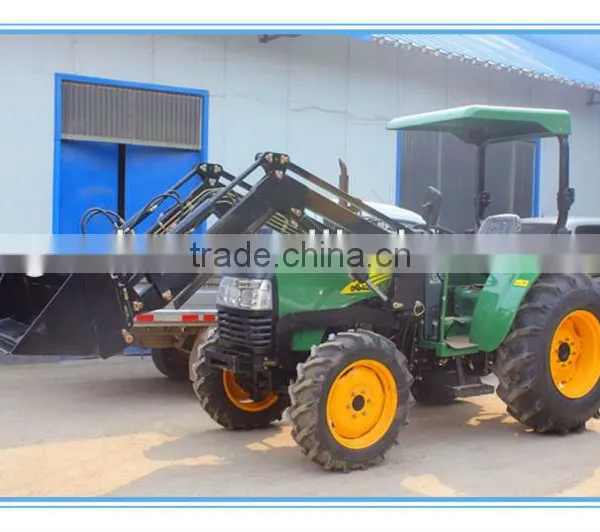

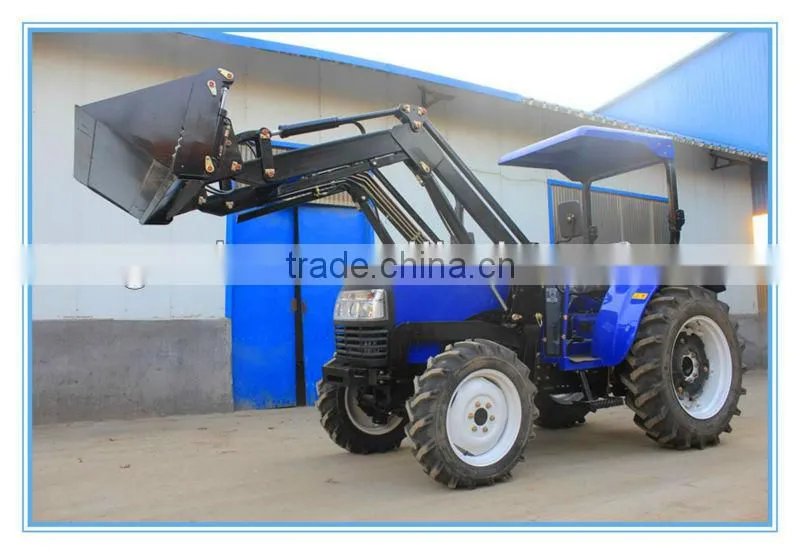

40-60HP 4x4 Tractor With 4in1 Front End Loader

US$ 1,900 - 7,500 MOQ: 1 Unit

Key Specifications

Get Latest Price

Type:

Tractor front end loader

Use:

Use in garden or construction

Certification:

Contact Supplier Request Quote Chat Now

Gooler International Group Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao / Shanghai port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Type Tractor front end loader

Use Use in garden or construction

Certification CE

Place of Origin Shandong, China

Brand Name TS

Model Number TZ04D

Condition New

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.40/50/55/60HP 4WD
2.Dual stage cluth,Shuttle gear,luxury chair
3.4in1 loader, quick linkage
4.Pallet fork, timber grapple

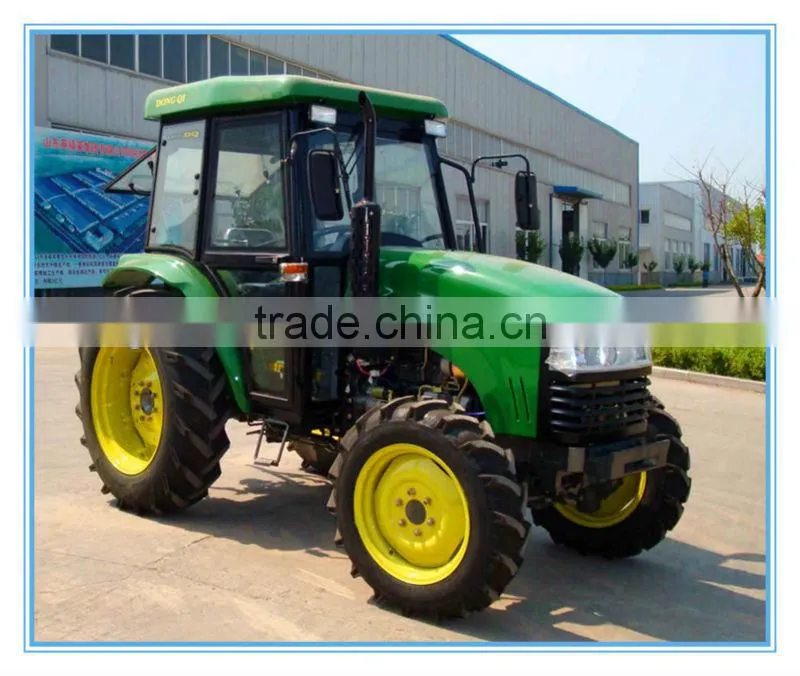

Technical of Farm Tractor DQ404/DQ554 with front end loader & backhoe

Model	DQ404	DQ554
Drive type	4x4	4x4
Engine
Type of engine	Xinchai 4-Cylinder
Capacity of fuel tank(L)	38L
Engine power at rated speed	29.4KW	40.5KW
Rated speed (r/min)	2400
Transmission
Clutch	dry,dual-stage type
PTO speed	Double PTO 540/760rpm
Gear shift	8F+4R/8F+8R(Optional)
Hydraulic system
Hydraulic output valve	2-Way (optional)
Three point linkage
Category of 3-point link	rear, category I
Lifting force(at point of 610mm)KN	11	12

Technical parameter
Overal size(LxWxH)mm	3513x1750x2130
Wheel base(mm)	1924	2040
The smallest clearance(mm)	325	325
Front tire	8.3-20	8.3-20
Rear tire	12.4-28/14.9-24(optional)

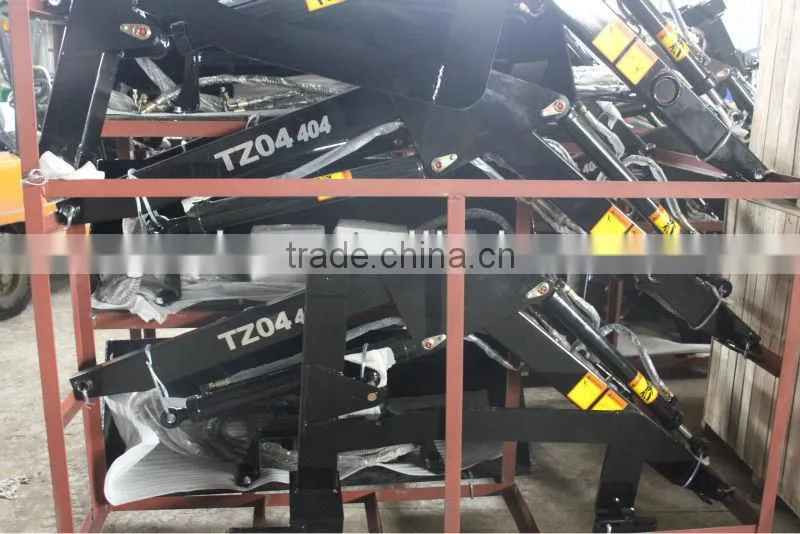

Tractor Front end loader Specifications

Model	TZ03D	TZ04D	TZ06D	TZ08D
Tractor model	254/284/304/354	404/454/504/554	604/654/704	754/804/854/904
Height-measured at arm pivot point (mm)	2700	2800	3100	3080
Max. dump height (mm)	2000	2100	2300	2350
Dump distance (Max. dump height) (mm)	800	900	1100	1100
Dump angle (°) (Max. dump height) (mm)	45	45	45	43
Distance to the centre of front-wheel (mm)	1900	1900	2300	2400
Rollback angle on ground (°)	32	32	34	34
Max. digging depth (mm)	140	140	140	180
Bucket width (mm)	1400	1500	1600	1700
Bucket capacity (m³)	0.21	0.23	0.43	0.46
Rated lift capacity (Kg)	350	600	700	1000

Front end loader specifications

-Standard level lift.

-Perfect painting and finishing in details.

-Special requests on the the size of bucket are available

-Quick release bracket and it is very easy for installation.

-Quick release attachment which can work with others Extensive implements

-4 in 1 bucket, pallet fork and wood Grapple are available on it.

-Adopt Germany technical and with CE certificate

Front end loader Main Characters Summary

-Used in Shoveling, stacking or short-distance transportation of loose material like mud, sand, stone or garbage.

-Featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It used hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation and service.

-Different work devices are optional, such as combined buckets, grating cover bucket, pallet handler, timber grab and bale fork, etc, so as to accomplish different kinds of work successfully.
