Product Details

new high pressure waterjet pump
1.the pressure from 8 MPa to 45MPa,
2.the flow from 49.8L/min to 1666L/min,
3.the

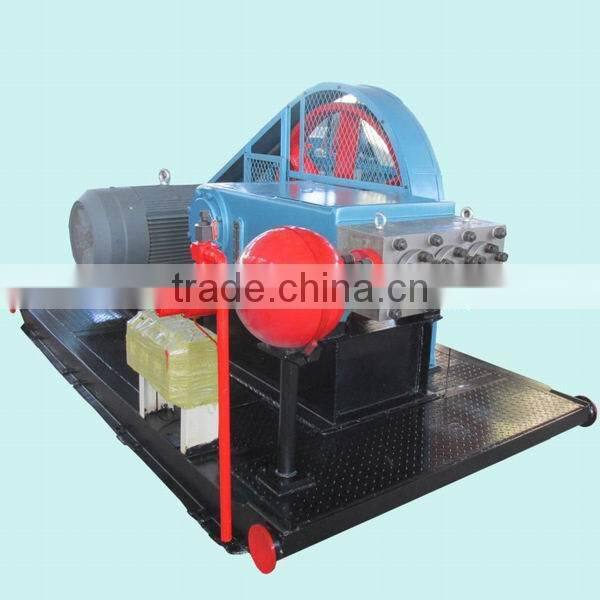

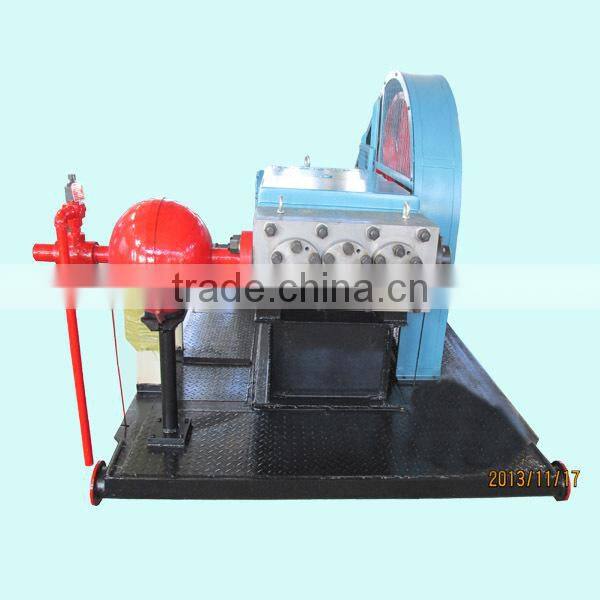

triplex plunger new high pressure waterjet pump main specifications

The pump is main made up of the Fluid end and Power end and Moter.

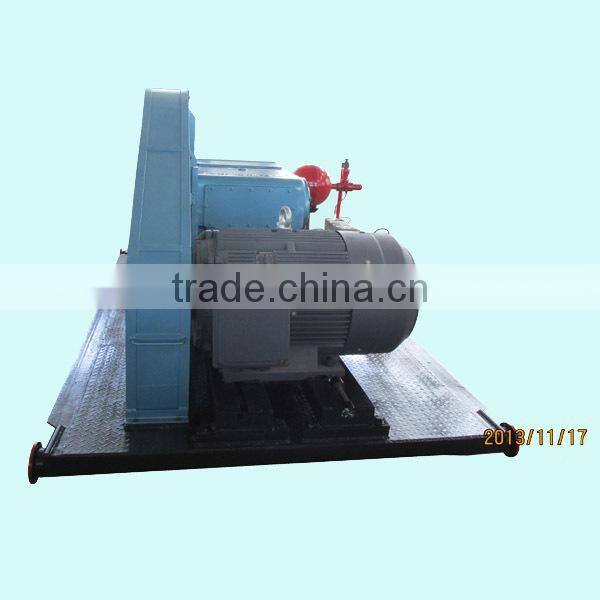

The whole pump is a skid-mounted structure it is used for easy mobile operations.

The pressure from 8MPa to 45MPa.

The flow from 51L/min to 1666L/min.

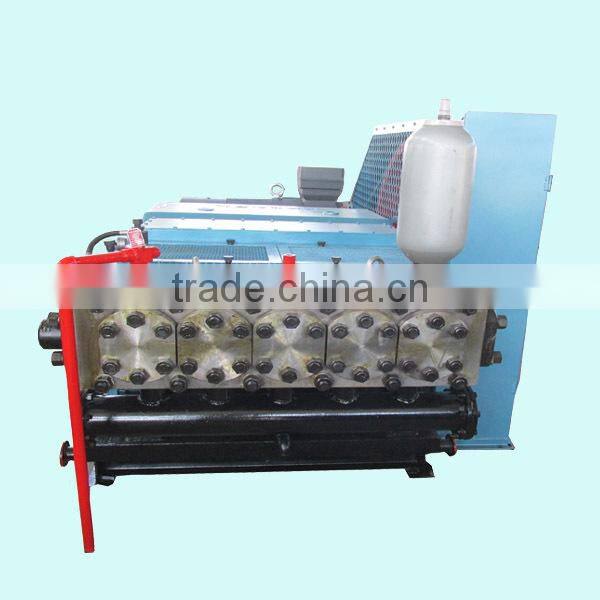

Now we produce the 3ZB44series, 3ZB75series, 3ZB127series ,5ZB127series,5ZB175series and so on.

We can be customized according to customer requirements for the high pressure pump.

Technical Parameters:

3ZB44 series high pressure plunger water injection pump main specifications



Input media		clean water,sewage
Medium temperature(°C)		<80°C
Suction pressure(Mpa)		0.3-1.0
Rated discharge pressure	Mpa	10	11	13	17	20
	Bar	100	110	130	170	200
Rated flow	m³/h	6.3	5.6	4.8	3.5	3.1
	l/min	105	93.3	80	58.3	51.6
Theoretical flow	m³/h	7.5	6.7	5.7	4.2	3.7
	l/min	125	111	95	70	61.6
Plunger diameter(mm)		40	38	35	30	28
Stroke length (mm)		44
Pump speed (r/min)		750
Pump efficiency %		>89
Moter	Type	Y2-280S-8
	Power	37kw
	Speed	750r/min
	Voltage	380v
Entrance diameter(mm)		φ48×4
Outlet diameter(mm)		φ46×8
Overall dimension(mm)		2000×600×700
Overall weight(kg)		1300

3ZB127 series high pressure plunger water injection pump main specifications



Input media		Clean water,sewage
Medium temperature(°C)		<80°C
Suction pressure(Mpa)		0.3-1.0
Rated discharge pressure	Mpa	40	34	27	22	16
	Bar	400	340	270	220	160
Rated flow	m³/h	8.2	9.6	12.1	15	19.5
	l/min	136.7	159.3	200.8	249	323.7
Theoretical flow	m³/h	9.1	10.6	13.5	16.6	21.6
	l/min	151.7	175.9	224.1	275.5	358.5
Plunger diameter(mm)		37	40	45	50	57
Stroke length (mm)		127
Pump speed (r/min)		370
Pump efficiency %		>89
Moter	Type	YF2-315S-4
	Power	110kw
	Speed	1480r/min
	Voltage	380v
Entrance diameter(mm)		φ114×4
Outlet diameter(mm)		φ61×11
Overall dimension(mm)		3460×1886×1760
Overall weight(kg)		4500

5ZB175 series high pressure plunger water injection pump main specifications



Input media		Clean water,sewage
Medium temperature(°C)		<80°C
Suction pressure(Mpa)		0.3-1.5
Rated discharge pressure	Mpa	45	36	30	23	15
Rated discharge pressure	Bar	450	360	300	230	150
Rated flow	m³/h	20.2	24.9	31.2	39.5	60.5
Rated flow	l/min	336.7	415	520	658.3	1004.3
Theoretical flow	m³/h	23.7	29.3	36.7	46.5	71.2
Theoretical flow	l/min	395	488.3	611.7	775	1182.7
Plunger diameter(mm)		45	50	56	63	78
