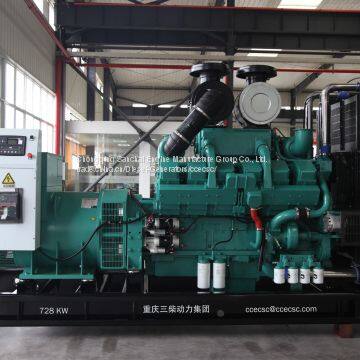

Help Center728KW Diesel Generator KTA38-G2A
Related Products
-
Hot Sale! Factory Price KTA19-M600 Marine EnginesUS$ 20000 - 200000MOQ: 1 Unit -
500hp Cummins Marine Diesel Engine KTA19-M500US$ 19700 - 64100MOQ: 1 Set
-
600hp Cummins Marine Diesel Engine KTA19-M600US$ 19700 - 64100MOQ: 1 Set
-
Diesel Generator Set Heavy Duty Diesel Generators - Reliable Industrial GeneratorsNegotiableMOQ: 1 Set
-
800Kw Diesel Generator in 60hz 110 and 220v Diesel Generator for SaleUS$ 220 - 4500MOQ: 1 Piece

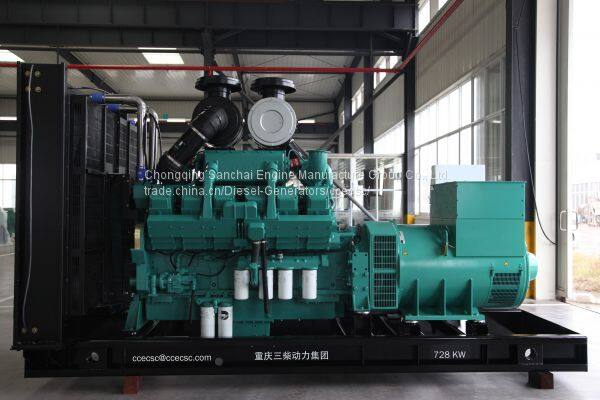

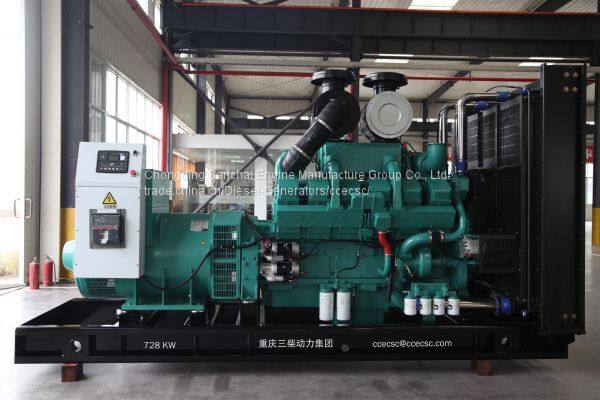

Sanchai Diesel Genset SCDG-728
Code |
SCDG-728 |
Rated Power(50HZ) |
728KW/910KVA |
Standby Power(50HZ) |
800KW/1000KVA |
Ø Standard Configuration
l Engine（SANCHAI K38-D2A-TA ）
l Radiator 400C max, fans are driven by belt, with safety guard
l 24V charge alternator
l Alternator: single bearing alternator IP23, insulation class H/H
l Absorber
l Dry type air filter, fuel filter, oil filter, coolant filter
l Main line circuit breaker
l Standard control panel
l Two12V batteries, rack and cable
l Ripple flex exhaust pipe, exhaust siphon, flange, muffler
l User manual
Ø Generator Ratings
|
Voltage |
HZ |
Phase |
P.F (COS¢) |
Standby Amps |
Standby Ratings (KW/KVA) |
Prime Ratings (KW/KVA) |
440/254 |
50 |
3 |
0.8 |
1312 |
800/1000 |
728/910 |
415/240 |
50 |
3 |
0.8 |
1391 |
800/1000 |
728/910 |
400/230 |
50 |
3 |
0.8 |
1443 |
800/1000 |
728/910 |
380/220 |
50 |
3 |
0.8 |
1519 |
800/1000 |
728/910 |
Prime Power (PRP): Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(eqvISO8528); A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload, utility parallel or negotiated outage operation capability is available at this rating.
Ø Engine Data
1. Basic parameter | |
Engine Model |
Sanchai K38-D2A-TA |
Engine Features |
V type , 12 Cylinders, Four-stroke |
Rated Power |
813KW /1500rpm |
Standby Power |
895KW /1500rpm |
|
37.8L |
Bore*Stroke |
159*159 mm |
Compression Ratio |
13.9:1 |
Mode of Speed Regulation |
Electronic |
Net Weight |
3750 KG |
Over Dimension |
1800×1450×1750 mm |
2. Exhaust Air System | |
Exhaust air capacity |
2995L/s |
Exhaust air temperature |
521 ℃ |
Max. exhaust back pressure |
10 kPa |
3. Air Intake System | |
Air Intake Type |
Turbocharged, Water-air cooling |
Max. Air Intake Pressure |
6.23 kPa |
Air Combustion Capacity |
1067L/s |
Air flow |
30425L/s |
4. Fuel System | |
Fuel Consumption |
203g/KW.h (100% loading) (189L/h) |
5. Lubrication System | |
Oil Capacity |
135 L |
Oil Consumption |
≤4g/KW.h |
Oil Pan Capacity |
121-151 L |
Rated Speed Oil Pressure |
297-483 kPa |
6. Cooling System | |
Cooling Type |
Closed Water-Cooling |
Total Cooling Liquid Capacity |
252 L |
Thermostat Working Temperature |
82-93 ℃ |
Max. Water Temperature |
104 ℃ |
Ø Alternator Data
Number of Phase |
3 |
Connecting Type |
3 Phase and 4 Wires, “Y” type connecting |
Number of Bearing |
1 |
Power Factor |
0.8 |
Protection Grade |
IP23 |
Altitude |
≤1000m |
Exciter Type |
Brushless, self-exciting |
|
Insulation Class, Temperature Rise |
H/H |
Telephone Influence Factor (TIF) |
|
THF |
|
Alternator Capacity |
940KVA |
Alternator Efficiencies |
95.0% |
Ø Generator Data
Voltage Regulation |
≥±5% |
Voltage Regulation, Stead State |
≤±1% |
Sudden Voltage Warp (100% Sudden Reduce) |
≤+25% |
Sudden Voltage Warp (Sudden Increase) |
≤-20% |
Voltage Stable Time (100% Sudden Reduce) |
≤6S |
Voltage Stable Time (Sudden Increase) |
≤6S |
Frequency Regulation, Stead State |
≤5% |
Frequency Waving |
≤0.5% |
Sudden Frequency Warp (100% Sudden Reduce) |
≤+12% |
Sudden Frequency Warp (Sudden Increase) |
≤-10% |
Frequency Recovery Time (100% Sudden Reduce) |
≤5S |
Frequency Recovery Time (Sudden Increase) |
≤5S |
Ø Standard Features
l Sanchai Standard Auto Control System
l Base Fuel Tank
l Starting batteries(Maintenance-Free &Watering-Free) with connective
l MCCB
l Oil Drain Valve
l Exhaust System( including until muffler)
l Special tool for Sanchai engine
l One set of fuel filter / oil filter /belt
l Documents
Ø Dimension &Weight
Open Type with Base Fuel Tank | |
Over Size |
4350×2060×2430(mm) |
Weight |
7150 kg |
Soundproof Type | |
Over Size |
6058×2438×2591(mm) |
Weight |
12200 kg |
