Specifications

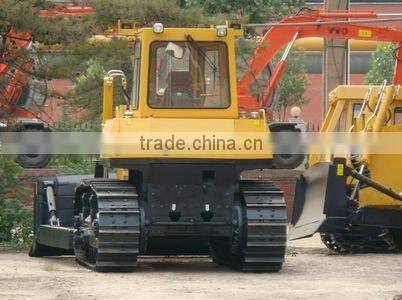

1.Crawler bulldozer T120/TS1202.engine:LR6A3Z-20
3.rated power:93kw
4.dimension:3535/4610*3135/3450*2900mm
Main features:
(1) The machine adopts the Ricardo joint venture production of diesel engines, low noise, large torque.
Main clutch: dry-type, multi-chip structure, often combined with the main clutch with big torque reserve, reliable.
(3) Transmission: gearbox 4F +2 R mechanical shift transmission, simple operation, easy maintenance, use and reliable.
(4)Steering clutch is dry, multi-piece steering clutch, hydraulic power to manipulate, easy maintenance, and manipulation of light.
(5)Transmission: two, straight teeth, big modulus gear drive, has a strong bearing capacity, high reliability
(6 )device: with straight tilting blade, sanitation shovel, angle blade and ripper of a variety of devices to choose from.
The main technical parameters
Main technical specification:
Model |
T120/TS120 |
Total weight |
13000/13500kg |
Max. towing force |
115kN |
Engine model |
LR6A3Z-20 |
Engine rated power: |
93kw |
Engine rated speed |
2000r/min |
Forward 1-5 gear |
2.4-10.6km/h |
Rear 1-4 gear |
3.8-7.0km/h |
Crawler width |
500*720mm |
Land pressure |
51/37kPa |
Overall Dimension: L X W X H |
3535/4610x3135/3450x2900 |
Bulldozer Shovel: W x H |
3135/3450x970/1060 |
Max. lifting height of bulldozer |
894mm |
Max. in-soil depth of bulldozer shovel |
4000mm |
|
Traction device /ripper (Option) |
Fixed type / three pcs |
