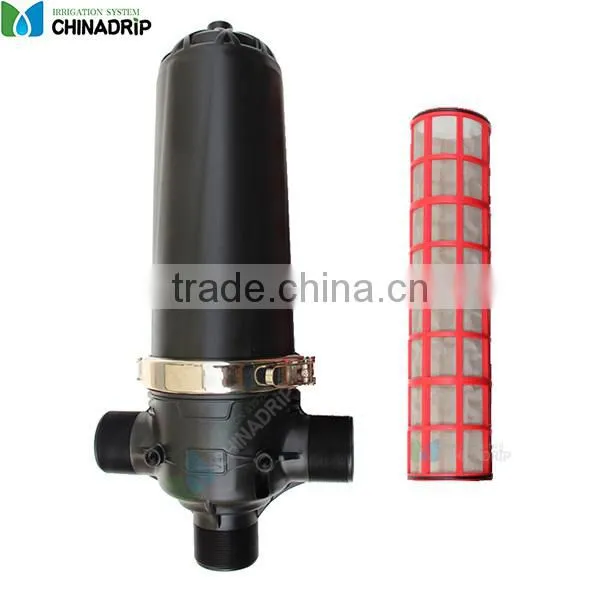

Irrigation Disposable Water Filter
US$ 1.217 - 1.217
MOQ: 1 Bag
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Fujian, China
Brand Name:
chinadrip
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Drip Irrigation 1" MNPT Plastic Disc Filter 120 Mesh Irrigation FilterUS$ 1.39 - 1.39MOQ: 12 Bags -
Automatic Self-Cleaning Plastic Filter Drip and Micro IrrigationUS$ 1.23 - 158.369MOQ: 1 Piece
-
2'' 3'' and 4''Type Large Plastic Filter Gardening Drip Irrigation Water Tank Pool Pump 120MeshUS$ 4 - 8MOQ: 10 Pieces
-
"Y" and "T" Type Medium Plastic Filter Gardening Drip Irrigation Water Tank Pool Pump 120MeshUS$ 4 - 8MOQ: 10 Pieces
-
Manual 3/4'' and 1'' Disc and Screen Filter 120 Mesh Drip Irrigation Garden IrrigationUS$ 0.7 - 2.7MOQ: 1 Piece
Condition
New
Place of Origin
Fujian, China
Brand Name
chinadrip
Model Number
1725s120mbt
Material
Other, Plastic, Plastic
Feature
Water-saving, Easily Install
Diameter
0.75 cm
After-sales Service Provided
Engineers available to service machinery overseas
Product Description
SPECIFICATION

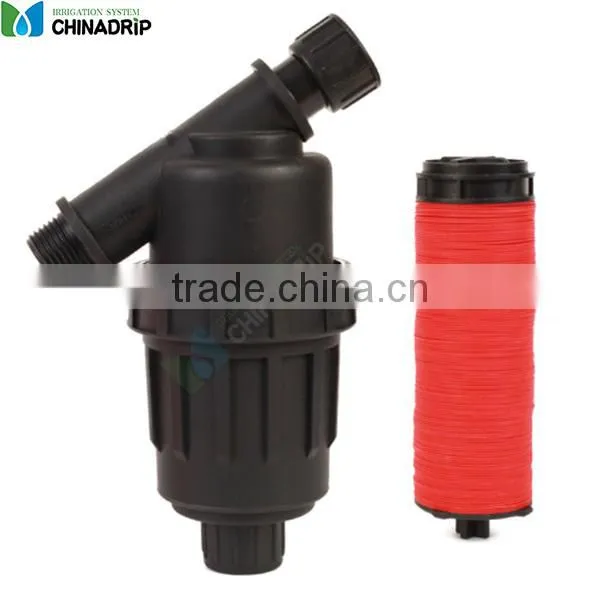

- Filter disc elements: 120 mesh (color red)

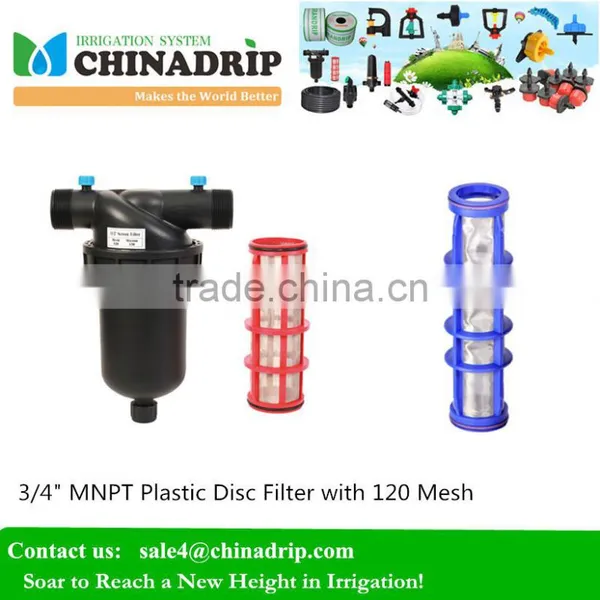

- Filter configuration: 3/4" NPT male inlet and outlet
- Filter cylinder length: 5"
- Filter dimensions: 3/4" 4.7/8" H x 7" W
- Filter surface area: 28 square inches
- Maximum flow rate: 3/4": 18 GPM
- Maximum working temperature: 130 degree F
- Operating pressure: up to 120 PSI
- Size:3/4"
- Materials
- Disc Cylinder Assembly: PBT
- Disc: Polypropylene
- Filter housing: Polypropylene
- Grooved Discs: Polypropylene
- O-ring: EPDM
FEATURES
- Color-coded disc replacements and screens are interchangeable and easy to identify
- Disc element provides in-depth filtration due to the discs’ outer surface area and the depth of the disc element for retaining organic matters
- Disc elements have excellent resistance to most common chemicals
- Easy maintenance: the disc element assembly can be extracted from the filter for easy cleaning
- Large filtration area allows longer intervals between flushing
- Low friction loss
- Non corrosive materials
- Sediments accumulate on the outer face of the stacked disc, allowing clean water to flow through the staked discs out of the filter
APPLICATIONS
- All irrigation systems require proper maintenance, and drip irrigation systems are no exception. The major cause of most drip irrigation system failures is clogging of drip emitters and micro sprinklers, therefore, a disc or screen filter installed before the pressure regulator is the most important component in the micro irrigation system. The pipe thread plastic disc filters are simple to install and are an economical method to protect a drip irrigation system by preventing such clogging. Periodically the discs need to be cleaned by opening the filter cover, removing the disc elements, and rinsing the disc under water.
INSTALLATION VIDEO
INSTRUCTION

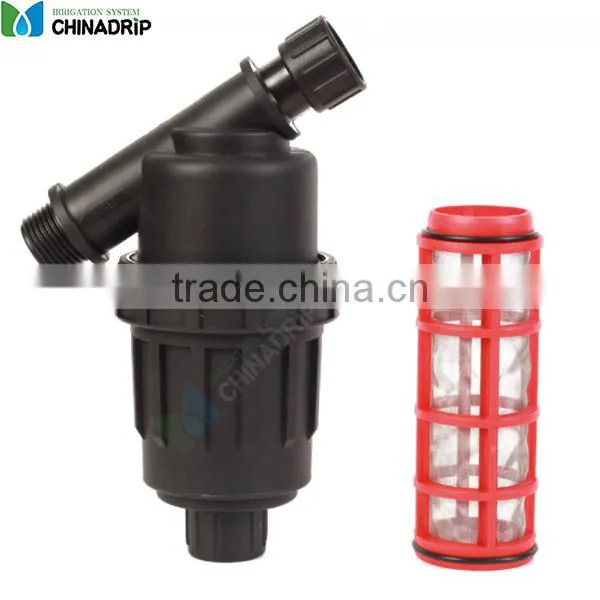

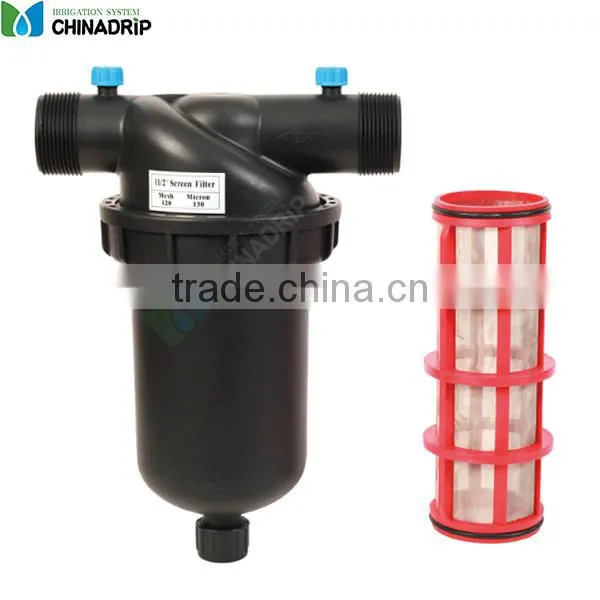

How to Install Screen and Disk Filters:
1.) Since the filter is a part of the head unit of your drip irrigation system, it is to be installed after the backflow preventer and before the pressure regulator.
2.) Firmly screw the filter into place. There is no need for additional tools or glue.
3.) Make sure the filter is easily accessible for routine cleaning.
Note: When using pipe threading, be sure to use a layer of teflon tape on the threaded ends of the filter housing.
Note: Be sure to install the filter in regards to the flow directional arrow on the side of the filter housing.
