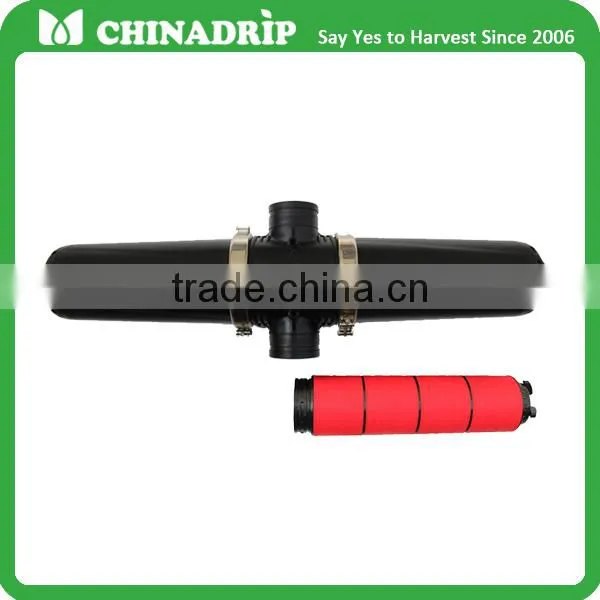

Automatic Self-Cleaning Plastic Filter Drip and Micro Irrigation

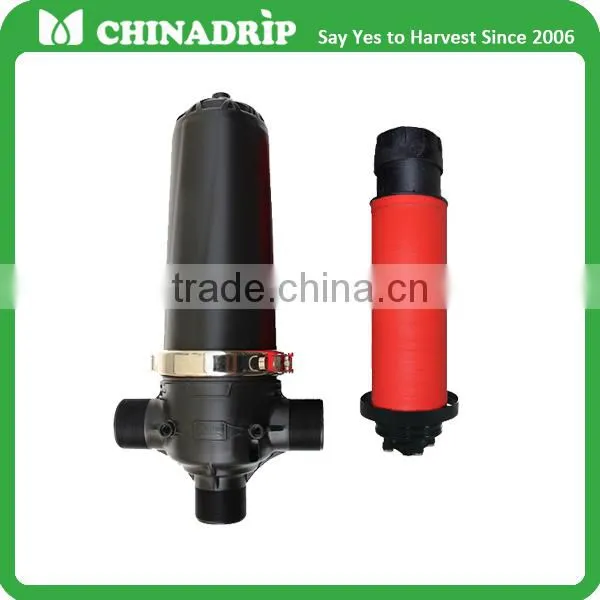

 Disc Filter:

How to work?

A. As the name implies, the filter consists of a stack of discs.  These discs are like hollow poker

   chips with serrations that cause the discs to interlock when the discs are stacked.

B. Water enters the filter chamber on the outside of the discs.  The water then flows through the

    disc pack between the interlocked serrations of the discs.  After flowing through the serrations

    the water then flows through the hollow center of the discs and out to the field.

 Application:

All irrigation systems require proper maintenance, and drip irrigation systems are no exception.

The major cause of most drip irrigation system failures is clogging of drip emitters and micro

sprinklers, therefore, a disc or screen filter installed before the pressure regulator is the most

important component in the micro irrigation system. The pipe thread plastic disc filters are simple

to install and are an economical method to protect a drip irrigation system by preventing such

clogging. Periodically the discs need to be cleaned by opening the filter cover, removing the disc

elements, and rinsing the disc under water.

Advantage:

1. Automatic Self-cleaning Filter with maximum reliability and efficiency in filteration.
2. Water and energy saving. Minimum backflushing pressure for maximum efficiency and using

3. minimum water maintaining an efficient cleaning action.
4. The helical action optimizes the filtration performance and reduces backwash frequency and

    maintenance.
5. Specially designed and high quality materials used in manufacturing guarantees an extended

    life with high resistante.
6. Compact assembled systems for easy transportation and installation.
7. Compatible with several control units,achieving and operation easy.

Automatic Self-cleaning Filter

Porfessional irrigtion solution provider

Survery------Designing irrigation system-----Implement-----After-sale service.

Customized Service

With our own mould workshop, customzied service is avaiable.

OEM Service

We can offer OEM service according to customers' Logo, package, etc.

Free Samples

Customers just need to afford the shipping freight to get free samples

Online Service

24 hours online service available.

Easy Payments

T/T, L/C, Western Union, Paypal, etc. acceptable.

One Stop Shopping

Full range of irrigation system goods are available.

Chinadrip Irrigation Equipment (Xiamen) Co.,Ltd., is one of the leading professional

irrigation system manufacturer and servicer in China.

With rich experience in both manufacturer and quanlity control, we supply wide range of

irrigation products to over 50 countries worldwide.

Our Products Line

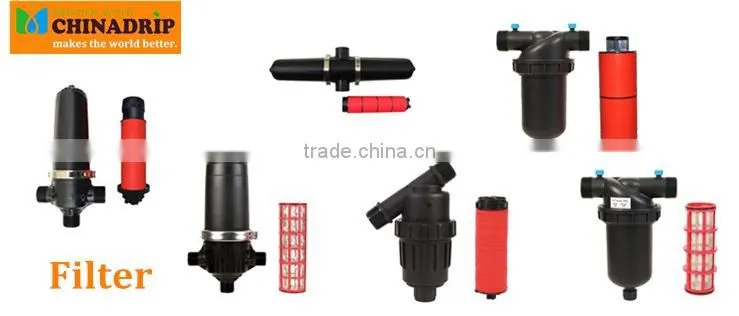

Our products include micro-sprinkler system,drip irrigation system,filter system,fertilizer

system,garden watering kit, tubing and their fittings ect which are all manufactured by the

advanced technology and good quanlity materials,widely apply in agricultural irrigation ,

landscape,famliy garden, greenhouse and sport course and so on.

Our Experienced Team

Chinadrip has been training a team of professional staffs in design,technology, sales,

customer services and quality control in the past 8 years. We are a group with strong

integration who work toward the same goal: To provide our customer with the best

services by not only the strong technilogy support but also intergrity and friendship.

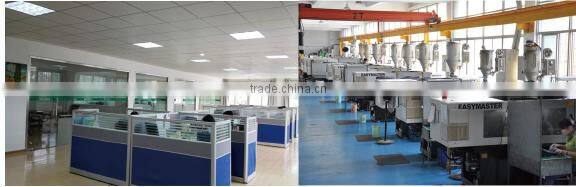

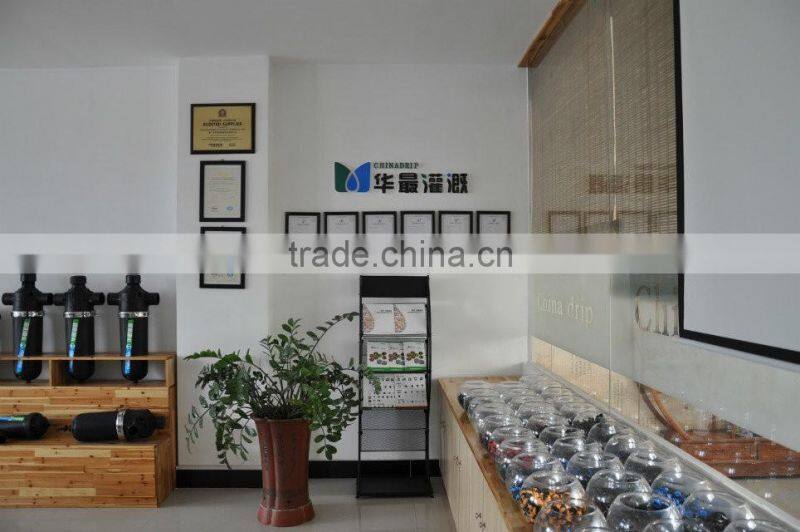

Company                                                      Showroom

Office                                                                  Factory

Any doubts or needs feel free to contact me.I am Janice Zhang from Chinadrip Irrigation

Equipment Co.,Ltd.
