Brief Introduction:
With the heop of low pressure pipe,this drip tape is used for localized irrigatio on the root part
of crops through the dripper on the hollow billet,Our product adoptds double bule strips desigh
so as to keep the drippers on its very center,so the water will drip on the root segment of the
crops precisely.Moreover,our product has a wide application span.According to different
climates and environmental types,it can be produced in various types.Por example,the type
speciallly designed for tropics features excellent resistance against aging and ultraviolet
radiation.Yet the type for frigid regionsis good at resisting freeze so that it can extend the
service life dffectively and save the using cost.

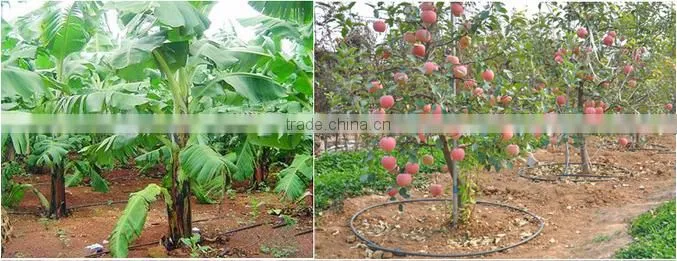

Furthermore,our driptape is suitable for irrigation on various plants,such as corns,beet,grape
strawberry,sugarcane, hot pepper,tomato and potato,etc.With different thickness,the product
is packed in roll in varied length.Yet the outer package size is the same and it is designed
according to the size of container so as to save spact and transporting cost.
Advantage:
1. With superior CV and excellent uniformity.
2. With new type of labyrinth passages, excellent clogging resistance.
3. Excellent pressure-reducing, longer for laying length.
4. Made by high quality material and advanced technology, better for anti-corrosion and
anti-ageing.
5. Extruded with Emitter inside, light weight and packed by roll, good for transportation.
Aplication:
Our chinadrip drip tape sometimes is used in the most of crops,including vegetable,field
crops,vineyars,fruit,nut and other tree crops.
Specification:
Maximun Length of Run:
Flow Variaton: 5% 7.5% 10%
Dn16/20 CM Spacing(2-3L/H): 47-32CM 58-39CM 64-43CM
Dn16/30CM Spacing(2-3L/H): 72-51CM 81-59CM 87-64CM
Dn16/40CM Spacing(2-3L/H: 102-89CM 113-102CM 119-109CM

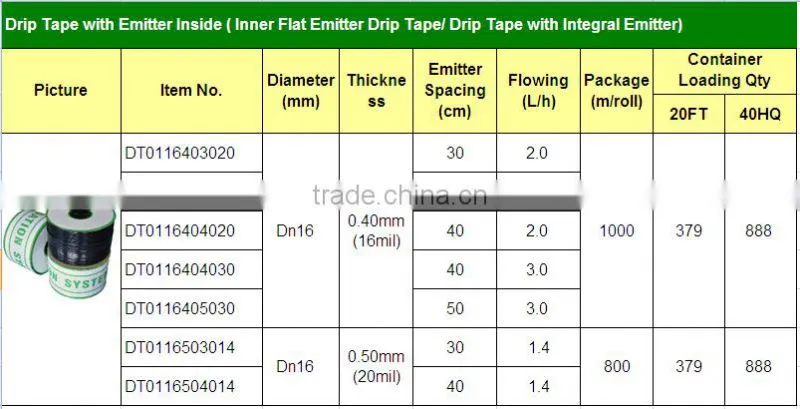

Technical Date:
Thickness Flow Rate ID OD MaxPressure Filter chose
0.25CM 2-3L/H 15.9MM 16.4MM 1.3BAR 120Mesh
Note:1. 0.8-1.0bar,Recommend working pressure:0.8-1.0bar.
2. All the holes of Emitters upward.
3. Lay in line and levelly.
4. Avoid to damage by insect and mouse.
5. 120mesh Filtration is necessary
6. When drip irrigation under the while film, must avoid to damage surface of
tape by sun light through water drop which is like a magnifying glass.
Dripper Flow Rate Data Pressure(M)VS Flow Rate(L/H):
