Drip Irrigation:
Drip irrigation system delivers water to the crop using a network of mainlines, sub-mains and
lines with emission points spaced along their lengths. Each dripper/emitter, orifice supplies
a measured, precisely controlled uniform application of water, nutrients, and other required
growth substances directly into the root zone of the plant.
Water and nutrients enter the soil from the emitters, moving into the root zone of the plants
through the combined forces of gravity and capillary. In this way, the plant’s withdrawal of
moisture and nutrients are replenished almost immediately, ensuring that the plant never
suffers from water stress, thus enhancing quality, its ability to achieveoptimum growth and
high yield.
Drip Tape Brief Introduction:

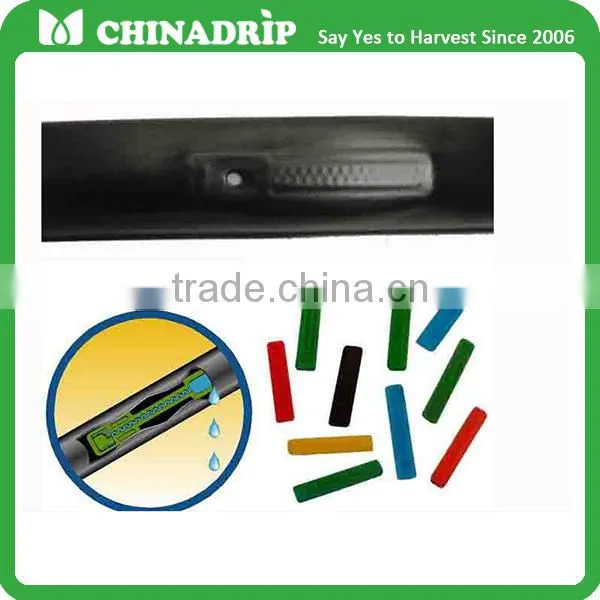

1. An extruded lightweight intergral driptape that incroprates state of the art injection
molded turbulent flow emitters inside the tubing.
2. The emitter is engineered to resist plugging with large flow path size having the largest
corss setion in the industry worldwide.
3. High tensile strength resins and unique one-piece manufacturing methods achieved
without the risk of bursting the tuble.
4. The tubing lays flat on the reel for ease of shipping and installation,becoming round under
field water pressure.Both the tubing and the drippers are manufactured from the finest quality
resins using high-tech equipment to from a product which emits water uniformly from each
emitter,year after year.
5. Our Driptape is reeled with fully automatic state of the art equipment to ensure consistent
wrapping and ease of automated field installation.
6. Our products versatility fulfills the needs of most crop applications including vegetable,field
crops, vineyars,fruit,nut and other tree crops.
Advantage:
1. With superior CV and excellent uniformity.
2. With new type of labyrinth passages, excellent clogging resistance.
3. Excellent pressure-reducing, longer for laying length.
4. Made by high quality material and advanced technology, better for anti-corrosion and
anti-ageing.
5. Extruded with Emitter inside, light weight and packed by roll, good for transportation.
Specification:
Maximun Length of Run:
Flow Variaton: 5% 7.5% 10%
Dn16/20 CM Spacing(2-3L/H): 47-32CM 58-39CM 64-43CM
Dn16/30CM Spacing(2-3L/H): 72-51CM 81-59CM 87-64CM
Dn16/40CM Spacing(2-3L/H: 102-89CM 113-102CM 119-109CM
Technical Date:

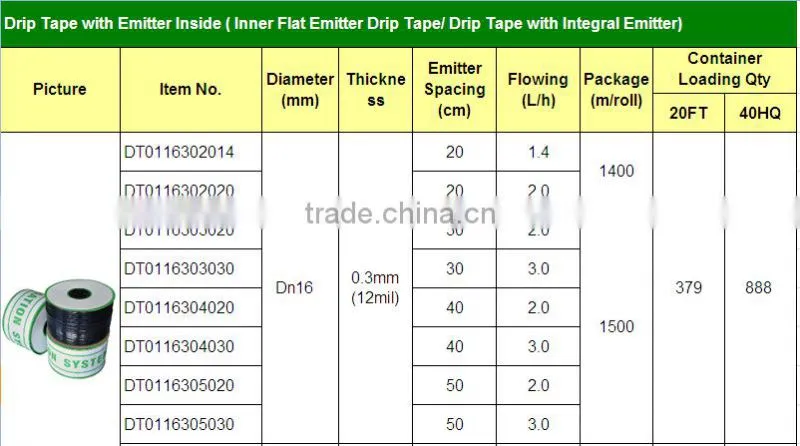

Thickness Flow Rate ID OD MaxPressure Filter chose
0.25CM 2-3L/H 15.9MM 16.4MM 1.3BAR 120Mesh
Remark: ID=Inside Diameter OD=Outside Diameter
Note:1. 0.8-1.0bar,Recommend working pressure:0.8-1.0bar.
2. All the holes of Emitters upward.
3. Lay in line and levelly.
4. Avoid to damage by insect and mouse.
5. 120mesh Filtration is necessary
6. When drip irrigation under the while film, must avoid to damage surface of
tape by sun light through water drop which is like a magnifying glass.

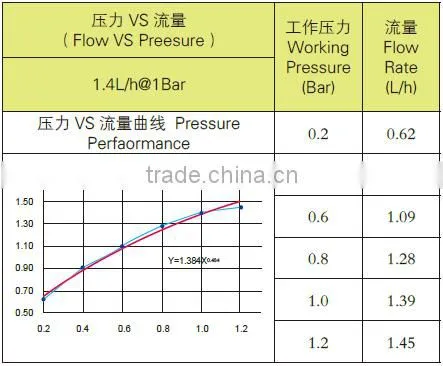

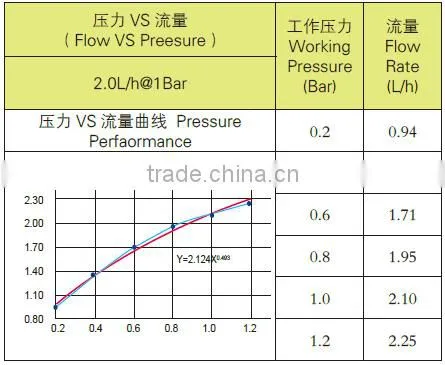

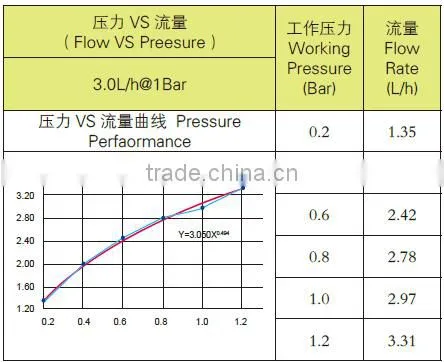

Dripper Flow Rate Data Pressure(M)VS Flow Rate(L/H):
