Flat and Emitter Drip Tape Irrigation With Thickness 0.25MM

 Brief Introduction:

1. An extruded lightweight intergral driptape that incroprates state of the art injection

molded turbulent flow emitters inside the tubing.

2. The emitter is engineered to resist plugging with large flow path size having the largest

corss setion in the industry worldwide.
3. High tensile strength resins and unique one-piece manufacturing methods achieved

without the risk of bursting the tuble.
4. The tubing lays flat on the reel for ease of shipping and installation,becoming round under

field water pressure.Both the tubing and the drippers are manufactured from the finest quality

resins using high-tech equipment to from a product which emits water uniformly from each

emitter,year after year.

5. Our Driptape is reeled with fully automatic state of the art equipment to ensure consistent

wrapping and ease of automated field installation.

6. Our products versatility fulfills the needs of most crop applications including vegetable,field

crops, vineyars,fruit,nut and other tree crops.

Advantage:

1. With superior CV and excellent uniformity.
2. With new type of labyrinth passages, excellent clogging resistance.
3. Excellent pressure-reducing, longer for laying length.
4. Made by high quality material and advanced technology, better for anti-corrosion and

    anti-ageing.
5. Extruded with Emitter inside, light weight and packed by roll, good for transportation.

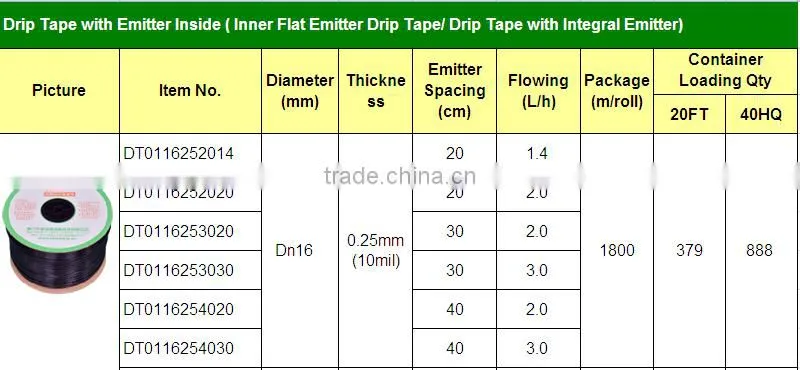

Specification:

Maximun Length of Run:

Flow Variaton:                                             5%                       7.5%                             10%

Dn16/20 CM Spacing(2-3L/H):                 47-32CM              58-39CM                      64-43CM

Dn16/30CM  Spacing(2-3L/H):                 72-51CM              81-59CM                      87-64CM

Dn16/40CM Spacing(2-3L/H:                   102-89CM            113-102CM                 119-109CM

Technical Date:

Thickness      Flow Rate       ID              OD           MaxPressure       Filter chose

0.25CM         2-3L/H        15.9MM      16.4MM           1.3BAR              120Mesh

Note:1. 0.8-1.0bar,Recommend working pressure:0.8-1.0bar.
         2. All the holes of Emitters upward.
         3. Lay in line and levelly.
         4. Avoid to damage by insect and mouse.
         5. 120mesh Filtration is necessary
         6. When drip irrigation under the while film, must avoid to damage surface of
          tape by sun light through water drop which is like a magnifying glass.

Dripper Flow Rate Data Pressure(M)VS Flow Rate(L/H):
