Help CenterHousehold 2.2kwfactory Direct Supply Cotton Straw Hammer Mill Directly Supplied by Chengda Factory
Related Products
-
Household 4kw Durable Sugarcane Hammer Mill Directly Supplied by Chengda FactoryUS$ 360 - 1,100MOQ: 1 Set -
Household 2.2kw Durable High Quality Alfalfa Wheat Straw Hammer Mill Directly Supplied by Chengda FactoryUS$ 360 - 1,100MOQ: 1 Set
-
Household 2.2kw Small Durable High Quality Pine Wood Hammer Mill Grass Hay CrusherUS$ 360 - 1,100MOQ: 1 Set
-
Chengda Factory Direct Supply 22kw 800-1100kg/h Poultry Feed Hammer MillUS$ 2,000 - 7,500MOQ: 1 Set
-
CF420A Factory Supply 55HP Diesel Engine Tree Branch Crusher Peanut Shell Hammer MillUS$ 500 - 5,000MOQ: 1 Set
Specifications
Low Break DownCE certification
factor direct supply
Household Hammer Mill CF158B introduction
The hammer mill is fixed with an engine with a power of RP-driven all kinds of different power. Its working principle is: after the raw materials were put into crushing chamber, the high-speed operated hammer sheets will impact the raw materials over and over again, then the raw materials will be crushed into pre-set size step-by-step. The sieve have the following size: 1.5mm, 2mm, 4mm and 6mm. Then the crushed materials will leak out from the sieve. The draught fan will convey the leaked materials into separator centrifuge, finally, the powder will be discharged down below, and the air will be discharged upper.

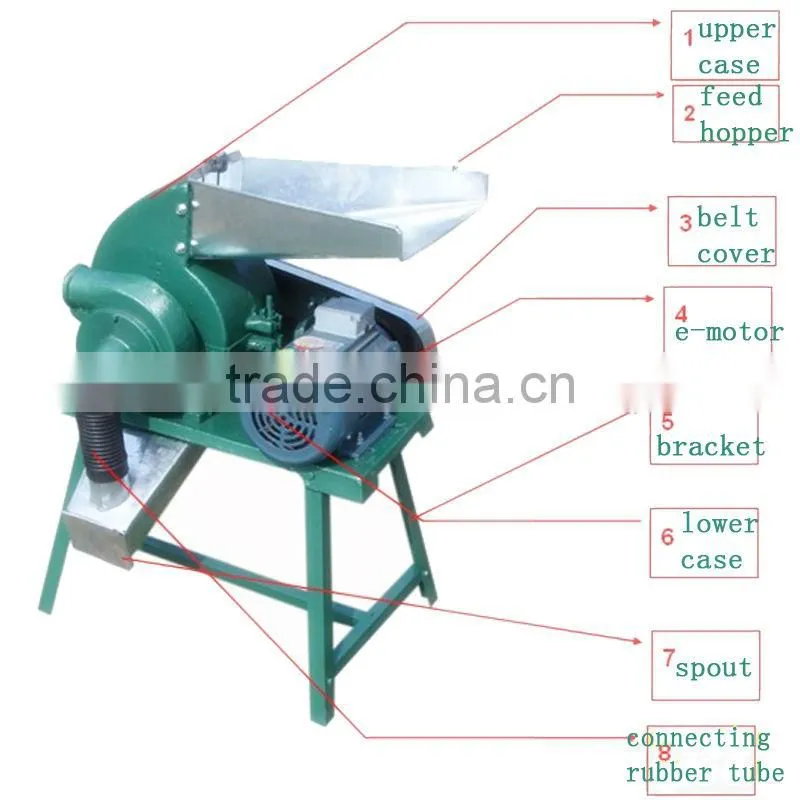

Knowing your machine
| Model No. | Power Electric Engine 50HZ | Wood output(kg/h) | N/G weight(kg) | Sieve screen size | Sieve screen specification | Packing Size(cm) |
| CF158 | 1 phase 2.2kw | 60-120 | 75/95 | 360*160mm | 1.5-10mm | 48*58*63 |
| CF158 | 3 phase 2.2kw | 60-120 | 75/95 | 360*160mm | 1.5-10mm | 48*58*63 |
| CF198 | 3 phase 4kw | 200-300 | 120/140 | 510*200mm | 2-10mm | 90*58*102 |

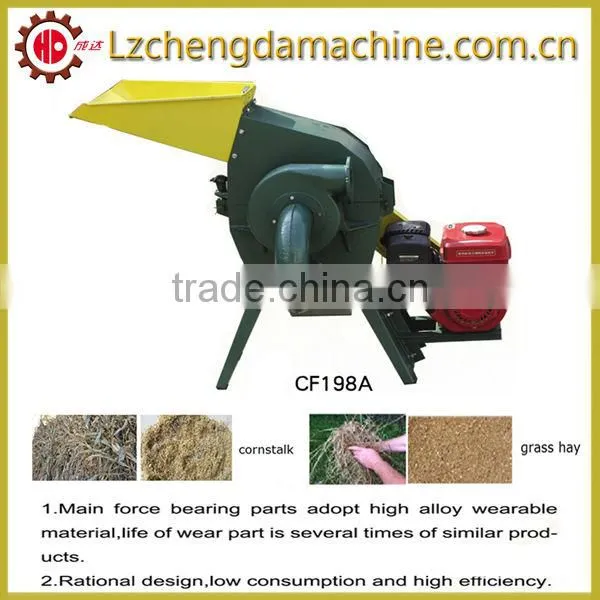

| CF198 | 7.5HP gasoline engine | 200-300 | 120/140 | 510*200mm | 2-10mm | 96*62*105 |
| CF420B | 3 phase 7.5kw | 200-400 | 260/320 | 680*280mm | 1.8-10mm | 112*82*107 |
| CF420C | 3 phase 11kw | 200-500 | 320/360 | 680*280mm | 2-10mm | 112*82*107 |
| CF420A | 15HP Diesel engine | 300-500 | 330/360 | 680*280mm | 1.8-10mm | 147*73*109 |
| CF420A | 22HP Diesel engine | 300-500 | 350/390 | 680*280mm | 1.8-10mm | 147*74*111 |

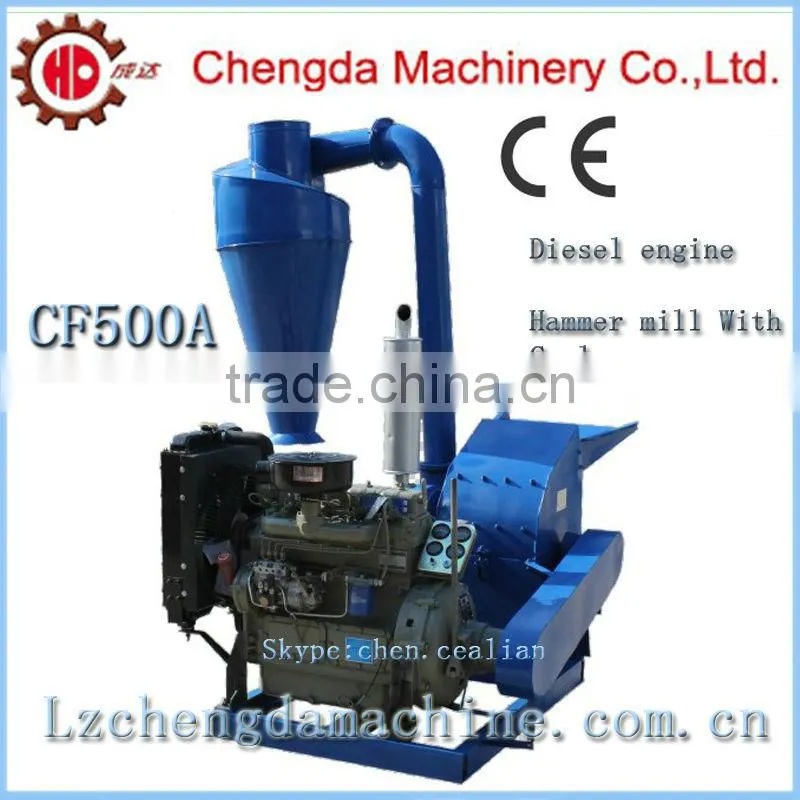

| CF500A | 55HP Diesel engine | 800-1100 | 800/840 | 820*390mm | 2-10mm | 150*142*123 |

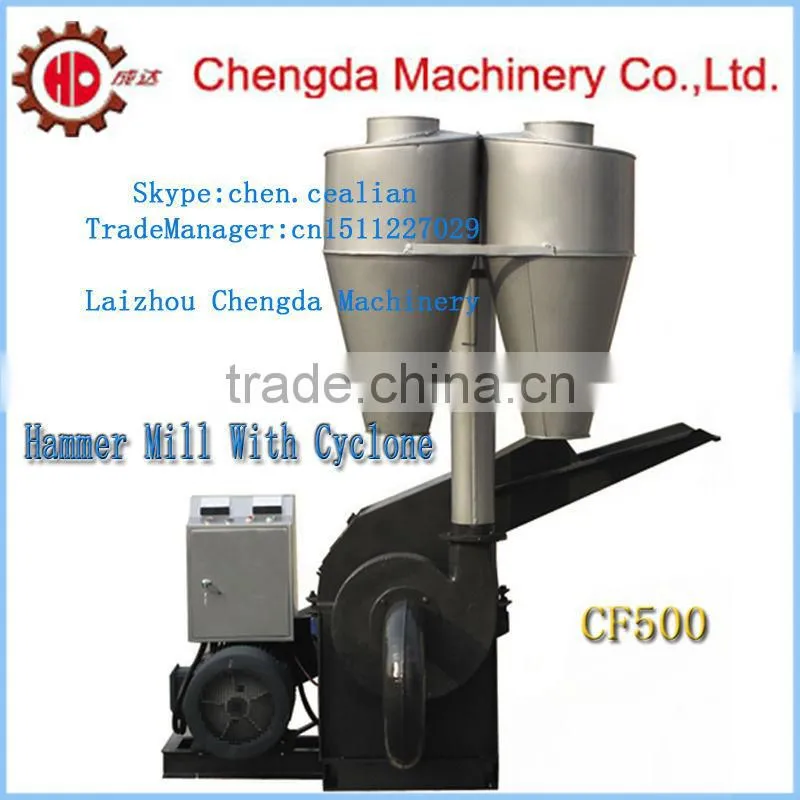

| CF500B | 3 phase 22kw | 800-1100 | 600/630 | 820*390mm | 2-10mm | 124*97*106 |
Specification
1. This smallest wood hammer mill is most suitable for home use with small capacity and tiny dimension.
2.Equipped with hammers, this wood hammer mill is more suitable to crush soft agricultural crops such as wheat stalks, alfalfa, corn straws, switchgrass, peanut soybean shell and bamboo.
3. A cyclone can be equipped to collect finished wood particles to prevent dust leakage.
4. This wood hammer mill can be used in home-made wood pellet production which can be used as animal bedding, heat fuel and fodder.
CF series hammer mill
Ready to exported
Choose a reliable wood hammer mill manufacturer.
Machines look all same outside. So the quality will be more or less similar. Please change your views right now. Wood hammer mill from small workshop must be much more cheap compared with these mills from larger factories, however, the texture of metal will be a tremendous difference. In general, stainless steel 4Cr13 means the carbon content is 0.4% and chrome content is 13%. The higher the carbon content and lower chrome content, the easier the metal to be oxidized.

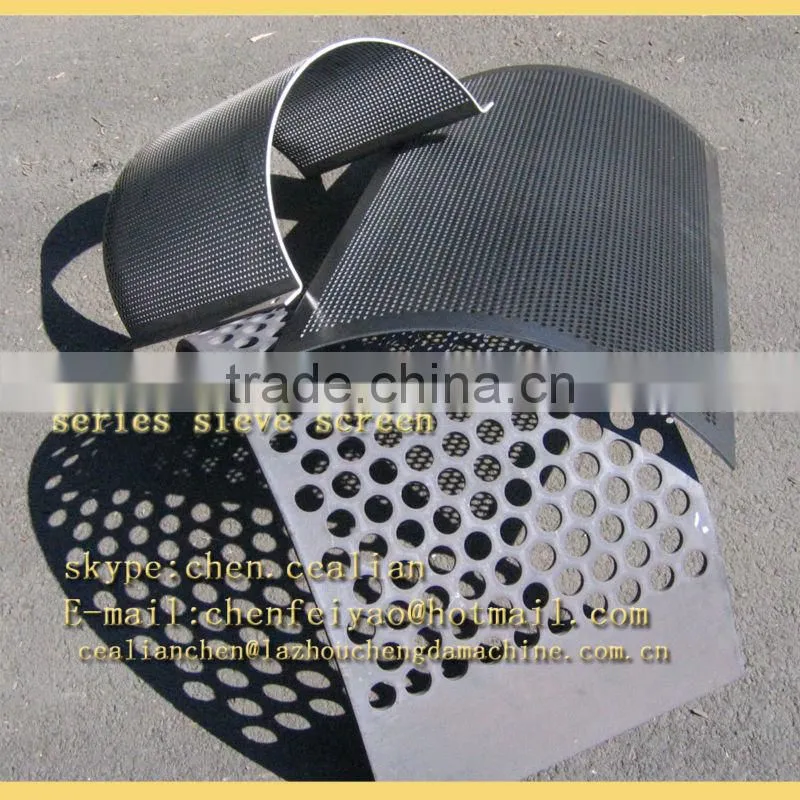

The Hummer Mill Cutter and Sieve
Wood hammer mills are able to crush both forestry and agricultural material, brittle and fibrous material, such as bamboo, stalk, grass and shrub. A screen with cutting edges is used to control the wood particle size. If the size is larger than screen, these material will be sent back to be grinded again until they can get though the screen. The size of the grinded material depend on the size of screen and the rotation speed .
Working processing

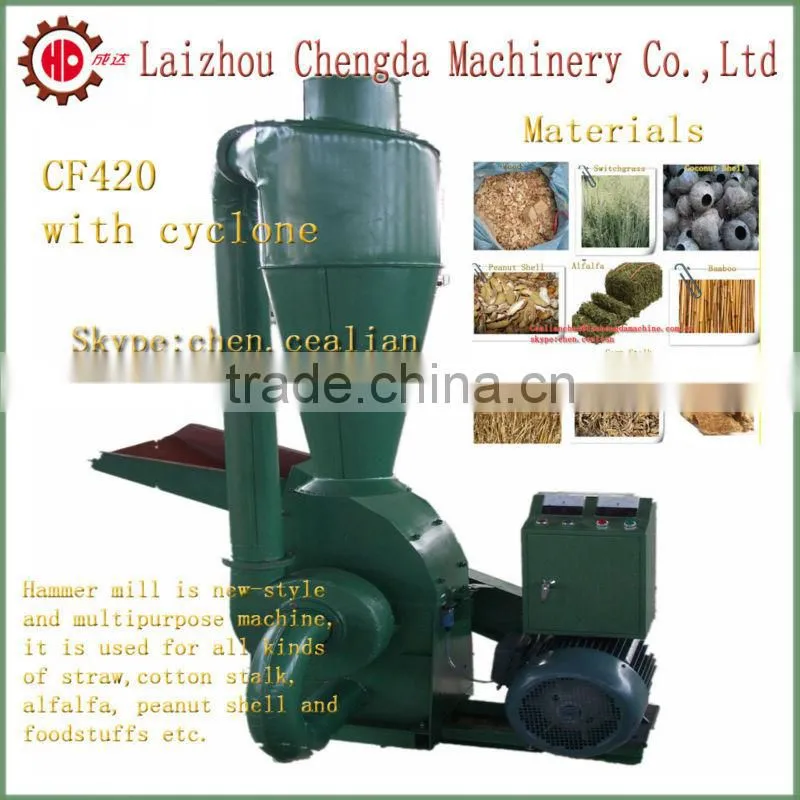

In actual production, a cyclone is always a necessary device in wood hammer mill. What’s the function of cyclones? How does it work? Does the cyclone really work?
Cyclonic separation is a method to remove wood particles from air steam though vortex separation without filters. In wood chips and sawdust collection, rotational effects and gravity are main ways to separate the mixed air flow. This method can be also used to separate fine droplets of liquid from a gaseous stream.
A high speed rotating airflow is established within a cylindrical or conical container called a cyclone. Airflow begins at the tops of cyclone and ends at the bottom, moving in a spiral way. Wood particles out from wood hammer mill are drew up into airflow starting separation procedure. Wood chips and sawdust in the rotating steam have much inertia to follow the moving airflow. They will strike the inner wall until falling to the bottom, waiting to be collected.
The main advantage of cyclones is to reduce the dust content in air to protect your lungs and breathing system. Pneumoconioses and black lung disease are all cause by long term exposure to dust. Please taking heath into consideration when purchasing a wood processing machines.
Kinds of materials

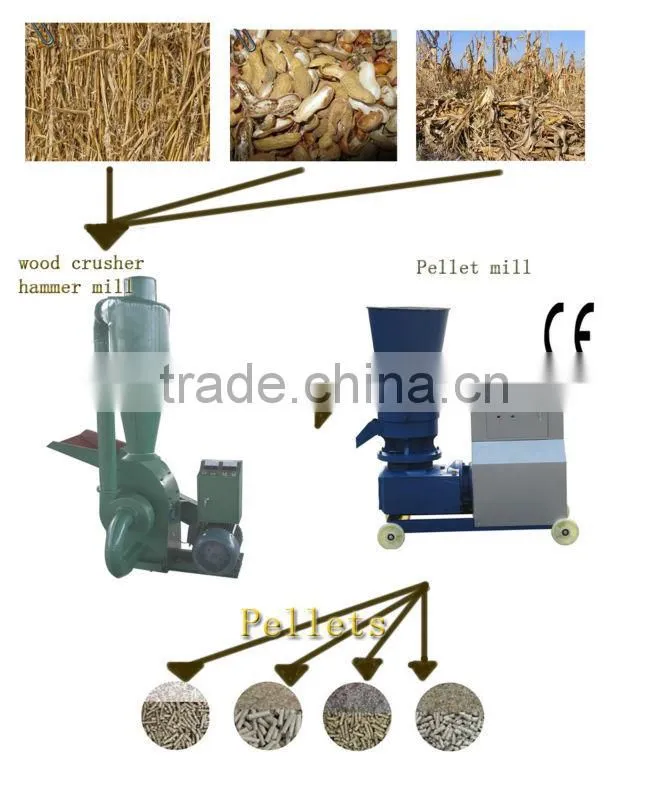

This wood hammer mill can be used in wood pellet production which can be used as animal bedding, heat fuel and fodder.
Our factory certification packaging and shipping
After-sale Service
After-sale service can ensure a smooth business once you buy a machine aboard. You can inevitably encounter some operation problems while making wood pellets. Amisy can offer you 12 months warranty for main parts to protect your interests and save your money.
TradeManager:cn1511227029
Skype: chen.cealian
TEL:15805353812
QQ:383342040
