Specifications
Low Break DownCE certification
Introduction to CF500 Electric Hammer Mill

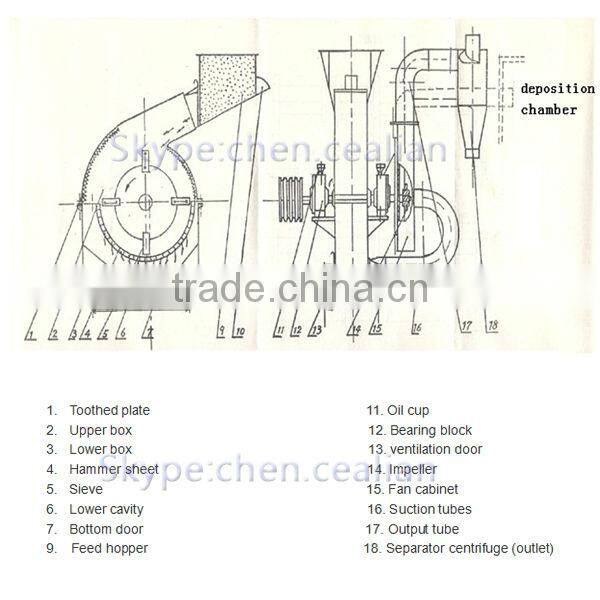

Functioning
The hammer mill is fixed with an engine with a power of RP-driven all kinds of different power. Its working principle is: after the raw materials were put into crushing chamber, the high-speed operated hammer sheets will impact the raw materials over and over again, then the raw materials will be crushed into pre-set size step-by-step. The sieve have the following size: 1.5mm, 2mm, 4mm and 6mm. Then the crushed materials will leak out from the sieve. The draught fan will convey the leaked materials into separator centrifuge, finally, the powder will be discharged down.
Key Features of CF500 Electric Hammer Mill
1. With capacity 800kg---1100kg/h, this hammer mill can satisfy a large production demand on a daily basis.
2. The ability to change screen size, and the option of a variable speed frequency drive control, enable processing a variety of materials using the same hammer mill.
3. Both coarse and fine grinding can be realized through adjusting the gap between hammers and screen.
4. The core part ---the hammer flake is scientifically designed to have two concussion parts, thus when one part is worn out, you can turn over to use the other part.
5. The angle of the screen can be 180° which allows for high throughput at lower power consumption.
6. Equipped with air blower, the crushed material can be directly collected and transported to next machine for further processing.
This CF500 hammer mill is newly developed machine which is endowed with many advantages compared to other kind of crushers such as simple construction, convenient operation, high efficiency, saving power consumption, and safe condition. It is suitable to crush raw and hard materials with big size such as tree branches, bamboo, wood scrap, wood brick,old cardboard and newspaper, straw, crop stalks and corn cobs and so on. After crushing, raw materials are uniform and with proper moisture content to meet further processing. With capacity 800-1100kg/h, it is can surely meet the production requirement in the farms, middle sized feeding factory or family.
How to change the sieve
Data of hammer mill
| Model No. | Power Electric Engine 50HZ | Wood output(kg/h) | N/G weight(kg) | Sieve screen size | Sieve screen specification | Packing Size(cm) |
| CF158 | 1 phase 2.2kw | 60-120 | 75/95 | 360*160mm | 1.5-10mm | 48*58*63 |
| CF158 | 3 phase 2.2kw | 60-120 | 75/95 | 360*160mm | 1.5-10mm | 48*58*63 |
| CF198 | 3 phase 4kw | 200-300 | 120/140 | 510*200mm | 2-10mm | 90*58*102 |
| CF198 | 7.5HP gasoline engine | 200-300 | 120/140 | 510*200mm | 2-10mm | 96*62*105 |
| CF420B | 3 phase 7.5kw | 200-400 | 260/320 | 680*280mm | 1.8-10mm | 112*82*107 |
| CF420C | 3 phase 11kw | 200-500 | 320/360 | 680*280mm | 2-10mm | 112*82*107 |
| CF420A | 15HP Diesel engine | 300-500 | 330/360 | 680*280mm | 1.8-10mm | 147*73*109 |
| CF420A | 22HP Diesel engine | 300-500 | 350/390 | 680*280mm | 1.8-10mm | 147*74*111 |
| CF500A | 55HP Diesel engine | 800-1100 | 800/840 | 820*390mm | 2-10mm | 150*142*123 |
| CF500B | 3 phase 22kw | 800-1100 | 600/630 | 820*390mm | 2-10mm | 124*97*106 |

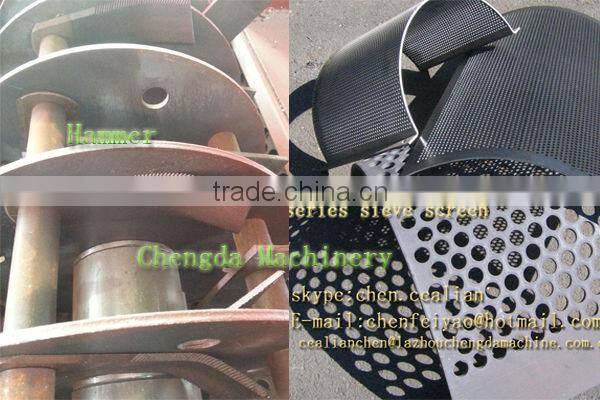

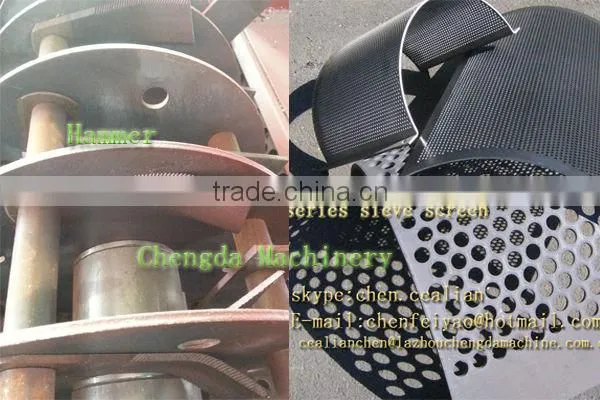

The Hummer Mill Cutter and Sieve
Wood hammer mills are able to crush both forestry and agricultural material, brittle and fibrous material, such as bamboo, stalk, grass and shrub. A screen with cutting edges is used to control the wood particle size. If the size is larger than screen, these material will be sent back to be grinded again until they can get though the screen. The size of the grinded material depend on the size of screen and the rotation speed .
CF series hammer mill with diesel engine
Advantages of Diesel Hammer Mill
1. Energy saving and high efficiency.
2. Both for processing biomass materials and grain products, so this hammer mill can be used for making wood pellets and animal feed pellets.
3. The hammer mill may powered with 2 electrodes motor that is driven by four B-type belt.
4. For processing biomass products, the max material diameter can be up to 50 mm, the final products is just meeting pelletizing requirement.
5. The screen sizes can be offered as per your request.

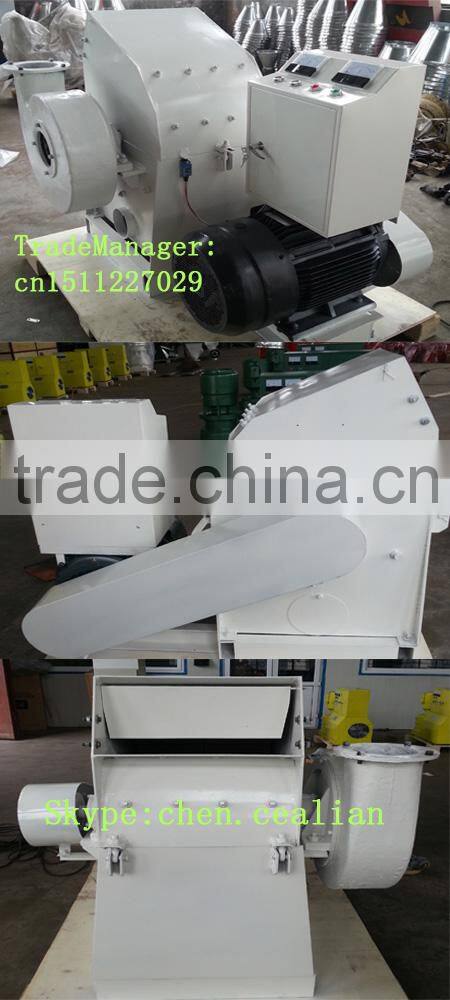

CF series hammer mill with e-motor
We specially designed the hammer mill for biomass pllet processing e.g. wood chips paddy straw, sunflower stalk, forestry waste and many other wastes or solid powder material canbe processed.For small wood logs,we supply a machine that can chip the wood and crushing the machine only by one machine.

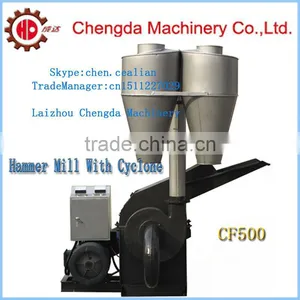

In actual production, a cyclone is always a necessary device in wood hammer mill. What’s the function of cyclones? How does it work? Does the cyclone really work?
Cyclonic separation is a method to remove wood particles from air steam though vortex separation without filters. In wood chips and sawdust collection, rotational effects and gravity are main ways to separate the mixed air flow. This method can be also used to separate fine droplets of liquid from a gaseous stream.
A high speed rotating airflow is established within a cylindrical or conical container called a cyclone. Airflow begins at the tops of cyclone and ends at the bottom, moving in a spiral way. Wood particles out from wood hammer mill are drew up into airflow starting separation procedure. Wood chips and sawdust in the rotating steam have much inertia to follow the moving airflow. They will strike the inner wall until falling to the bottom, waiting to be collected.
The main advantage of cyclones is to reduce the dust content in air to protect your lungs and breathing system. Pneumoconioses and black lung disease are all cause by long term exposure to dust. Please taking heath into consideration when purchasing a wood processing machines.
Ready to exported
Kinds of materials
This wood hammer mill can be used in wood pellet production which can be used as animal bedding, heat fuel and fodder.
Our factory certification packaging and shipping
After-sale Service
After-sale service can ensure a smooth business once you buy a machine aboard. You can inevitably encounter some operation problems while making wood pellets. We can offer you 12 months warranty for main parts to protect your interests and save your money.
