Outdoor Use PTO Beech Wood Sawdust Pellet Machine Without Motor

Outdoor Use PTO Beech Wood Sawdust Pellet Machine Without Motor photo-1
Outdoor Use PTO Beech Wood Sawdust Pellet Machine Without Motor photo-2
Outdoor Use PTO Beech Wood Sawdust Pellet Machine Without Motor photo-3
Outdoor Use PTO Beech Wood Sawdust Pellet Machine Without Motor photo-4
Outdoor Use PTO Beech Wood Sawdust Pellet Machine Without Motor photo-5
Outdoor Use PTO Beech Wood Sawdust Pellet Machine Without Motor photo-6
US$ 350 - 1,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
Chengda
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name Chengda
Model Number KL200B
Voltage 380V/220V 3phase 50HZ
Power(W) 7.5kw/2.2kw
Dimension(L*W*H) 145*62*115cm
Weight 230kg
Certification CE ISO9001
Warranty 1 year
After-sales Service Provided Overseas service center available



Product Description





Wood & Feed Pellet Press Machine

1.This series machine can be powered by electric, diesel engine or tractor(PTO);

2.We adopt the new design of direct connection of motor shaft and he main shaft that

overcome the loose defect of belt connecting as long time using;

3.High accuracy gearbox and high output;

4.It is widely used in large,middle, small scale aquatic. food and feed processing factory,

livestock farm, poultry farm, individual raisers, middle and small farm;

5.International advance steam fittings and imported pressure reduction valve;

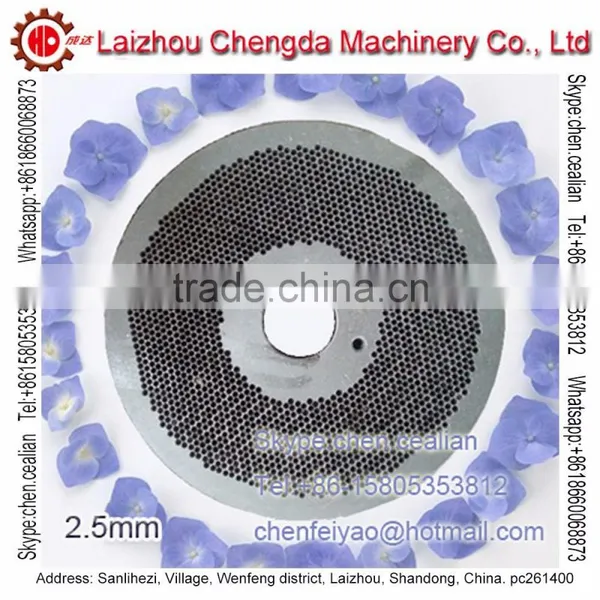

6.Flat die is made with international advanced equipment for long lifespan;

7.Drive with heavy duty gearbox, which can produce continuously in most adverse condition.

outdoor use PTO beech wood sawdust pellet machine without motoroutdoor use PTO beech wood sawdust pellet machine without motor

1) The pressure is larger and adjustable. So it can make more type of pellets such as sawdust, rice husk, straw, cottonseed husk, weeds and all kinds of crop straw and plant waste.

2) Low energy consumption and easy operation. which is especially suitable for small farms in the area of shortage of electricity.

3)Small and lightweight, making small-scale production possible.





 KL-Pseries Pellet Mill



outdoor use PTO beech wood sawdust pellet machine without motor



Model No.Match powerFeed output Wood outputN/G weight(kg)Pellet diameterPacking Size(cm)
KL120P 6-10HP60-10040-6080/100kg2.5-10mm75*35*65
KL150P 6-12HP90-12050-9095/115kg2.5-10mm75*35*65
KL200P 10-18HP400-600220-230150/220kg2.5-10mm123*53*107
KL230P 18-28HP600-800290-320150/220kg2.5-10mm128*60*105
KL260P 28-45HP700-900300-360150/220kg2.5-10mm134*58*106
KL300P 45-55HP900-1100400-550150/220kg2.5-10mm152*60*115
KL360P 50-60HP200-300110-140470/550kg2.5-10mm100*46*95
KL400P 50-70HP300-400150-190630/660kg2.5-10mm114*48*105
outdoor use PTO beech wood sawdust pellet machine without motor







What could I do if the pellet mill can't produce pellets?

outdoor use PTO beech wood sawdust pellet machine without motorA: New flat die pellet mill in first use may not produce pellets, because of the low smoothness of mould and bad cooperation in new devices. After using oily material for a period, the pellet machine can run smoothly.

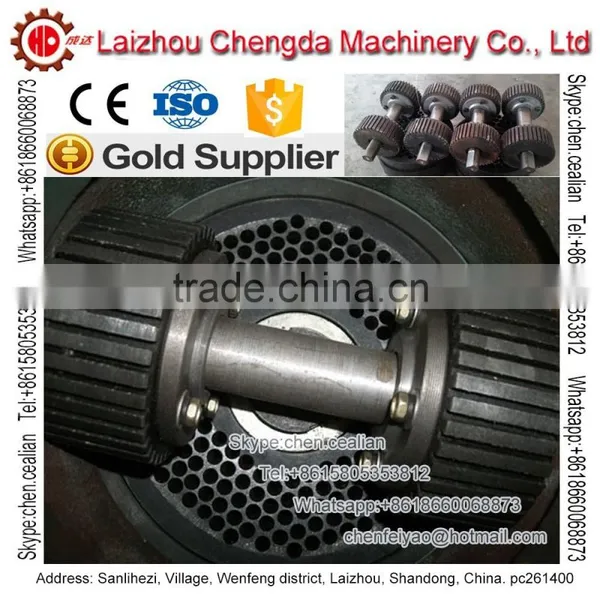

B: The clearance between rollers and dies is too large. You can tighten the screw to narrow the gap to 1.5-2.5 mm.



C: Necessary steps to update a new die or roller shell because of wear and tear caused by long-term service.



D: The material is too wet or too dry, resulting in low productivity. You’d better increase or decrease the moisture to proper rate, generally 13%-16% in raw material.



Pellets as animal feed

♦ Feed pellet machine is mainly used for producing animal feed pellets. Corn, bean pulp, straw, grass, rice husk, alfalfa, wheat stalk, etc.

0.8-8mm diameter die very suitable to make animal feed pellets.

The length can adjust according to your need.

outdoor use PTO beech wood sawdust pellet machine without motor



For animal feed: The suitable raw materials for making feed pellets are corn stalk, peanut shells, maize straw and other farm wastes. Pellets made by the flat die pellet mill as animal feed can be stored for a long time. It can shorten the period of feeding, so it can efficiently guarantee many users' productive cost. Feed pellets are mainly supplied to cattle, chicken, pig, pets and other animals.



♦ Feed pellet machine is mainly used for producing animal feed pellets. Corn, bean pulp, straw, grass, rice husk, alfalfa, wheat stalk, etc.



♦2.5-10mm diameter die very suitable to make animal feed pellets.



♦The length can adjust according to your need.



♦Moisture content: The moisture content should be about 12%-20%, that is to say, the minimum moisture content is not less than 12% and the maximal moisture content is not more than 20%, or you will not get high quality pellets.

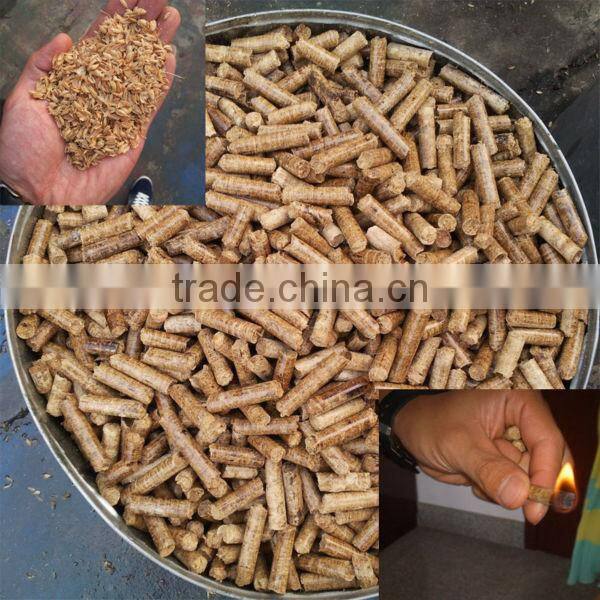

 Pellets as fuel

Wood pellet machine is specially used for producing wood pellets, a new environmental fuel ioutdoor use PTO beech wood sawdust pellet machine without motornstead of the coal and oil.The raw material is wide and usually make use of the waste .  such as sawdust, wood shavings, wood chips, wood logs, straw, rice husk, cotton stalk, peanut shell, bamboo, empty fruit branches, roseamary waste, other plant wastes etc.



 Home pellet stove is widely used in Europe and many other places in the world. It is an environment-friendly method to keep warm and cook. Pellet stove uses less natural resources as its fuel is generated from waste or recycled materials. The fuel it used can be made at home. Here are a few tips for you to spend less money making the stove fuel if you choose a pellet stove for heating.

You have to prepare raw materials along with a flat die pellet mill which is

press the materials into the needed fuel for home. There are a wide variety of raw materials that you can use to make the fuel, such as fruit pits, different types of grass, corn cobs, barley star, shelled corn, wheat, paper, etc. Your choice of materials decides the heating or cooking effect, thus you need to look up the kind of stove to properly match the pellet fuel.




outdoor use PTO beech wood sawdust pellet machine without motor



Packaging & Shipping



Packing and Shipping

To make sure the machine delivery to you at the best condition, we adopt the considerate way to protect the equipment very well. We consider our products just as our children.



outdoor use PTO beech wood sawdust pellet machine without motor

outdoor use PTO beech wood sawdust pellet machine without motor









Certification



CE Certification

outdoor use PTO beech wood sawdust pellet machine without motor

outdoor use PTO beech wood sawdust pellet machine without motor





FAQ





Payment method.

We support kinds of payment methods, T/T, trade assurance, Western Union, Paypal etc.



1. How to order?
After you decide to purchase, we will send you proforma invoice with our bank information,

bring this PI to the bank, and ask to make T/T for the deposit. For single set, your machine can be ready within 7-10 working days after we getting the deposit, we will send to the port and deliver to you by sea.

-In case for more handling charges, you can transfer 100% of the payment, we can arrange the products and shipping under your allowance.

2. Related products?
PTO type, diesel type, electric type.
3. Can i order 1 set for sample?
Yes, Sample acceptable, You can test the quality of sample.
4. How do we visit you and your factory?

First of all, welcome you or any appointed agent to visit and inspect our factory.

You can fly to Shanghai airport, then come from Shanghai railway station to  weifang city.

You can fly to Qingdao airport, then we can pich you up there.

We can pick up you at Qingdao airport or Weifang railway station.

Please kindly let us know your schedule in details, so we can arrange everything for you.

5. Why you choose us?

As manufacturer, our products have excellent quality and competitive price.

Good after-sale services and 12 months warranty are visible.

Strictly testing and checking before shipping.

25 years experience in manufacturing and 10 years exporting experience.

Doing OEM for many famous brand.











Our Services





Online Service

  As 7/24 email and phone call service is available, I am ready to answer your any specific questions regarding to our machinery and pellet mill in particular. In addition, we prepare the teaching videos in terms of installation, lubrication, trial running, parts replacements and so forth.
