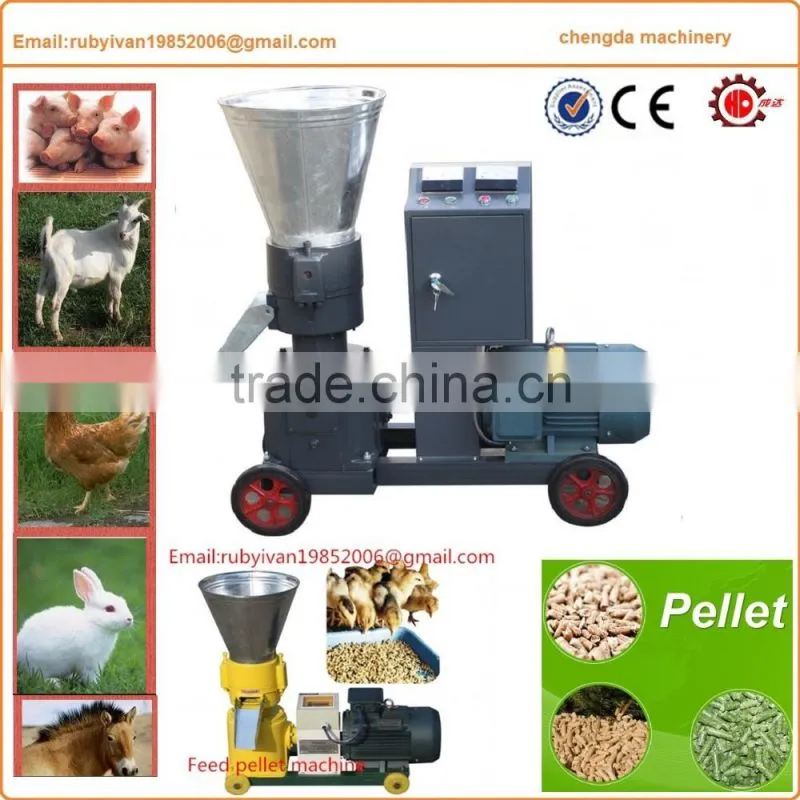

Help CenterFeed Processing Machines Cattle Chicken Rabbit Animal Feed Pellet Machine Price
Related Products
-
Cheapest Feed Pellet Mill,cow Feed Mill, Sheep Feed Pellet MillUS$ 450 - 650MOQ: 10 Sets -
Low Consumption Wood Pellets Machine Gasoline With CE, KL120A KL150AUS$ 450 - 720MOQ: 1 Set
-
Low Consumption Feed Pellets Machine Gasoline With CE, KL120A KL150AUS$ 450 - 720MOQ: 1 Set
-
Low Consumption Wood Pellets Machine Diesel With CE, KL120A KL150AUS$ 450 - 650MOQ: 1 Set
-
Low Consumption Feed Pellets Machine Diesel With CE, KL120A KL150AUS$ 450 - 650MOQ: 1 Set
Poultry feed mill Application
Because such feed pellet mill works on the base of the friction and pressure between the roller and the mounted die,flat die feed pellet machine is also known as flat die pellet press. Flat die feed pellet press are the simplest design of animal feed pelletizer, this kind of manure pellet machine had been originally applied mainly in the animal feed market,which was the situation up to the 1970's, Flat die pellet equipment works on a vertical design, using gravity as the main force for feeding the material through the machine. Flat die feed pellet mill have a horizontal die, with a series of rollers sitting on the die. When material goes in from the top feed inlet, it is compressed between the rollers and die.
Generally,There are two different designs of flat die feed pellet mill, with two key differences. One design of feed pelletizer have a rotating die with a mounted roller shaft, and others have a mounted die with a rotating roller shaft. The second design is becoming more and more popular for larger fertilizer pelletizer. In general however due to their simple design and lighter weight, flat die pelletizer are normally used in small scale pellet production
Technical Parameters of small poultry feed mill
Model No. |
Power(E-motor) 50HZ |
Feed output |
Wood output |
N/G weight(kg) |
Pellet diameter |
Packing Size(cm) |
KL120B |
2.2kw220v 1phase |
30-60 |
20-30 |
80/100 |
2.5-10mm |
75*32*62 |
KL120B |
3kw 380v 3phase |
50-100 |
30-50 |
80/100 |
2.5-10mm |
75*32*62 |
KL150B |
4kw 380v 3phase |
100-200 |
50-100 |
95/115 |
2.5-10mm |
77*34*68 |
KL200B |
7.5kw 380v 3phase |
200-300 |
110-140 |
200/230 |
2.5-10mm |
100*43*95 |
KL230B |
11kw 380v 3phase |
300-400 |
150-190 |
290/320 |
2.5-10mm |
114*47*97 |
KL260B |
15kw 380v 3phase |
400-600 |
220-280 |
330/360 |
2.5-10mm |
120*52*107 |
KL300B |
22kw 380v 3phase |
600-800 |
280-320 |
410/450 |
2.5-10mm |
127*52*107 |
Main Advangtage of poultry feed mill equipment
1. Simple structure.
2. Easy to clean and maintain.
3. Spare parts are also easy to change, less cost for rollers and dies.
4. Simple operating, just 1 or 2 workers are OK.
5. The sort of pelletizer is easier to clean than the ring die pellet machine
5. Be able to change new die and rollers faster to save time to produce pellets.
6. Small and light weight, which can be used in home,small farm,and light industrial.
7. Visibility to viewing the material during pelleting is the best way to fix problems
Packing condition.
If you have any question you can send Email to me or call me
