Top Seller Small Concrete Mixer Price/JS500 Mixer for Construction

Top Seller Small Concrete Mixer Price/JS500 Mixer for Construction photo-1

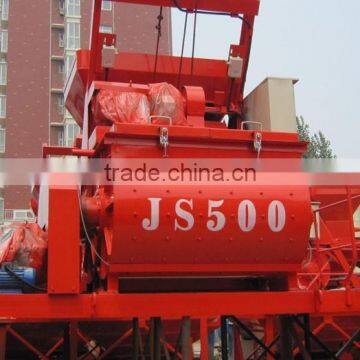

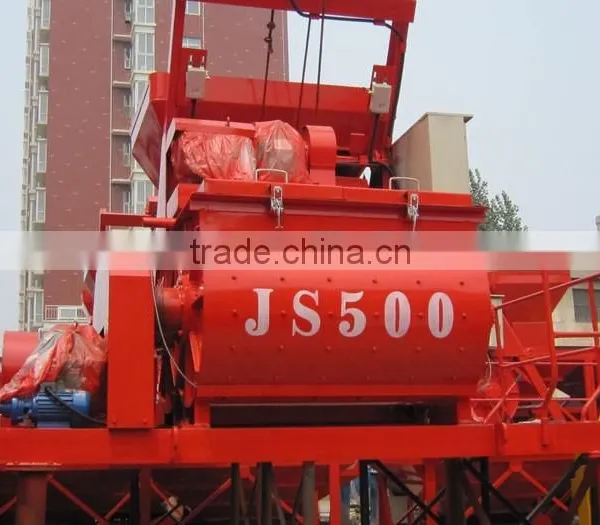

Top Seller Small Concrete Mixer Price/JS500 Mixer for Construction photo-2

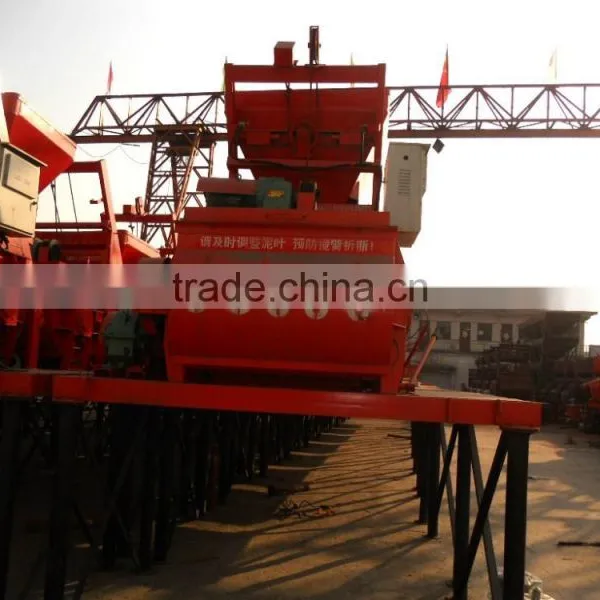

Top Seller Small Concrete Mixer Price/JS500 Mixer for Construction photo-3

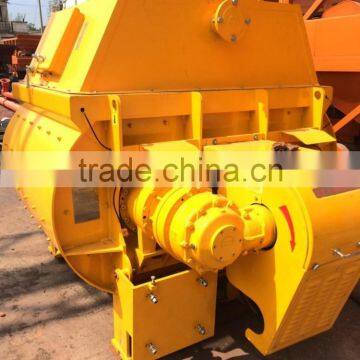

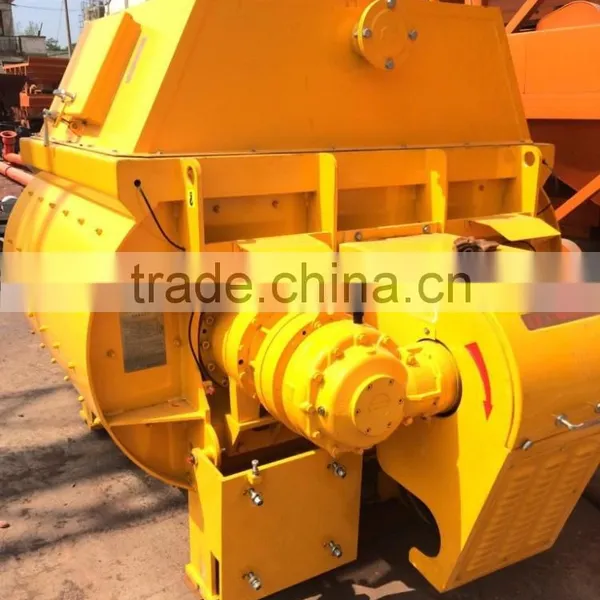

Top Seller Small Concrete Mixer Price/JS500 Mixer for Construction photo-4

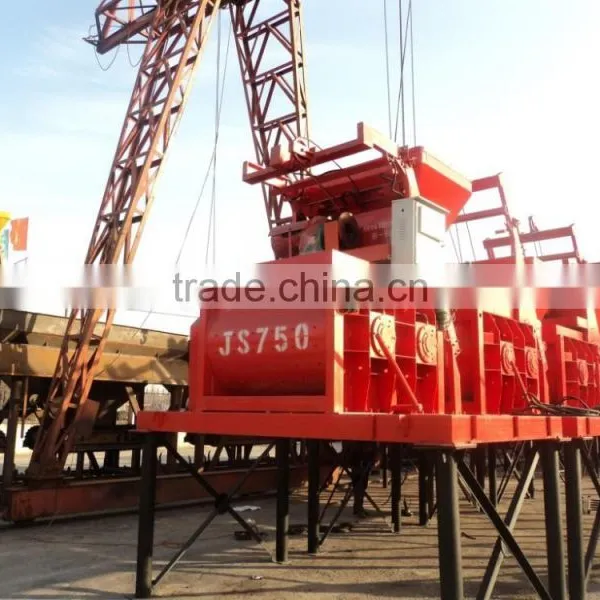

Top Seller Small Concrete Mixer Price/JS500 Mixer for Construction photo-5
US$ 5,000 - 30,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Glory
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name Glory
Model Number JS500
Mixing Power 18.5KW
Charging Capacity 800l
Reclaiming capacity 500l
Speed of Mixing Drum 35r/min
Water Supply Mode water pump
Working Cycle Period 72s
Discharge Way automatic
Outline Dimension 3050*2300*2680mm
After-sales Service Provided Engineers available to service machinery overseas

  Top seller small concrete mixer price/JS500 mixer for construction



Different models of small concrete mixer price:



Name

small concrete mixer price

Model

JS500

JS750

JS1000

Discharge volume (L)

500L

750

1000

Charging volume (L)

800L

1200

1600

Theoretical capacity (m3/h)

≥25

≥35

≥60

Maximum aggregate grain size (mm)

80/60

80/60

80/80

Working circle(s)

72

72

60

Speed of hopper upgrade (m/min)

18

18

18

Mixing blade

Speed(r/min)

35

31

23

Quantity

2×7

2×7

2×10

Mixing motor

Model

Y180M-4

Y200L-4

Y280S-4

Power(kw)

18.5

30

37X2

Lifting motor

Model

YEZ132S-4-B5

YEZ132M-4-B5

YEJ180L-4

Power(kw)

5.5

7.5

22

Water pump motor

Model

50DWB20-8A

65DW35-5

CK65/20L

Power(kw)

0.75

1.1

4

Dimensions

(L x W x H)mm

Transport dimension(mm)

3050*2300*2680

3650*2600*2890

5860*2250*2735

Working condition dimension(mm)

4461*3050*5225

4951*3650*6225

10720*3870*10726

Height of unloading(mm)

1500

1600

3800

Weight(kg)

4000

5500

15000

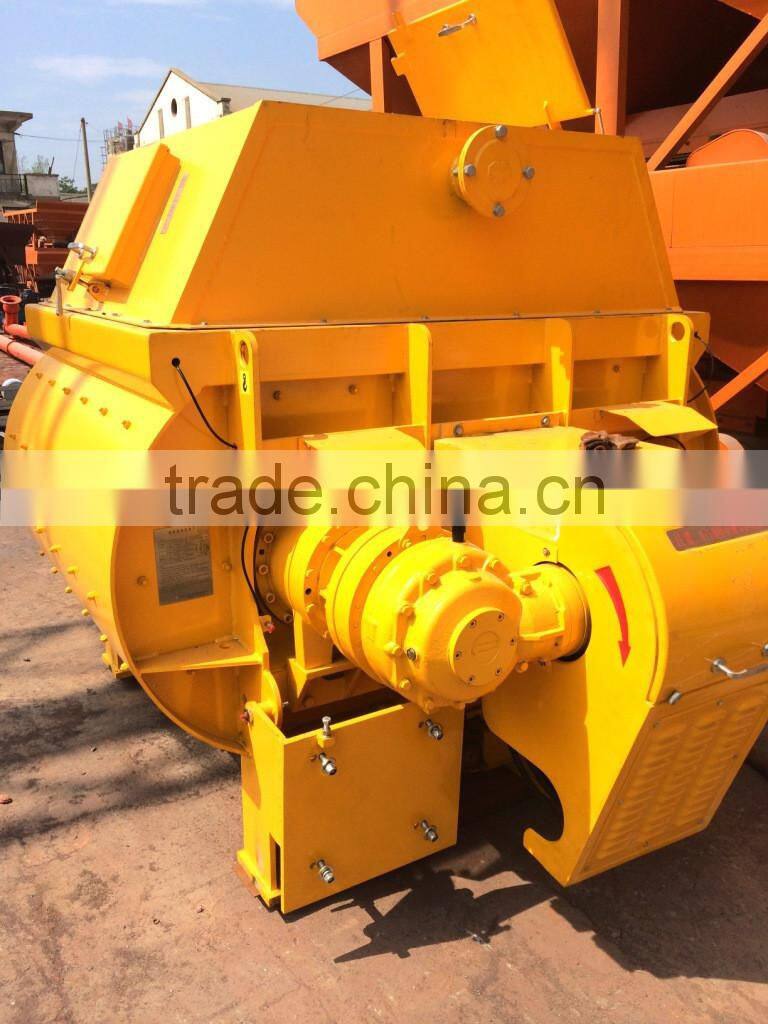

Top seller small concrete mixer price/JS500 mixer for construction

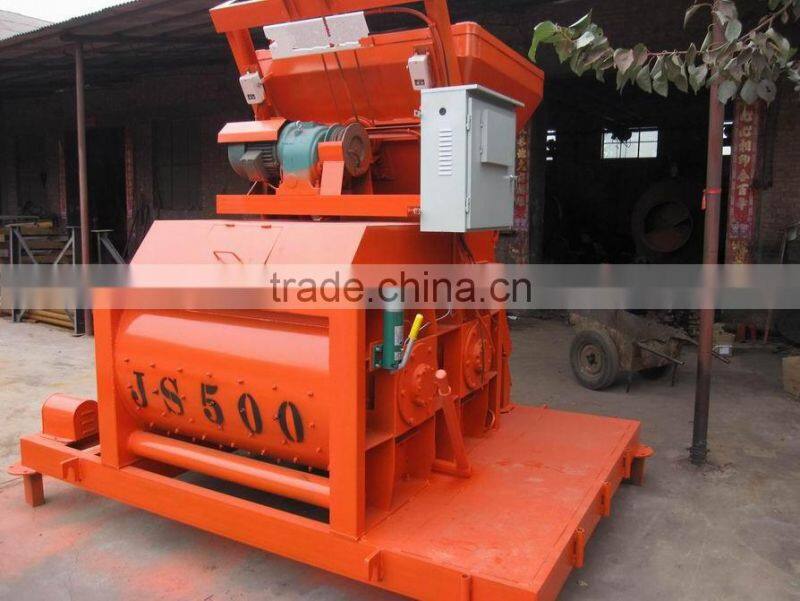

 Top seller small concrete mixer price/JS500 mixer for construction

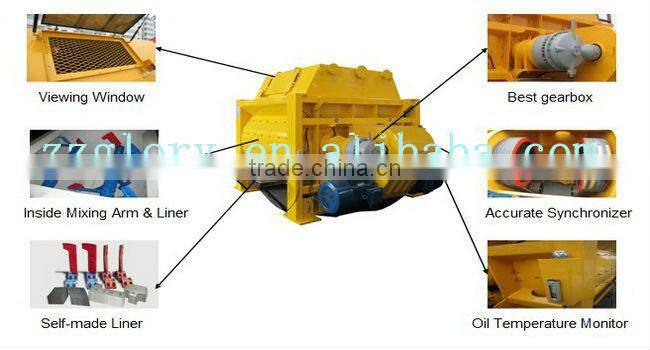

Details of small concrete mixer price:



Top seller small concrete mixer price/JS500 mixer for construction



Working principle of small concrete mixer price:

After electrify, the main raw material through the hopper, into the internal mixer, two stirring shaft by the motor reducer drive, in the opposite direction of rotation of the mixing work, make sufficient raw materials mixing.

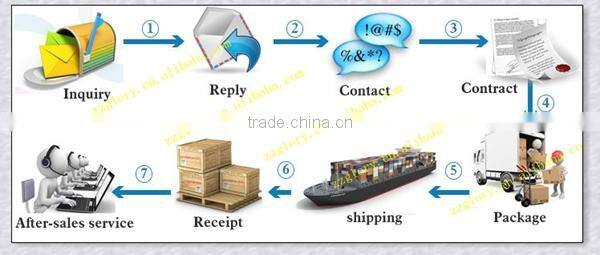

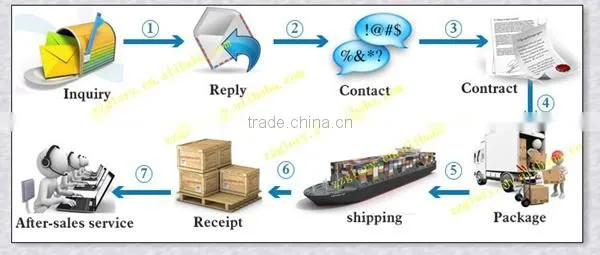

How to get this small concrete mixer price:



Top seller small concrete mixer price/JS500 mixer for construction

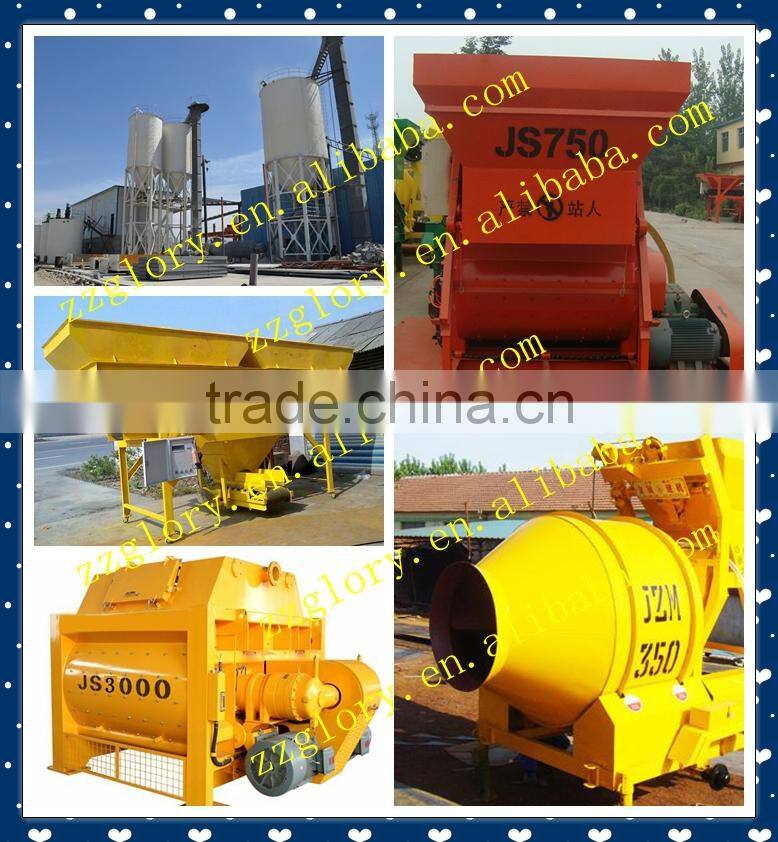

Hot seling products:



Top seller small concrete mixer price/JS500 mixer for construction



Any question about this small concrete mixer price, please feel free to ask us:



Top seller small concrete mixer price/JS500 mixer for construction
